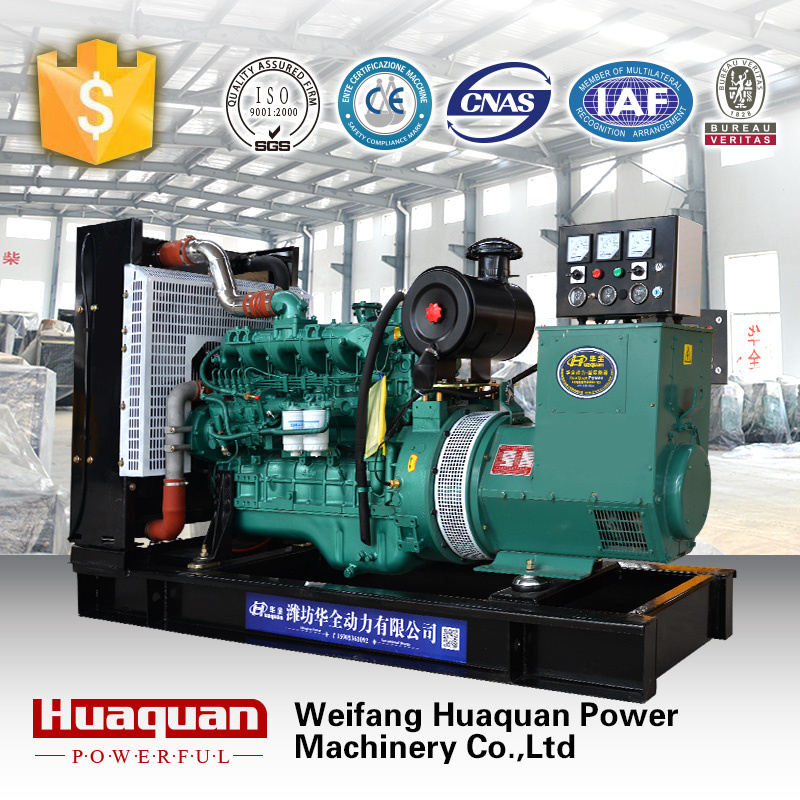

100kw Pure Copper Alternator Electric Generator

Prod Model:	HQ100GF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colour:	Green
Engine Brand:	Yuchai
Alternator Brand:	Xn Stamford
Starting Method:	Electric Start
Type:	Basic Diesel Generator
Installation Method:	Fixed
Stroke:	Four Stroke
Cooling Method:	Water Cooling
Output Type:	AC Three Phase

Product Description

100kw pure copper alternator electric generator
Professional diesel generator manufacturer supply 20kw-850kw Yuchai diesel generator
Yuchai diesel generator has established five major applications to gun for the industrial engine market:
Engine for land-based gen-sets
Engine for marine gen-sets
Engine for air compressors
Engine for pumps
Other industrial engines

Yuchai Series engine and alternator:

Diesel engine: With the small volume, light weight and height reliability, the engine can runs more than 10000 hours. Yuchai engine has advantages of fuel-efficient, high reliability, small exhaust and low fuel consumption.
2. Alternator: Stamford, Faraday, Marathon, Leroy-somer, or other Chinese brand brushless and brush alternators are optional.

Standard Configuration of Yuchai engine generators:
1. Yuchai diesel engine.
2. Alternator: 100% pure copper wires, rotation magnet, different brands according to your request.
3. Standard control panel, LCD panel or mechanical panel.
4. Water tank, with protection guard.
5. Shock absorber system: protect the generator during its working period.
6. Maintenance-free start battery.
7. Battery connecting cables
8. Maintenance manuals of engine, alternator and generator.
9. Maintenance tools.
10. Standard steel underframe with stoving varnish.
11. Standard export plywood package.
12. Spare parts for maintenance (as your require)
Yuchai series generator working conditions:

Yuchai generator can be used continuously every day, and with electronic governor make little change of rotate speed and stable operation.
Application area: widely used for shop, hospital, high-way, station, construction, farm, etc.
3. Maintenance: The overhaul period is over 10000 hours; and it will reduce the fault rate and extend the lifetime of the unit.
4. Above suggestions are based on our experience and are intended only as reference.
Yuchai diesel generator details:

Model	Diesel Generator		Diesel Engine		Alternator		Size L×H×W (mm)	Weight(KG)
	Prime Power (KW/KVA)	Max Power (KW/KVA)	Model	Power (KW)	Model	Power (KW/KVA)
HQY20GF	20/25	22/28	YC4F40-D20	24	PI144E	20/25	1800×760×1430	800
HQY22GF	22/28	24/30	YC4F40-D20	24	PI144F	22/28	1800×760×1430	830
HQY24GF	24/30	26/33	YC4F40-D20	24	PI144G	24/30	1800×760×1430	846
HQY30GF	30/37.5	33/41.25	YC4115ZD	30	PI144H	30/37.5	1800×760×1430	880
HQY32GF	32/40	35/44	YC4D60-21	40	PI144J	32/40	1800×760×1430	896
HQY34GF	34/43	37/47	YC4D60-21	36	PI144K	34/43	1800×760×1430	906
HQY40GF	40/50	44/55	YC4D60-21	40	UCI224D	40/50	1900×760×1430	1030
HQY48GF	48/60	53/66	YC4D85Z-D20	50	UCI224E	48/60	1900×760×1430	1050
HQY58GF	58/73	64/80	YC4D90Z-D20	60	UCI224F	58/73	2150×830×1496	1215
HQY68GF	68/85	74/94	YC4A100Z-D20	70	UCI224G	68/85	2150×830×1496	1255
HQY80GF	80/100	88/110	YC6B135Z-D20	90	UCI274C	80/100	2150×830×1496	1300
HQY96GF	96/120	106/132	YC6B155L-D21	103	UCI274D	96/120	2150×830×1496	1335
HQY112GF	112/140	123/154	YC6B180L-D20	120	UCI274E	112/140	2150×830×1496	1425
HQY128GF	128/160	141/176	YC6A200L-D20	130	UCI274F	128/160	2450×850×1516	1695
HQY144GF	144/180	158/198	YC6230L-D20	150	UCI274G	144/180	2450×850×1516	1815
HQY160GF	160/200	176/220	YC6G245L-20	165	UCI274H	160/200	2540×945×1550	1874
HQY184GF	184/230	202/253	YC6M350L-D20	235	UCI274J	184/230	2540×945×1550	2020
HQY200GF	200/250	220/275	YC6M350L-D20	235	JCI274K	200/250	2540×945×1550	2080
HQY240GF	240/300	264/330	YC6MJ480L-D20	281	HCI444D	240/300	3150×1120×1630	2970
HQY260GF	260/325	286/358	YC6MJ480L-D20	281	HCE444ES	260/325	3100×1100×1635	3198
HQY280GF	280/350	308/385	YC6T550L-D21	368	HCI444E	280/350	3100×1100×1635	3198
HQY304GF	304/380	334/418	YC6T550L-D21	368	HCI444FS	304/380	3250×1190×1700	3200
HQY320GF	320/400	352/440	YC6T550L-D21	368	HCI444F	320/400	3300×1150×1700	3260
HQY350GF	350/437.5	385/481	YC6T550L-D21	368	HC544CF	350/437.5	3300×1150×1700	3260
HQY400GF	400/500	440/550	YC6T600L-D20	401	HCI544C	400/500	3500×1375×1980	3950
HQY450GF	450/563	495/619	YC6T700L-D20	468	HCI544D	450/563	3700×1750×2030	4200
HQY500GF	500/625	550/688	YC6T780L-D20	520	HCI544FS	500/625	3700×1750×2030	4200
