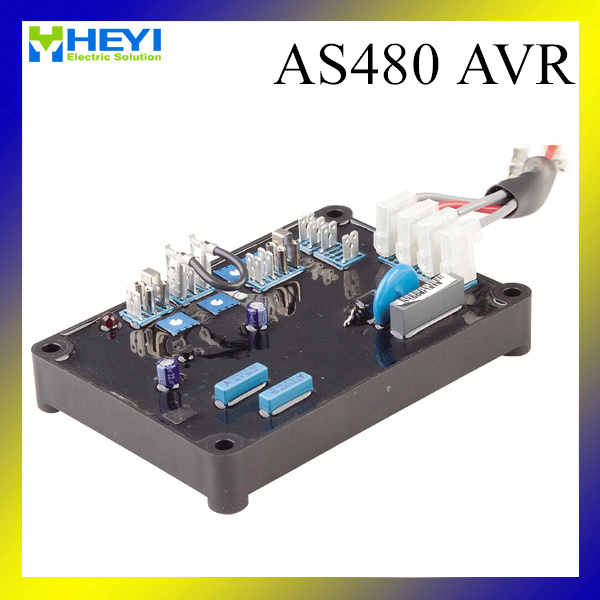

AS480 DIESEL GENERATOR AVR Power stabilizer AVR for Stamford PI PO series
Power stabilizer AVR AS480 for Stamford PI PO series is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%
Data Sheet
Power stabilizer AVR AS480 for Stamford PI PO series
Sensing Input | Voltage | 100-264 V ac 1 phase |
Frequency | 50-60 Hz nominal |
Output | Voltage | 82 V d.c. @ 200 Va.c power input; 45 V d.c. @ 110 Va.c power input. |
Current | continuous 5A , transient 7.5A for 10 secs. |
Resistance | 15 ohms minimum |
Regulation | +/- 1% |
Thermal Drift | 0.03% per Deg. C change in AVR ambient |
Typical system response | AVR response | 20ms |
Filed current to 90% | 80 ms |
Machine Volts to 97% | 300ms |
External voltage adjustment | +/-10% with 1 k ohm 1 watt trimmer; Increasing resistance lowers voltage; Fixed 15kOhm resistor enables 110V sensing |
Under frequency protection | Set point: 94 -98% Hz |
Unit power dissipation | 12 watts maximum |
Build up voltage | 4 Volts @ AVR terminals |
QUADRATURE DROOP INPUT | 10 ohms burden |
Max. sensitivity: 0.07 A for 5% droop 0PF |
Max. input: 0.33 A |
Over Excitation Protection | Set poit | 67 Vdc +/-3% (fixed |
Time Delay | 10-15 seconds (fixed) |
Environmental | Vibration | 20-100 Hz,50mm/se |
100Hz - 2kHz, 3.3g |
Operating temperature | -40 to +70 Deg. C |
Relative Humidity 0-70 Deg. C | 95% |
Storage temperature | -55 to +80 Deg. C |
