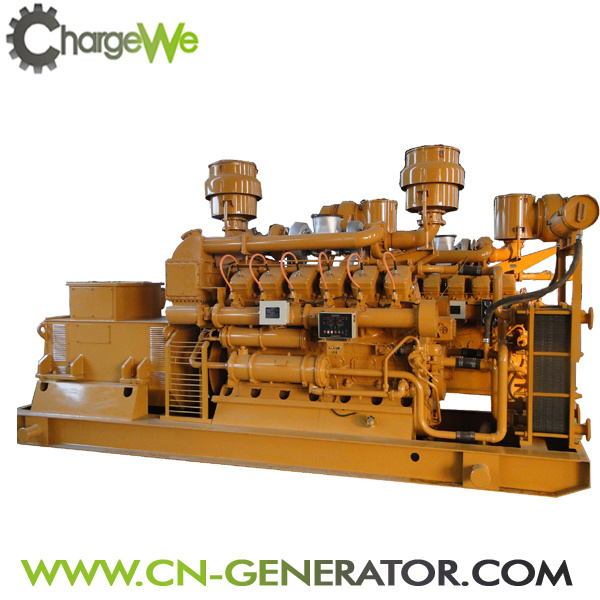

600KW GAS GENERATOR 1) Low gas consumption
2) Our engineer will install gas generator on your site.

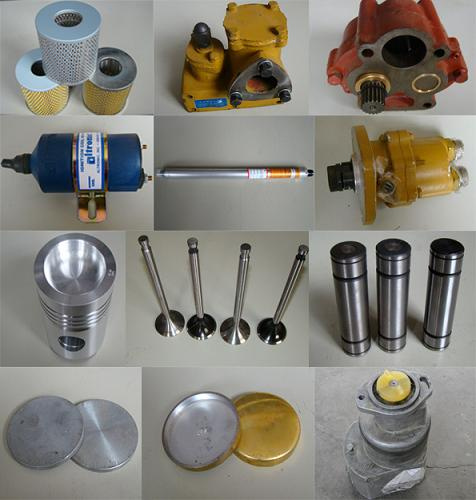

3) We supply you spare parts during the whole service life.
TECHNICAL PARAMETER OF NATURAL GAS GENSET
Genset No. | CW-600GFT |
Engine No. | 12V190ZLT |
Type | outside |
Rated power | 600kw |
Prime power | 500kw |
Rated voltage | 400V/230V |
Phase | 3P4W |
Rated frequency | 50Hz |
Rated speed | 1000r/min |
Rated power factor | 0.8 |
Rated current | 1020A |
Frequency volatility rate | ≤0.5% |
Voltage regulation range | 95-105% |
Heat consumption | ≤11.5mj/kw.h |
Lubricant consumption | ≤1.5g/kw.h |
Gas Pressure | 80-200kpa |
Cylinder No. | 12-V |
Cylinder diameter | 190mm |
Stroke | 210mm |
Compression ratio | 8:1 |
Start mode | 24V electric motor |
Overhaul | ≥25000h |
Noise | ≤105dB(A) |
Intake mode | Supercharging, inter cooled |
Sparking mode | Spark plug |
Voltage regulation mode | automatic |
Speed regulation mode | Electronic speed regulation |
Lubrication mode | Pressure and splash |
Cooled mode | Circulating water cooled |
Exhaust temperature | ≤650ºC |
Displacement | 71.45L |
Size | 6000×1970×2735 |
SUPPLY SCOPE OF GAS GENERATOR
a)Gas engine with all accessories
b) Alternator
c) Commen base
d) Fan and water tank cooling system
e) Flange connector
f) 12 / 24V starting motor and charging dynamo
g) Air filter, oil filter
h) On-board control panel
i) Circuit breaker
j) Batteries and connecting wire
k) Set shock absorber
l) High-efficient silencer
CE/ISO
Shandong Chaiwei Power Equipment Co., Ltd is a comprehensive high-tech enterprises in China with more than 15 years experiences, focusing on new type of environmental protection generators' development production and sale. We have our own brand "CHARGEWE" generator set, including diesel generator set, biogas generator set, nature gas generator set, biomass generator set, coal gas generator set etc. From 20kw to 1000kw with CE & ISO9001: 2008 certificate, Besides we also offer the diesel engine and spare parts for gas/diesel generator set. Our products have been exported to Middle East, South America, Southeast Asia, Russia, Eastern Europe and have got a high reputation on the domestic and overseas market.
About the products, we have self-developed team to design and improve the generator sets to meet different customers` need. So the OEM and ODM are available. We have completed quality inspection system to make sure each product that customer get is perfect, and the professional after-sale team to guarantee your generator set be correctly installed and running normally. CHARGEWE will bring best products and service with most reasonable price for you. From the foundation of our company, we committed to leading as pioneer of the generator industry and contributing ourselves for China's electricity industry. We believe CHARGEWE will be your best partner in generator area.
