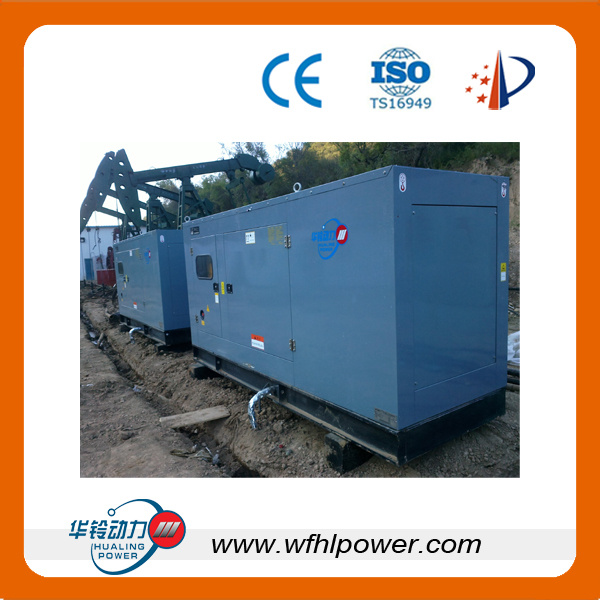

| Prod Model: |
100KW CHP |
| Gas Source: |
Gas |
Product Description
1. Certificate: CCS, ISO, UL, CE
2. 12 years manufcture experience
3. Widely use in SINOPEC and CNPC
4. Green Product
|
Cogeneration Unit Specifitions |
|
|
Type of cogeneration unit |
CHP100GF |
|
Nominal electrical power output (kW) |
104 |
|
Nominal heating power output (kW) |
135 |
|
Nominal voltage |
400/230 V |
|
Frequency |
50 Hz |
|
Nominal power factor |
1 |
|
Operating power factor |
0,8 – 1,0 |
|
Operating pressure of gas on the inlet gas train |
2-5 kPa |
|
Temperature gradient of heating system |
90/70 C |
|
Water flow of secondary circuit |
1,73 l/s |
|
Weight of cogeneration unit |
4500 kg |
|
Dimensions (length x with x height) |
|
|
Transportation |
6000 x 2350 x 2500 mm |
|
Operational |
6000 x 2350 x 3500 mm |
|
Exhaust temperature behind exhaust boiler |
125-185 °C |
|
Capacity of central oil tank (option) |
250 l |
|
The engine comply with TA Luft limits |
|
|
Noise pressure level of unit at distance 10m from container |
75 +- 3 dB/A/ |
|
Total recommended air exchange |
7200 m /h |
|
Self power load consumption |
|
|
Installed power load |
5,1 kW |
|
Average operating power load (without emergency cooling) |
3,4 kW |
|
|
|
Engine Specifitions |
|
Engine type |
HL6126NG-D |
|
Norminal speed |
1500 MIN -1 |
|
Number of cylinder |
6 |
|
Bore * Stroke |
126*130 |
|
Displacement |
10 (l) |
|
Air ratio / combustion |
|
|
Oil recommended (natural gas) |
<0.22 m3/kw@h |
|
Oil recommended (biogas) |
|
|
Lube oil filling quantity |
min. 19 l, max. 22 l |
|
Max. lube oil consumption |
0,4-0,6 g/kWh |
|
Compression ratio |
11.5:1 |
|
|
|
ALTERNATOR SPECIFITIONS |
|
Synchronous alternator |
Marthon MP-100-4 |
|
Nominal apparent power |
125 kVA |
|
Nominal active power |
100 kW |
|
Nominal voltage |
400/231 VAC, 50 Hz |
|
Harmonic distortion (no load/ linear balanced load |
<1.8% / < 5% |
|
Dir. axis transient (X′d) |
11,0% |
|
Dir. axis subtransient (X"d) |
6,6% |
|
Quad. axis subtransient (X"q) |
7,2% |
|
Transient time constant (T′d) 100 ms |
100 ms |
|
Sub-transtime constant (T"d) |
10 ms |
|
Generator weight |
515 kg |
|
Bearing number |
1 |
Weifang Hualing POWER CO. Ltd. It is located in the Power city, WEIFANG. With the integration of R&D, Design, Producing, Marketing and whole project construction, specializes in Energy, Electricity power, energy-saving, Environmental protection project.
The company has been identified OEM certificates by 8 World famous Engine group, ISO9001 quality management system certification, China energy-saving product certification. The company invested 2.6 billion RMB in the product line, and now is the first and top diesel engine and gas engine product line.
We produced a series multi-point injection electronic control engine and report to the National Development and reform commission, series of engines on the HL. CNG special report on current trends.
Since 2008, the product of HUALING Power Co., Ltd. Enter to the oil industry, develop and produce wellhead gas generating set, now has been widely used in the CBM oil brand and running in the subsidiaries.
