Specifications
1.Low Noise 260kw/325kva Volvo Penta Diesel Generator Set
2.Power:325kva 260KW
3.ISO9001:2008
4.Global quality assurance
Volvo diesel generator set is made of imported from Sweden engine supporting Stamford generator assembled. Volvo generator sets of small size, good quality, low noise, low fuel consumption, global warranty

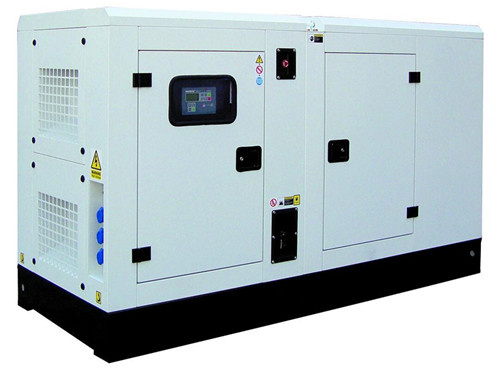

Low Noise 260kw/325kva Volvo Penta Diesel Generator Set
Overall description:
volvo Engine and kaijieli Alternator
Water cooled radiator, the fans driven by belt, with safety shield.
24 V Battery charging Alternator
Alternator:Single bearing Alternator,IP22 Grading Protection, H Insulation degree
Shock absorber
Dry air filter,Fuel filter,Oil filter
Power output circuit breaker
Harsen control panel(LCD display)
12 V battery and battery connection cables
Exhaust pipe,Corrugated shock tube,flange,Muffler set
Maintenance manuals
Lubrication System
Sales commitment
The products that we provide are all new, each unit all get through the strict production testing.
12 months or 1000 hours(whichever occurs first) of Warranty Time for all our products. We take the full responsibility only in the fault that created by the quality, the wearing-parts, daily consumables and human error of operating & maintenance are not included in.
GB/T19001-2008
SO9001:2008 Quality Control System
The main parameters of the generator set
Technical data |
Genset Model | FF-260GFV |
Prime Power | 325kva/260kw |
Rated Voltage | 400/230V |
Frequency | 50/60Hz |
Power Factor | 0.8(lagging) |
The regulating rate of steady voltage | ≤±0.5% |
The regulating rate of instantaneous voltage | ≤-15%/ +20% |
The time of steady voltage | ≤1.5sec |
The waving rate of voltage | ≤1.0% |
The regulating rate of steady frequency | ≤3% |
The regulating rate of instantaneous frequency | ≤±10% |
The time of steady frequency | 3sec |
Dimension (L×W×H) (mm) of naked unit | 2950*1120*1590 |
Genset weight (kg) | 2220 |
Diesel Engine |
Brand | volvo |
Model | TAD941GE |
Number of Cylinders | 6 |
Rotating Speed | 1500 RPM |
Cycle | Four stroke |
Type | waste gas turbine boost,direct spurting type |
Bore×Stroke(mm) | 120*138 |
Displacement(L) | 9.36 |
Lubricating Capacity(L) | 38 |
Speed Governor | Electrical |
Cooling System | Water-cooled |
Speed Stability (%) | ≤5% |
Fuel Consumption at 100% Load | 202g/kw.h |
Starting Method | DC24V Electrical starting |
Alternator |
Brand | kaijieli |
Number of Phase | 3 |
Connecting Type | Three Phase and Four Lines |
Number of Bearing | 1 |
Grading Protection | IP22 |
Altitude | ≤1000m |
Exciter Type | Brushless (AVR automatic voltage regulating) |
Insulation Class | H degree |
The components of the genset |
(1) volvo Diesel Engine; (2)kaijieli Alternator; (3) Harsen Control Panel |
Control Panel |
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection. |
For better meet user's demands, the alternator is selectable, we have Stamford, Marathon, KAIJIELI, Engga and other famous brands.
