| Prod Model: |
3GF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
One Year |
| Output Type: |
AC Single Phase |
Product Description

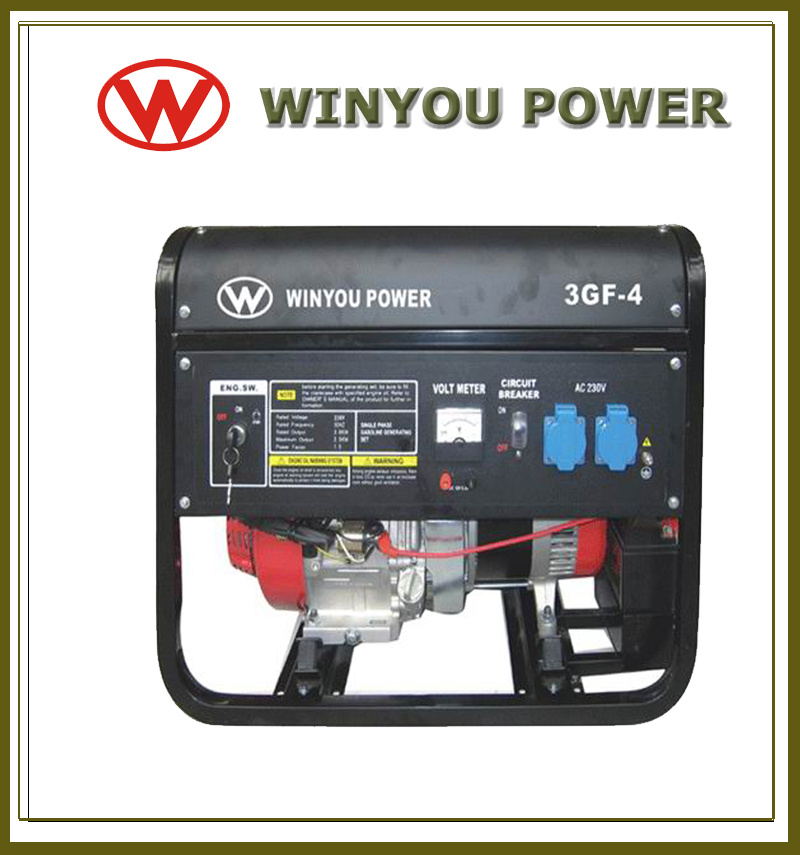

Features of our portable gasoline generators:
OHV Air-Cooled Engine
Splash lubrication provides longer engine life
Large Capacity Fuel Tank with Fuel Gauge
Lets the operator know current fuel level
Two-Wheel Kit
Provides enhanced portability and convenience
Hardened Steel Tube Cradle
Protects the generator from damage
Low Tone Muffler
Provides quiet operation
Covered Outlets
Provides added safety and extends the life of the generator
Packing&Delivery Days
Packing: Chima Packing/ Netural Packing /Customer's Packing
Delivery Days: 15-20days after Deposit received
Service&Quality Control
We are manufacturer, professional enough to provide good service&quality control.
Inquiry Is welcome. Technology support is available from us
|
|
Model No. |
WY2.5GF-3/2.5GF-4 |
WY2.8GF-3/2.8GF-4 |
WY3GF-3/ 3GF-4 |
Generator
|
Noise(7meters away) |
70db |
71db |
69db |
|
Rated output frequency |
50hz |
50hz |
50hz |
|
Rated output voltage |
220v |
220v |
220v |
|
Rated ouput power |
2.50kw |
2.80kw |
3.0kw |
|
Max Output Power |
2.7kw |
3.0kw |
3.3kw |
Gasoline Engine
|
Engine Model |
168FB/168F-2D |
170F/170FD |
173F/173FD |
|
Engine type |
4-stroke, 25 ″ inclinded
single -clinder, air-cooled |
|
BorexStroke (mm) |
68x54 |
70x56 |
73x58 |
|
Displacement(ml) |
196 |
212 |
242 |
|
Compression Ratio |
8.5: 1 |
8.5: 1 |
8.2: 1 |
Theoretical Maximum
Output Power |
4.8kw/3600rpm |
5.2kw/3600rpm |
5.8kw/3600rpm |
|
Rated output power |
3.8kw/3600rpm |
4.2kw/3600rpm |
5.1kw/3600rpm |
|
Continuouse Operating |
10.3hr |
9.3hr |
13hr |
|
Horse Power |
6.5Hp |
7.0hp |
8Hp |
|
Max Torque |
11N. m/3000rpm |
11.5N. m/3000rpm |
14.5N. m/3000rpm |
|
Ignition system |
Non-contact Transistorized
Magneto(TCL) |
|
Start System |
Recoil Start /Electric Start |
|
Air Cleaner |
Semi-dry type /Oil bath type |
|
Fuel Tank Capacity |
15L |
15L |
25L |
|
Fuel Consumption |
1.45L/h |
1.6L/h |
1.9L/hr |
|
Oil Capacity |
0.6L |
0.6L |
1.1L |
Packing
Detail |
Dimension (LXWXH)mm |
610x460x470 |
610x460x470 |
735x555x580 |
|
Net Weight |
47/49KG |
48/50KG |
65KG |
