Frequency:
50Hz
Prime Power:
1000kVA
Rated Voltage:
380V
Rated Current:
1519A
Type:
Basic Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Conditions Of Use:
Industry / Commercial/Outdoor
Product Description
1000kvA Diesel Genset Generator for Reefer Container
Description of Products
Cummins Diesel Generating Set - Model LFC800KW/1000KVA Prime Power
MODEL
LFC800KW/1000KVA
mitsubishi generator 1000 kva Powered by Cummins Engine
Prime Power (50HZ)
800KW/1000KVA
Standby Power (50HZ)
880kw/1100KVA
Power Factor
0.8 (Lagging)
Phase Wires
3-phases 4-Wires
Start Model
Electric
Protection
Low oil-pressure, High water temperature, Over-speed, Over-current
Engine Model
CCEC Cummins KTA38-G5 4-Cycle
Cylinders
12
Cylinder Arrangement
V
Bore x Stroke(mm)
159X 159
Compression Ratio
13.9:1
1000 kva silent generator guangzhou Speed
1500rpm
Cooling Method
Water - cooled
Starting Method
24V DC electrical start
Full Load Diesel Consumption (L/H)
190
Engine Displacement (L)
37.8
Inspiration (L)
Turbocharged Intercooled
Lube Volume (L)
135
Coolant Volume (L)
258
Noise (Db)
≤ 80
Alternator Model
Newage Stamford LVI634E or Leadtech LTG404F
Alternator Power
800KW/1000KVA Brushles with AVR
Voltage
380/220V,400/230V,415/240V,220/127V
Protection
IP23
Voltage Regulation
±4%
Insulation Class
H
Voltage Control
AVR
Net Weigh (KGS)
6700
Dimensions (L x W x H) mm
4500*1800*1900
Controller
Smartgen 6110 or Deepsea 7320
Standard
Muffler * 2PCS
Battery 120A * 2 PCS
Optional
ATS (auto transfer switch)
1000 kva silent generator guangzhou
AMF(auto mains failure)
1000 kva silent generator guangzhou

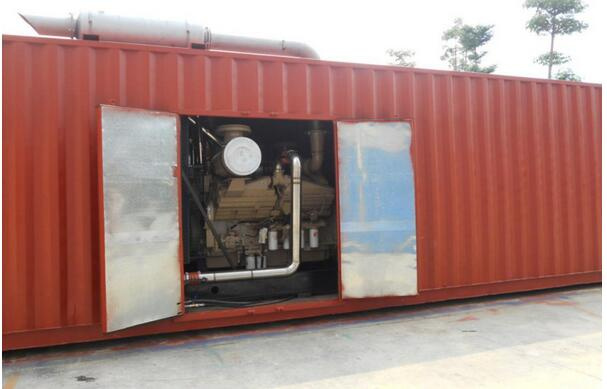

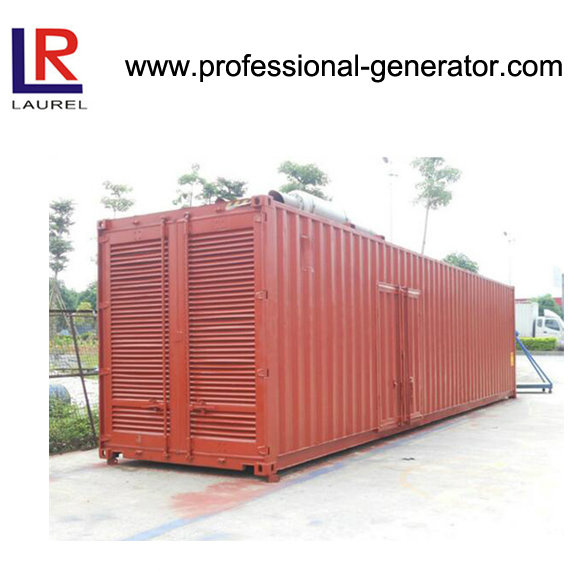

Containerized
Our main products: We are engaged in the production and sale of diesel generator sets, generators, engines, water pumps and other agricultural machinery products. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc.
Guarantee Service We have 34 years of export experience. We deliver not only our products, but also our value-added technical support and after-sales service. We ensure that all our original purchasers get Laurel & Honesty Holdings products guarantee under this warranty statement.
Warranty Period We will provide a warranty period of 24 months or 1200 operating hours to the original purchasers for all our Diesel associated products, and a warranty period of 12 months or 1000 operating hours to the original purchasers for all gasoline associated products. The warranty period starts from the day of delivery to the original retail purchaser.
Guangzhou Laurel & Honesty Holdings, founded in 1981, is professional company focusing on generators and Agricultural machines.
It has been 34 years since our factory was founded. Our main products are diesel generator sets, generators, marine engines, engines, water pumps and other agricultural machinery products. We have obtained the relevant certifications such as ISO, CE, RoHS, GS, TUV etc.
QUALITY GUARANTY POLICY
1. Guaranteed products
All kinds of Generator sets, generators, engines, pumps, control panels and agricultural machines sold by our company, Guangzhou Laurel & Honesty Holdings.
2. Base warranty period
1)The warranty period of generator sets is 2 years or 1200 running hours (the earlier one shall prevail) from the date when the generator set have been delivered from the factory.
2)The warranty period of generators, engines, pumps, control panels and agricultural machines is 1 year or 1000 hours from the date when the goods have been delivered from the factory whichever is coming first, the warranty period will be ended.
3)Any other special stipulation according to the order.
3. Guaranty range
The user shall strictly follow the operation handbook and service statement (included all the products mentioned above) to maintain and keep the equipments, the goods has any malfunctions caused due to the manufacture quality problems in the guarantee period.
4. Limit of guaranty
1)The goods is damaged during transport, Carrier shall take charge of the amends.
2)The goods is damaged due to unsuitable setting or doesn't follow the installation manual which offered by our company.
3)The goods is damaged due to the user doesn't follow the service statement to replace the filter and lube oil in the stated period.
4)The goods is damaged due to the user doesn't use the appointed oil filter, fuel filter, air filter which mentioned in the manual book.
5)The goods is damaged due to the user make bold to replace or use the spare parts or add other equipment on it without our company approbation.
6)The goods is damaged due to disassembly parts from the equipments without our company approbation.
7)The goods is damaged due to unsuitability place, start, warm-up, stop and so on.
8)The goods is damaged due to using disqualification fuel or other substance mixed in the fuel, such as water, impurity, contamination and so on.
9)Our company shall provide free maintenance service for malfunctions caused due to the manufacture quality, but not take charge of any overhead expensed, losing and any fault analysis fee.
. AFTER-SALES SERVICE POLICY
Guangzhou Laurel & Honesty Holdings will meet the needs of consumers as possible. They can expect to enjoy our specialized service from product manufacturing, delivery and installation to the technical support and maintenance during operation process. After receive the feedback of quality problem, we answer the consumers and supply problem solve program in 24 hours. Do our best to supply satisfied service.
You can get the following services:
1. Provide complete qualified products:
Once business cooperation is established, customers will immediately be presented with detailed technical information according to products.
(1)Product information
(2)Engine information
(3)Alternator information
(4)Automatic Start-Stop Systems information
(5)Insulation Protection information
2. Provide complete technical support, including installation and commissioning services:
After the customer receive the goods, we can provide installation and commissioning advisory guidance, and also can assign engineering technologist with installation experience to the scene and guide the on-site installation if necessary.
3. Professional technology personnel training:
If the customer requirements, we will arrange technical personnel training, guidance.
4. Maintenance Service.
5. Supply technology assistance for your whole life.
