| Prod Model: |
H16V190ZLZ-2 |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Frequency: |
50Hz |
| Gas Source: |
Biogas |
Product Description

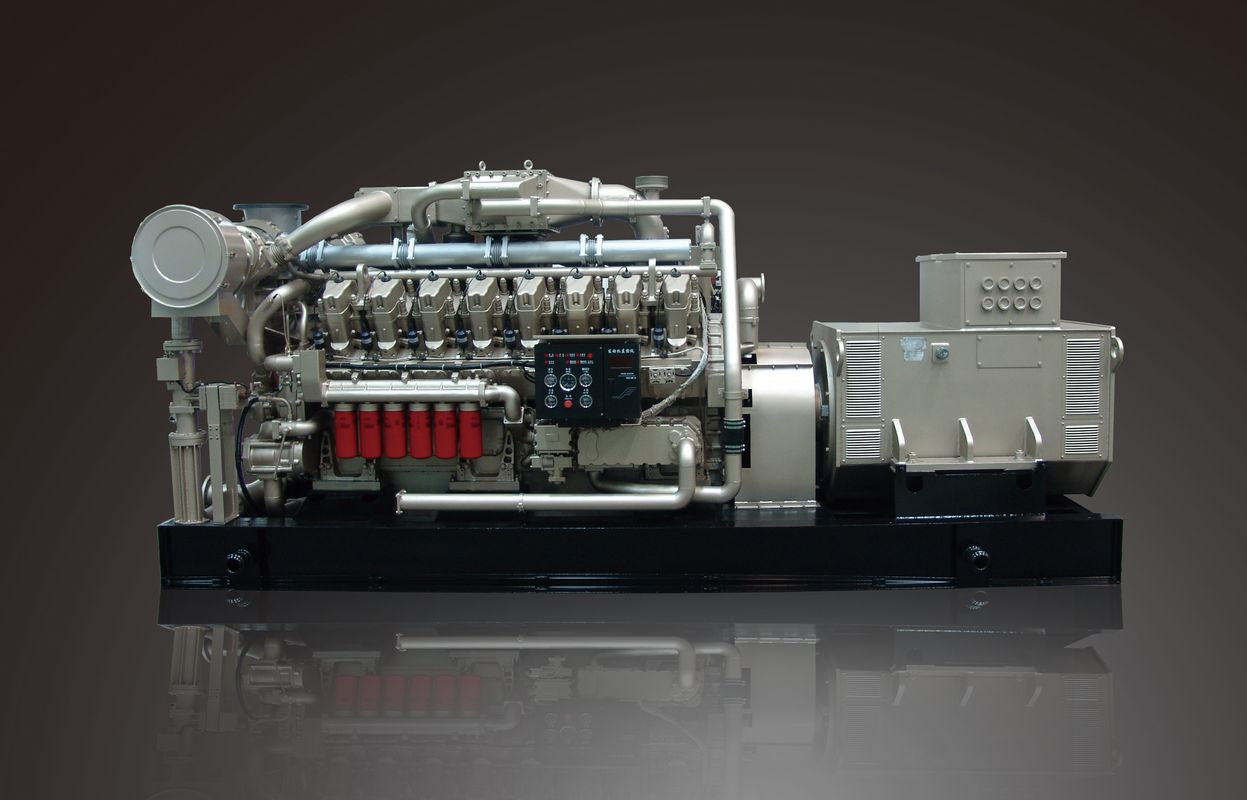

1000kw biogas generator set
Main technical specifications are as follows:
Model of generating sets 1000GF-NK
Model of engine H16V190ZLZ-2
Rated power KW 1000
Continuous power KW 1000
Rated speed (r/min) 1000
Rated voltage (V) 400/230
Rated frequency (Hz) 50
Rated power factor 0.8
Supply method 3 phases 4 lines
Excitation method brushless
Starting method 24V DC starter 24V
Cooling method Full-opened water cooling system
Speed modulate method Electronic control
Net weight (kg) 21000kg
Overall dimension L× B× H(mm) 5998× 2516× 2540mm
(Only for your reference)
Control panel GPL1000A
Control method Remote electronic control or manual control
Monitor and control In-place communication interface or communication interface for remote meter-reading system
Synchronization control IG-CU automatic control module
Starting method Start in direct-current twinsat motor
Cooling system Full-open water cooling system
Overhaul period 35000 hours
We are targeting the market worldwide, our products are exported to more than 30 countries. In north and south American, we have solid sales cooperation with Venezuela. In Asia, we sell our products to Bangladesh, Singapore, Malaysia, Thailand, Turkmenistan, Kazakhstan, Russia and so on. In Africa, we have good relationship with our clients in Tunisia, Sudan, and Nigeria. Our foreign market demands are increasing rapidly in the recent years and have a brighter prospect in future.
