| Prod Model: |
AC400-100KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
400VAC |
| Rated Power: |
100kw |
| Power Factor: |
1 |
| Display Parameter: |
Voltage,Current,Power,Power Factor, Frequency |
| Cooling: |
Forced Air Cooling |
| Transportation: |
with Castors and Lift Rings |
| Control Mode: |
Manual or Computer |
| Environment Temperature: |
-10c~+50c |
| Wire Connection: |
Copper Bar |

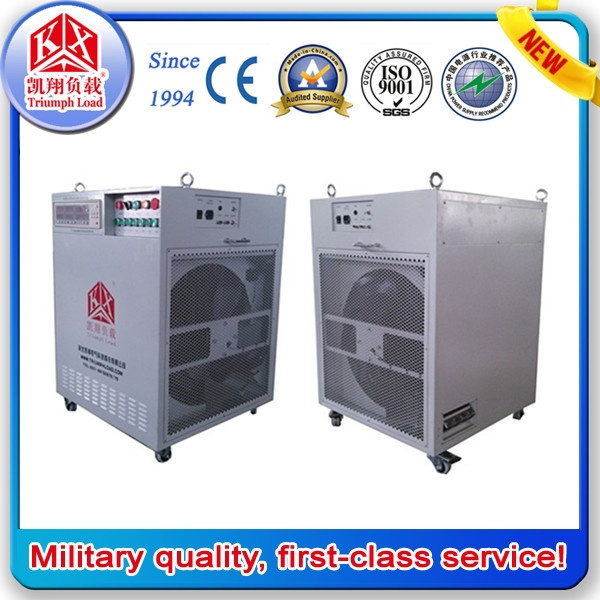

Product Description
1. Rated Load Voltage: AC 400V(3 phase 4 line,50HZ)
Installed Capacity: 110KW
2.Power Factor: 1
3. Display Method: 0.5 class LED 3 phase Comprehensive electricity meter can display: voltage, current, active power, power factor, frequency. With software can test and form curve, chart, testing report, support store and printout.
4. Cooling Type: Forced air cooling by industrial fans.
5. Transportation: With castors and lifting rings on the machine.
6. Control Mode: manual or software
7. Working Power: AC 220V, 50HZ
8. Load Steps:
1kW,2kW,2kW,5kW,10kW, 20kW, 20kW, 50kW
Main features
1. Multiple control mode: (1) manual panel control (2) remote control (3)software control
2. Multiple display function: voltage, current, frequency, power factor, active power, reactive power, apparent power etc.
2. Multiple protection function: overvoltage, overcurrent, overheat, over low blowing rate, blower overheat, blower phase sequence reverse protection, smoke alarm etc.
3. Forced air cooling: industrial heavy duty fan, horizon air intake, upwards outlet, low noise.
4. Power consumption components: made by special alloy resistance, high temperature resisting, high heat dissipation capability, high heat stability, no naked light, safety and reliability. Running temperature is 1/3 of rating.
5. Weather-proof structure: containerized structure provides ultra protection, protection grade higher than IP55.
6. Material and coating: the body adopt cold-rolled steel plate that processed by galvanizing corrosion protection, powder coated and spray paint.
7. Integrated & modularization design: compact structure, easy to installation, maintenance and transportation.
8. Software control: it can test and display voltage, current, frequency, power factor, active power, reactive power, apparent power etc, the test result can be store & print and form all kinds of curve, chart and test report.
| Rated Load Voltage | 380V, 3 phase 4 wire, 50HZ |
| Rated Load Power | 100KW |
| Power Factor | 1 |
| Min Load Step | 1KW |
| Resistive Load Steps | 1kw,2kw,2kw,5kw,10kw,10kw, 20kw,50kw total 8 steps |
| Duty Cycle | Continuous |
| Cooling | Forced air cooling by industrial fan, low noise |
| Ventilation Method | Horizontal inlet air and horizontal outlet air |
| Casing Structure | Anticorrosive steel case |
| Transportation | With castors at the bottom and lifting rings on the top, easy to move |
| Max Protection Grade | IP21 |
| Ambient Temperature | -10ºC~+50ºC |
| Dimensions | 600 mm*950mm*850mm(length*wide*high) |
| Weight | About 80kgs |
| Type for Choice | Manual Type |
| Control Mode | Panel |
| Display Instrument | voltmeter, amperemeter display single phase voltage and current |
| Automatic Type |
| Control Mode | Panel or software |
| Display Instrument | Multifunctional instrument display voltage, current, power, power factor, frequency etc |
| Software Function | The test result can form curve, chart, test report, support to store and printout |
| Intelligent Type |
| Control Mode | Panel or software |
| Display Instrument | Generator special tester display voltage, current, power, power factor, frequency etc |
| Software Function | Besides above functions, it can transient test, such as instant load test, instant unload test, harmonic analysis , record wave analysis etc. |
Who we are
Hebei Kaixiang Electrical Technology Co., Ltd is a leading manufacturer in emergency power supply test & maintenance industry. Specialized in the design, R&D, manufacture of the high capacity AC & DC load bank, it owns the largest intelligent power supply testing equipment R & D centre in China. We offer one-stop solutions to generator set & battery & UPS power manufacturers. Our products are widely used in data centre, shipbuilding, offshore platform, state grid, nuclear power, hospital, communication, railway, war industry etc filed. We are strategy partner of many famous company, such as Cummins, Caterpillar, Kohler, Jiangnan Shipyard, CSSC,CSIC, State grid, China mobile, Tecent, Baidu, Sinopec, CETC etc. Some of our products have been exported to Singapore, Japan, United Kingdom, Saudi Arabia, Australia, South Korea, Thailand, Angola etc. Through years of development, "Triumph Load" already the first brand in power supply detection industry in China.
Why choosing us
1. The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
2. The most patent technology and scientific research awards gainer in China.
3. Advanced detection method and strict inspection procedure build the qualified quality.
4. Customized production meet the individual requirement.
5. Prompt delivery & excellent after sales service.
6. Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
7. Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
8. Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.
