Display:
LCD
Built-in:
GPRS Module
Drive:
3 Phase AC220/380V Pump
Function:
Soft Start and Variable Frequency
Voltage:
MPPT Tracking
System:
Off-Grid system
Product Description
Quick details

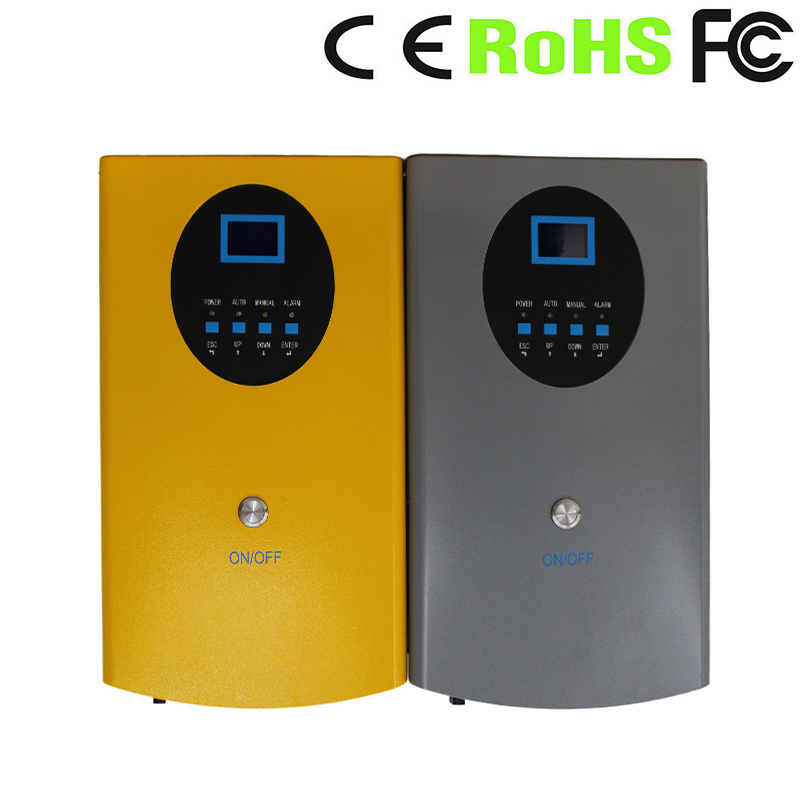

1.Photovoltaic Inverter for 3 phase Solar Pump 2.High efficiency>98% 3.With Soft start, VFD, MPPT 4. GPRS function (optional) 5. LCD display 6. Stainless steel, waterproof shell with IP65 7. Without battery and solar charge controller 8. Provide 2 years warranty
Features
1. Adopting the dynamic VI maximum power point tracking (MPPT) control method & optimized SPWM; fast response and stable operation.
2. IPM (intelligent power module)electronic design and transformerless, conversion efficiency 98%, high reliability.
3. AC drive function for small photovoltaic pump inverter. When is no sunshine,such as at night , photovoltaic pump inverter can connect to AC city power to work by manually if AC power is available. but (this function is optional). 4.Sloar Pump photovoltaic inverter can be built-in GPRS receiving module(this function is also optional).You can operate this inverter remotely through your PC or mobile phone with our provided website, user name and password. 5. Adjustable speed range of pump based on the actual situation of the system.
6. Setting parameters and fault detection through LCD display. (43*29mm)and keys, easy operation, good view through LCD when setting parameter, feel comfortable. 7. Patented low voltage boost device for small pump to reduce solar panel to save money. 8. Working environment temperature: -10 to 60 ºC 9. Stainless steel and waterproof shell, waterproof fan good for cooling 10. System protection a. Dry Well b.Over Flow C.Output Overload d.Low Input Voltage e.Over Input Voltage f. Over Temperature g.Lighting h.Reverse Polarity
11. No starting Box Required
12. Water storage instead of battery power storage, no need battery.

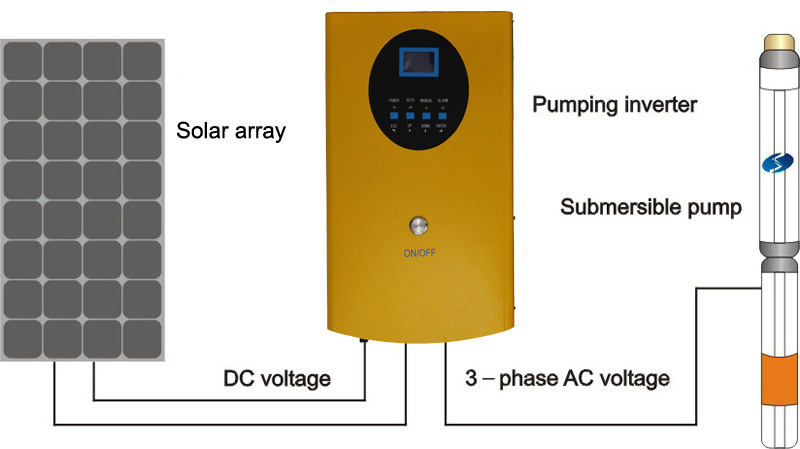

Structure of Photovoltaic pump system
Photovoltaic pumping system application
·Remote Villages, Homes, Cabins and Hunting Lodges (home use) ·Irrigation for remote orchards, gardens, and greenhouses (irrigation water) ·Wildlife watering at wild game parks and farms (irrigation water) ·Fish pond water level maintenance and aeration (home use) ·Swimming pool circulation& filtration pumps (home use) ·Surface water pumping for landscaping streams and waterfalls (home use) ·Cattle, Livestock watering systems (animal husbandry ) ·Water supply for sea island ·Water treatment projects, for example, sea water desalination.
Specification
Solar Pump Photovoltaic Inverter
Adapting Pump Motor
PV Peak Power(kWp)
Model
Rated Power(kW)
Max. Input DC Voltage(V)
MPPT voltage(V)
Output 3 phase AC Voltage
(V)
Output Frequency
(Hz)
Rated Power(kW)
Rated Voltage(V)
SGY750L
0.75
430
280-350
3 PH 220
0-60
0.55-0.75
3 PH 220
1.1
SGY1500L
1.5
430
280-350
3 PH 220
0-60
1.1-1.5
3 PH 220
2.2
SGY2200L
2.2
430
280-350
3 PH 220
0-60
2.2
3 PH 220
3.3
SGY3700L
3.7
430
280-350
3 PH 220
0-60
3-3.7
3 PH 220
5
SGY750H
0.75
430
480-600
3PH 380
0-60
0.55-0.75
3PH 380
1.1
SGY1500H
1.5
430
480-600
3PH 380
0-60
1.1-1.5
3PH 380
2.2
SGY2200H
2.2
750
480-600
3PH 380
0-60
2.2
3PH 380
3.3
SGY3700H
3.7
750
480-600
3PH 380
0-60
3-3.7
3PH 380
5
SGY5500H
5.5
750
480-600
3PH 380
0-60
4.5-5
3PH 380
8
SGY7500H
7.5
750
480-600
3PH 380
0-60
7.5
3PH 380
10
SGY11KH
11
750
480-600
3PH 380
0-60
9.2-11
3PH 380
15
SGY15KH
15
750
480-600
3PH 380
0-60
13-15
3PH 380
21
SGY18KH
18
750
480-600
3PH 380
0-60
18.5
3PH 380
25
SGY22KH
22
750
480-600
3PH 380
0-60
22
3PH 380
30
SGY30KH
30
750
480-600
3PH 380
0-60
26-30
3PH 380
42
SGY37KH
37
750
480-600
3PH 380
0-60
37
3PH 380
50
SGY45KH
45
750
480-600
3PH 380
0-60
40-45
3PH 380
60
SGY55KH
55
750
480-600
3PH 380
0-60
55
3PH 380
75
SGY75KH
75
750
480-600
3PH 380
0-60
65
3PH 380
98
