| Prod Model: |
KSWT100W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
470X410X330mm |
| Number Of Blade: |
Multiple-Blade |
| Rotating Shaft: |
Horizontal |
| Stress Way Of Blade: |
Resistance |

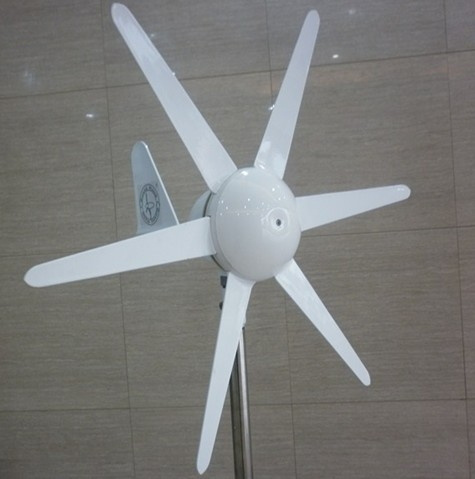

Product Description
Feature:
-2m/s start-up
-Working quiet.
-Unique and purpose designed generator
-charge up to 300 Watts
-Efficient aero foil profile blades with a uniqe 'one way only fit' feature
-Brushless alternator.
-360 degree free rotation o the mounting pole
-Durable construction and modern materials
-Available in 12V or 24V as standard.
-Chaging to battery group directly. no need extra controller
1.wind turbine for street light
2.Hight efficiency,long life,Combine with wind/solar hybrid controller.
3.Easy to intall
4.CE
Rated voltage (DCV): 12/24
Maximum power (W): 300
Start up wind speed (M / S): 1
Security wind speed (M / S): 35
Wind wheel diameter (M): 0.82
Blade: 6
Blade Material: FRP reinforcement
Motor Housing material: FRP reinforcement
Controller: Built-in
Design life (YEARS): 15-20
Packing: plywood boxes or cartons
Protection: IP65
Package Size (MM): 470 * 410 * 330
GW (KG): 15
Description Reminder: the product does not contain solar panels, LED lights, and triangular bracket, if necessary purchase, pls contact .
1. for proper installation, please read the instructions before installation;
2. skilled workers to install wind turbines, in strict accordance with the instructions;
3 In the absence of instructions not to open the motor or the controller for repair;
4 Please select windless weather install wind turbines;
5 This section of street dedicated wind turbines, household electricity use is not recommended.
Model |
100W |
200W |
300W |
FA1.2-400W |
Rated power(w) |
100W |
200W |
300W |
400W |
Rated voltage(V) |
12V/24V |
12V/24V |
12V/24V |
12V/24V |
Rotor diameter(M) |
1.2 |
1.2 |
1.2 |
1.2 |
Star up wind speed (M/S) |
2 |
2 |
2 |
2 |
Rated wind speed (M/S) |
12 |
12 |
12 |
12 |
Yaw mode |
Fixed-wing |
Shell material |
Die-Cast aluminum |
Direction |
Clockwise |
Over-Speed Protection |
Electronic torque control |
motor type |
Single-phase permanent magnet generator |
Blade material |
high strength nylon composite |
Guy cable tower height(m) |
6 |
Blade number |
3 |
3 |
3 |
3 |
Weight (KG) |
7.6 KG |
7.7 KG |
7.8 KG |
7.9 KG |
Package size(mm) |
690*370*225 |
Package |
Carton + foam |
Certification |
CE/TUV/ISO9001:2008/GMC |
