| Prod Model: |
JDX-S-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
100W |
| Rated Wind Speed: |
12m/S |
| Started Wind Speed: |
2m/S |
| Cut-in Wind Speed: |
3m/S |
| Security Wind Speed: |
40m/S |
| Rated Voltage: |
12V/24V |
| Output Voltage: |
0-38V |
| Stress Way Of Blade: |
Lift Force |
| Rotating Shaft: |
Vertical |
| Number Of Blade: |
6 |
Product Description

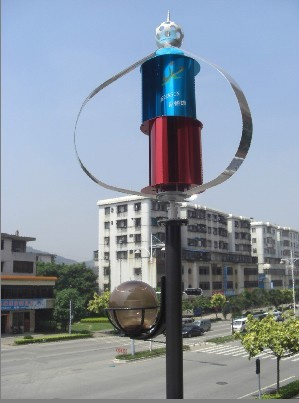

Gardenson Wind Turbine Generator is mainly used for individual power supply, which is an important part of wind-solar hybrid generating system.
There are many advantages of the Gardenson small Wind Turbine Generator:
High quality material. The Generator we used is made of rare earth material ND-Fe-B, which has high density and strong magnetism, and is durable.
Portable size. 100W Wind Turbine Generator is only weight 8.5kg,;
High sensitivity. Gardenson small Wind Turbine Generator has the lowest started wind speed of 1m/s that seldom manufacturer can reach.
Reasonable price. We offer our customer the reasonable price which is better than other manufacturers in Chinese market, aiming to build a friendly and mutual benefit relationship with you.
Good quality. Our small wind Turbine Generator has pasted the ISO9001 and CE certification, which make sure that we offer you the best product.
Low noise. With our own Technology, we have control the noise of our Gardenson small Wind Turbine Generator low, in most cases, you can hardly hear it.
Easy maintenance. As our turbine is of good quality, failure rate is very low, and conventional maintenance is enough.
|
Components parameters |
|
Generator |
Nd-Fe-B Rare Earth Materials; no iron core; 3-phase AC |
Shell |
Aluminium alloy |
|
Blade |
2 layers; 6 pieces
3 outer blades |
Axis |
steel material,
paint white |
|
Net weight |
9kg |
Size |
0.9*1.1(m) |
|
Operating parameters |
|
Rated power |
100W |
Rated voltage |
12/24V |
|
Rated wind speed |
12m/s |
Rated rotating speed |
1000r/min |
|
Maximum power |
150W |
|
|
|
started wind speed |
2m/s |
Cut-in wind speed |
3m/s |
|
Cut-out wind speed |
15m/s |
Security wind speed |
40m/s |
|
Over speed protection |
3-Phase short circuit brake |
|
|
|
Output voltage |
AC 0-22/44V |
Output current |
0-4.5A |
|
Charge voltage |
DC 38V/48V |
Charge current |
1-4A |
|
Temperature |
-20º C~+85º C |
Humidity |
≤ 90% |
|
Elevation |
≤ 4500m |
Tower height |
3-12m |
Jiangmen Jianghai Gardenson Electric Technology Co., Ltd was found in 2009, and own a capital of 1 million RMB. We mainly develop and sale small wind turbine generator, wind-solar hybrid street lamp, wind-solar energy charge controller and other wind-solar hybrid generating equipment.
Our Wind Turbine Generator has the advantage of small size and high sensitivity. Normally, the minimum generating wind speed is 2m/s, which means a better use of wind energy.
Reducing cost is another advantage of our products, as we offer the the most reasonable price which is better than other supplies in the Chinese market. Also quality is what we value the most.
Wind & Solar Hybrid Generating System can be used in occasions which need supply power individually and have low power consumption(not more than 2000W/day), such as street lamp, video surveillance, telecommunications base station.
