| Prod Model: |
KDE12 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 10kVA: |
10kw |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Portable |
| Stroke: |
Four Stroke |
| Cooling Method: |
Air Cooled |
| Output Type: |
AC Single Phase |
| Speed: |
3000 Rpm |
Product Description

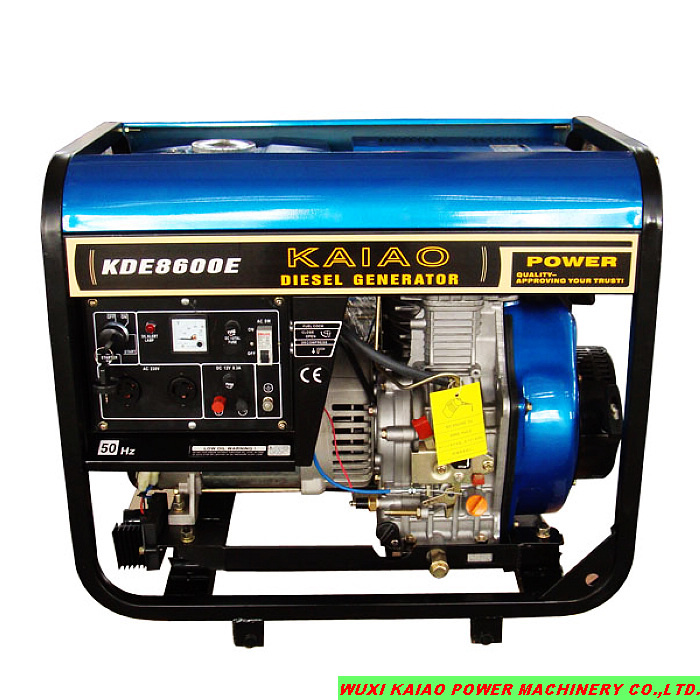

9kVA Diesel Genset
1. CE&ISO9001 approved, powered by KAIAO advanced air-cooled diesel engine
2. Ideal for home emergency use or as standby power supply
3. Large fuel tank, ensuring hours of continuous output
4. Advanced direct fuel injection system
5. A variety of specially-designed control panels available for different markets
| Model | KDE12EA |
| Frequency(HZ) | 50 | 60 |
| Rate power(kVA) | 8.5 | 9.5 |
| Max(kVA) | 9.5 | 10.5 |
| Voltage(V) | 115/230 | 120/240 |
| Current(A) | 73.9/36.9 | 79.2/39.6 |
| Rate rotate speed | 3000 | 3600 |
| Phase | Single |
| Power factor | 1.0 |
| Insulation level | F |
| Pole | 2 |
| Excitation system | Self-excited constant voltage(AVR) |
| Panel | Intelligentized |
| Output voltage(V) | 115/230 | 120/240 |
| Output socket | Yes |
| Output terminal post | Yes |
| Dimension(L*W*H)(mm) | 930*620*690 |
| Net weight(kg) | 185 |
| Noise level(7m)dB(A) | 75 |
| Structure | Open-frame |
| Engine Model | KA840 |
| Engine type | Two-cylinder, v-type, air-cooled, four-stroke, direct injection |
| Bore*stroke(mm) | 2-88*72 |
| Displacement(ml) | 836 |
| Power(Kw) | 10.3/3000 | 11.3/3600 |
| Compression ratio | 19: 1 |
Rate rotate speed(r/min) | 3000 | 3600 |
| Cooled system | Air-cooled |
| Lubrication systme | Pressure splash Type |
| Starting system | Electric starter |
| Fuel | Summer: 0# Winter: -10#(chill -35#) diesel oil |
| Lube | L-ECD(level)15W30 or 15W40 |
| V-Ah Battery capacity(V-AH) | 12V36AH |
| W. H Fuel consumption rate(g. kW/H) | ≤ 340 |
| Fuel tank capacity(L) | 25 |
| Continual running time | 7 | 6.5 |
Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:
Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),
Air-cooled diesel generator set(2KW--8.5KW)
Air-cooled diesel engine farming tillers(4HP, 5HP, 8HP)
Air-cooled diesel generator light tower(400W-10000W)
Air-cooled gasoline generator (650W-5000W)
Water-cooled Diesel Generator(10kw-100kw),
Water pump unit(2 '', 3 '', 4 '')
Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.
Electric welding set, construction machinery, and gardenging machinery, etc.
Kaiao lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 20000 square meters, we have more than 150 staff members, among which three are around 20 are professional technicians. Advanced production lines and inspection equipments allow high quality productions.
We insist on technical innovation promoting development collectively. We have a specific goal: Exerting our effort to offer our customers the high-quality productsand services.
Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
