North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:
Green,Yellow,Blue,Ect
Brand:
Oripo
Control System:
Intelligent Control
Rated Frequency:
50Hz/60Hz
Rated Voltage:
230/440V
Rated Current:
10A/2000A
Rated Speed:
1500rmp/1800rmp
Type:
Self-Starting Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Excitation Mode:
Brushless Self-Excited
Product Description

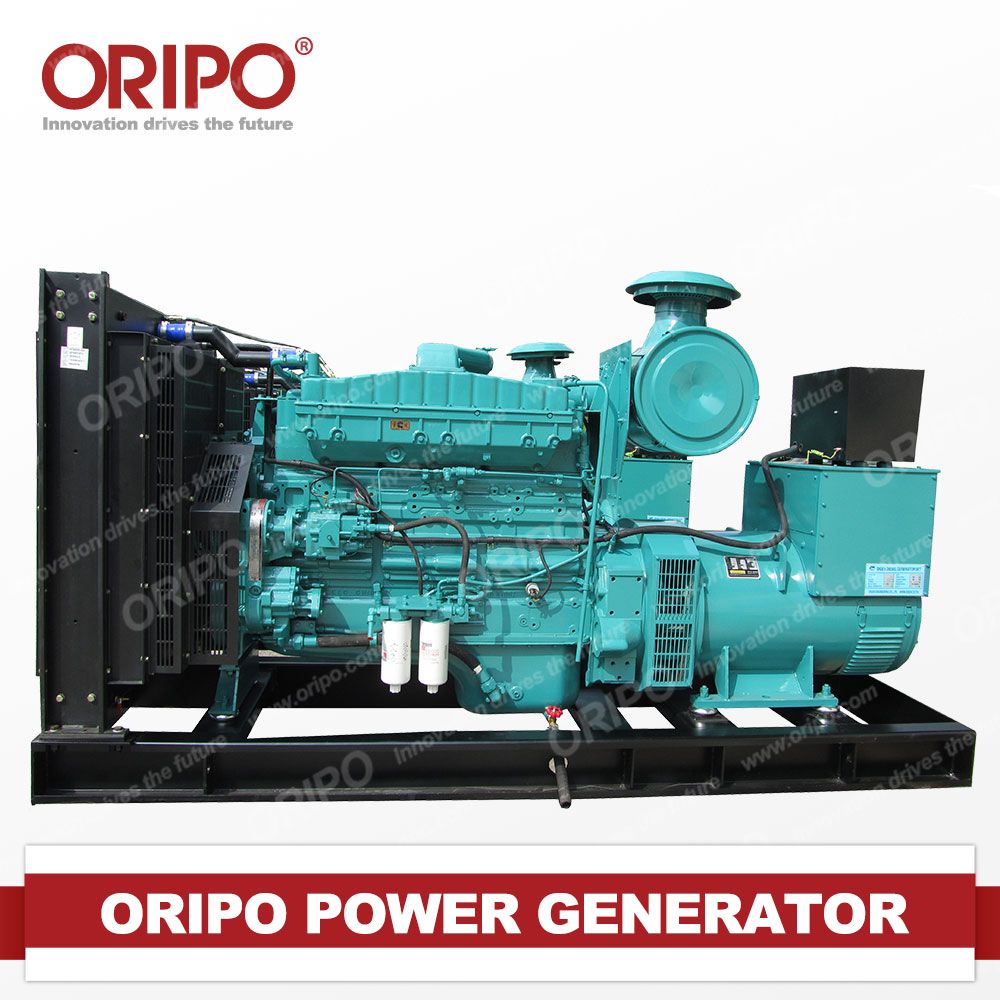

10KW rated power alternator self-excited:
Product Description:
Product Features:
1. With Brand New Cummins Engine.
2. 100% Copper Alternator Generator.
3. Good Quality and Rapid Service.
4. Lasted 8 Hours Running Fuel Tank.
5. Fuel Less Generator.
6. If With ATS, Can Be Automatic Started When Out Of Electric Supply.
Model No.
STANDBY POWER
PRIME POWER
ENGINE
ALTERNATOR
CONTROLLER
KVA
KW
KVA
KW
OCL-1650
1650
1320
1500
1200
KTA50-GS8
LTG454A1
6110
220/380V, AC, 50Hz, 0.8PF (lag), Three phase four wire
Generator set specifications
Governor Class
ISO8528 G3
Potential Drop
1%
Steady Voltage Regulation
1%
Frequency Drop
Synchronous(0%)
Steady-state Frequency
0.25%
R.R.I.Suppression
BS EN 61000-6-4 / BS EN 61000-6-2
Fuel Consumption Rate ,g/kw.h(L/hr)
205 (293.67)
Starting Battery Capacity ,A/hrhhr
200*4
Total Coolant Capacity ,L
330
Fuel Capacity (base tank),L
N/A
Engine Data
Model
KTA50-GS8
Type
"V" Type 16 Cylinder,4 Cycle
Displacement ,L
50.3
Compression Ration
14.9:1
Aspiration
Turbo, Water / Air Cooling
Fuel System
PT type Fuel Pump,EFC Electronic Governor
Bore*Stroke(mm)
159*159
Rated Speed ,rpm
1500
Governor Type
Electronic
Starting Voltage
24V ,Negative ground
Battery Charging System
24V 35A
Lubricant Capacity ,L
204
Coolant Capacity, L
330
Alternator Data
Protection Class
IP21
Insulation Class
Class H
Temperature Rise in Standard
125 ºC(When Ambient Temp.is 40 ºC)
Excitation Type
Brushless & Self-excited
Waveform Distortion
No load<1.5% Non-Distorting balanced linear load<5%
Telephone Interference(TIF)
<50
Telephone Interference(THF)
<2%
Exhaust System
Exhaust air flow
4350 L/S
Exhaust Temperature
510ºC
Max Back Pressure
10kPa
Air Intake System
Max Intake Restriction
6.35 kPa
Burning Capacity
1655 L/S
Air Flow
36000 L/S
Lubricant System
Total Lubricant Capacity
204L
Lubricant Consumption
≤4g/kwh
Engine Oil Tank Capacity
178L
Oil Pressure at Rated Speed
345-483 kPa
Cooling System
Total Coolant Capacity
330L
Thermostat
82-93ºC
Max Water Temperature
104ºC
Company profile:
Oripo Established in 1998, Oripo Power Engineering Co., Ltd is professional leading manufacturer, suppliers, exporter and authorized dealers of diesel gensets. With over 20, 000 square meters and a staff nearly 200, the headqauter is loacted in Foshan city, adjacent to Guangzhou which is the trade center of Guandong province. We offering power genset, industrial genset, silent genset, weather proof genset, Cummins genset, Perkins genset, Yuchai genset, Shanghai Dongfeng genset, Deutz genset, Weichai electric genset, China domestic genset, silent diesel generator, portable power generator, trailer diesel generator and electric power generator.
Currently, Oripo cooperated with multinational companies formed a strategic partnership. Import CUMMINS, PERKINS series generator sets, and purchase engine from with Cummins, SDEC, Yuchai, LOVOL, Deutz, alternater with STAMFORD, MARATHON, LEADTECH and other international or domestic famous brand. Establish a long-term friendly cooperation relations with the branded engine and alternator company, authorized to be the OEM partner, In 2009, Oripoe authorized by Cummins, Shanghai Dongfeng and Yuchai to provide OEM service. As professional qualified manufacturer provide OEM genset, spare parts, after sale service, in order to better serve customers and laid a solid foundation.
During the last ten odd years, Oripo has been dedicated to pursuing professional production, thus prevailing in the market with its superior quality, cutting-edge technology and tailor-made services. Moreover, with an endeavor to expand our business operations, we adhere to ethical business practices, transparent business dealings and work to attain the confidence and trust of our clients.
