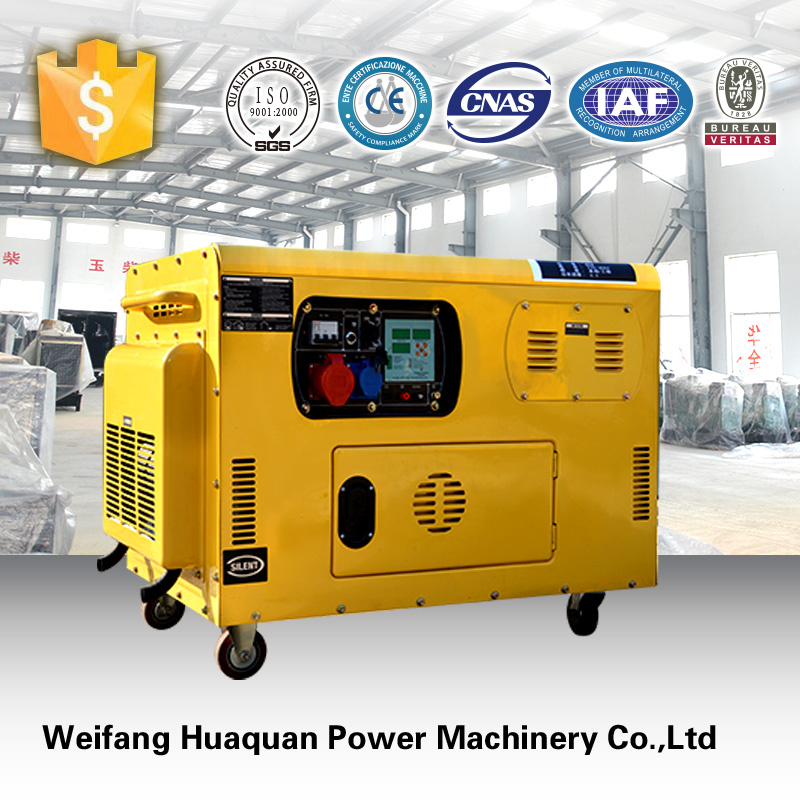

10kw Small Silent Type Diesel Generator with Electric Start (CE EPA CSA)

Prod Model:	HQ10GF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	50/60Hz
Rated Power:	10kw
Rated Voltage:	220/380/400
Rated Current:	90A
Cylinder No.:	2
Cooling System:	Air Cooled
Type:	Basic Diesel Generator
Installation Method:	Portable
Stroke:	Four Stroke
Cooling Method:	Air Cooled
Output Type:	AC Three Phase

Product Description

About Our Company

1. Offer the main Power range from 10kva~1500kva.

2. Adopt the famous engines like Weichai engines, Deutz engines, Steyr engines, Cummins engines, Perkins engines, Isuzu engines, Ricardo engines, Changchai engines, Yuchai engines, Jichai engines etc. These are widely used all over the word.

3. We only adopt standard high-level quality alternator, to produce the high-level diesel generators.

4. We offer Open-generators, Silent-Generators, Automatic-Generators and Trailer-Generators.

5. All spare parts serviced directly by our company.

6. We are confirmed as the OEM factory by many those engine factories and alternator factories.

1.Generator set parameter


Model		HQ10GF
Rated power		10KW/12.5KVA
Maxp Power		11KW/13.8KVA
Basics electric parameter		50Hz/60HZ ,3 p 4 w,400V/230V
Rated speed		1500rpm/1800rpm
Power factor		Lag0.8
Insulation Class		H
Protection Class		IP23
Gross Weight		220KG
Dimension(L*W*H)		870*630*7000mm(Open)	Silent:1090*670*910mm
2.Engine parameter
Engine Model	R2V820/China				Cylinder Qty	2
Engine Type	V type.Four-stroke,Aire cooled,Injection				Bore*Stroke	86X70mm
Rated power	11kw/13.7kva				Displacement	812ml
Rated Speed	1500rpm/1800				Full load consumption	2L/h
Speed regulation	Mechanical				Intake methond	Natural
3.Alternator parameter
Brand	Shanghai				Rated Frequency	50Hz/60HZ
Model	STC-10				Rated output	400V/230V
Rated Power	8KW/10KVA				Exciting Mode	Brush
Rated current	18A				Voltage Regulation	AVR

Generator Set Data


Voltage Regulation:≥±5% Voltage Regulation, Stead State:≤±1% Sudden Voltage Warp (100% Sudden Reduce):≤+25% Sudden Voltage Warp (sudden Increase):≤-20% Voltage Stable Time (100% sudden Reduce):≤6s Voltage Stable Time (Sudden Increase):≤6s Frequency Reduce:≤5% adjustable:≤1.5% Frequency Regulation, Stead State:≤0.8% Frequency waving:≤+12% Sudden Frequency Warp (100% Sudden Reduce):≤0.8 % Sudden Frequency Warp (Sudden Increase):≤-10% Frequency Recovery Time (100% sudden Reduce):≤5s Frequency Recovery Time (Sudden Increase):≤5s

Sales Promises

Huaquan provides a full line of brand new and high quality products.Each

and every unit is strictly factory tested Warranty is according to our

standard conditions:12 months or 1000 running hour's ,subject to the

earlier one .Service and parts are available from our factory


Diesel Generator, home use generator, power generator, standby generator, portable diesel generator, 5kw diesel generator.

Feature:

    Reliable quality for long life
    Circuit breaker protects overload operation
    Low oil shut down protection system
    AVR alternator provides stable voltage and current
    One year warranty with free spare parts

Packing, Delievery,Payment, Warranty:
Packing: Canton Packing(Colour Packing can be choosed)
Delievery: 25-30days after receipt payment
Payment: T/T or L/C at sight
Warranty: 1 year


For Choice:
1) Power Output/Power Capacity: 3Kw 5kw
2) ATS
3  Three Phase
4) Remote start
5) Digita panel
6) Hour meter


FAQ:

1. Q:What is your MOQ  of this item?
 A: Sample order is acceptable.

2. Q: What is the lead time?
A: As usually, 25-35 days after receiving TT deposit or L/C. But we will finish order with shorter time for your urgent need.

3. Q: Where is your loading sea port?
A: Fuzhou, China.

4. Q: Is it all right to make customer's own brand name?
A: We can be your OEM manafacture with your authorization of brand..

5. Q: What is your company available production capactiy?
A: One 40HQ container can be finished per day. The more quantities, the same delivery time.




Warranty:

(1) Guarantee for one year or 1000hours (according to whichever reaches first) from ex-factory date.

(2) During guarantee period,our company will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material.
