| Prod Model: |
PETC-FD-10W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| AC Charger: |
AC86V~260V |
| Output Voltage: |
DC12V |
| System: |
Off-Grid system |
Product Description

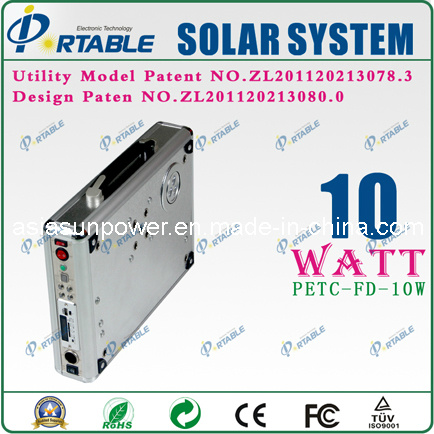

This 10W portable solar Home lighting system includes Solar cell modules, special solar battery, solar controller, solar power generator systems etc. Pollution-free, energy-saving, protecting environment, free maintenance and less restriction, with low Failure Rate, easily assembling and carring, convenient using, Its llifespan can reach above 25 years, a variety of charging ways complementary, solar \AC and DC all can charge for the system, one time investment, long-term benefits. 10W portable solar Home lighting system can be applied to the villa, housing, outdoors\tourist resorts, prairie areas, remote mountain village, mountain island, household, farms, villages, farm, hills, island, highway and any regions to generate electricity. (can charge for Cell phones, notebook computers, lights, digital camera, camera, TV set, electric tools, music CDS, DVDS, electric power, such as voltage in 220V 50Hz)
Characteristics: 10W portable solar Home lighting system has high conversion of silicon solar panel, high euphotic rate and mechanical strength, good resistance to climate, preventing wind, hail. Which can effectively resist corrosion of moisture and salt fog, and can produce high efficient power and energy.
Appliance range: Electronic appliances such as mobilephone charging, notebook computers, lights, digital camera, video camera, TV, electric tools, music CD, DVD, electric power whose voltage is in 50Hz, 220V, Design and manufacture as the small AC/DC power supply system, for farmers in remote areas, and posts, fieldwork, small tourist camping It is the necessary perfect product in the portable office, fieldwork, and cutoff.
Accessaries:
1USB 5V interface
2 manual
Operation:
1 When product is produced, the power switch is "OFF", turning "ON" when using.
2. Clicking " Light touch switch ", LED digital diode display "6. ", showing off and on. Meantime, AC220V DC12V output.
3 LED1 is "blue" when solar light charge for built-in battery.
4 LED2 is "green" when built-in battery working on a normal voltage, if turn red, "shows that built-in battery has a low working voltage.
5. LED3 is "red" when output works normally.
|
main parts |
specification |
parameters |
quantity |
|
solar panel |
mono/polycrystalline |
10W |
1pcs |
|
solar battery |
Sealed lead-acid |
6V/12AH |
2pcs |
|
solar control system |
controller |
10A |
1pc |
|
control box |
|
1pc |
|
output |
DC 12V |
12V/10A |
1pc |
|
USB 5V |
5V/500mA |
1pc |
|
reading card acoustics |
Loudspeakers |
4R/10W |
1pc |
|
SD, TFT card,UDisk |
Support2.56M/8G |
|
|
Infrared Remote Control |
|
1PC |
|
Radio |
FM87.5-108 |
1pc |
|
AC Charge |
AC86V~260V |
15V/2A |
1pcs |
|
High Power LED Lamp:12V/3W 12V/0.25A |
1PCS |
|
PRODUCT(CM) |
L40*W7.5*H31 CM |
|
PACKING |
1PC/CARTOM |
L45*W12*H37 CM |
|
Wooden case52*20*47CM 8KG |
|
This system can support: |
|
Design load appliances |
Model |
Load Power |
Quantit |
Daily Working Hours |
Daily Power Consumption |
Continued Working Days |
|
Lighitng |
Fluorescent lamp |
40W |
1 |
2 |
80WH |
1.5Days |
|
Color TV |
21 Inch |
60W |
1 |
2 |
120WH |
1Days |
|
Laptop |
SAMSUNG R528 |
60W |
1 |
2 |
120WH |
1Days |
|
Printer |
Inkjet |
30W |
1 |
0.5 |
15WH |
7Days |
|
Fax |
Inkjet |
150W |
1 |
0.5 |
75WH |
1.5Days |
|
Satellite TV Receiver |
|
25W |
1 |
2 |
50WH |
2Days |
|
Fan |
Haier |
50W |
1 |
2 |
100WH |
1Days |
|
Radio |
SONY ICF-B100 |
3W |
1 |
6 |
18WH |
7Days |
|
Mobilephone |
iPhone 3GS |
2.5W |
2 |
8 |
40WH |
3Days |
|
Intercom |
MOTO |
7.5W |
1 |
6 |
45WH |
2.5Days |
|
Stallite Phone |
MOTO |
12W |
1 |
2 |
24WH |
5Days |
|
GPS |
|
4W |
1 |
4 |
16WH |
8Days |
