| Prod Model: |
LYC1100G |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Cooling Method: |
Water Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |
Self-Starting Diesel Generator |
| Output Type: |
AC Three Phase |

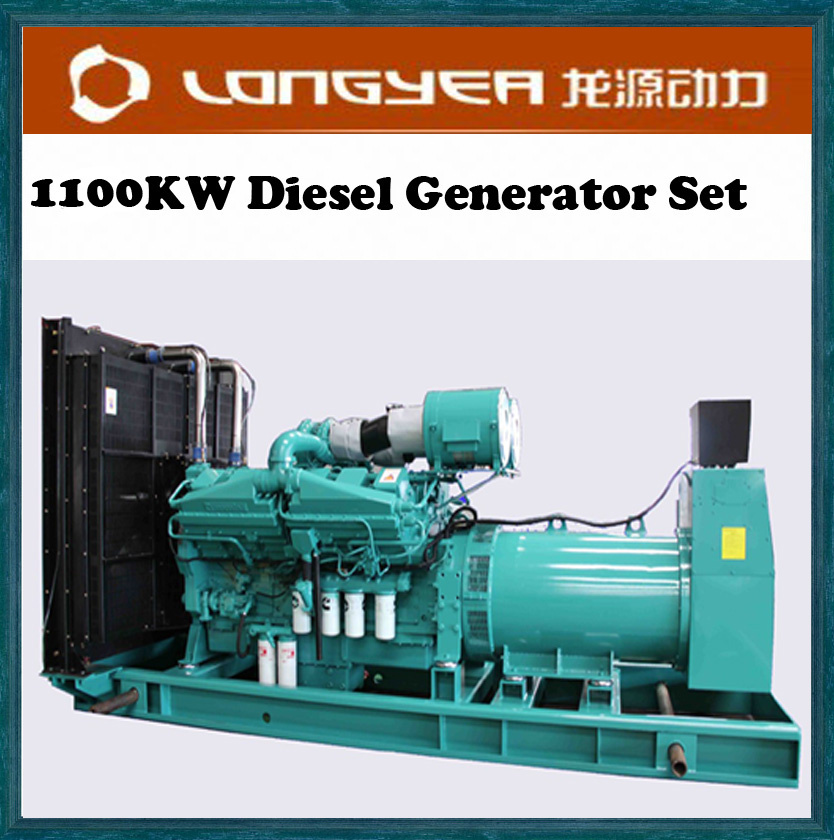

Product Description
1: Powered by brand Cummins
2: Marathon or Stamford Alternator
3: CE/ISO certificate
4. ATS for option
|
Genset |
Gen-set Model |
LYC1100G |
|
|
Standby Power |
1100kW |
|
|
Prime Power |
1000 kW |
|
|
Rated Current |
1805A |
|
|
Power Factor |
0.8LAG |
|
|
Phase Wire |
3P4W |
|
|
Output Voltage |
230V/400V |
|
|
Frequency |
50HZ |
|
|
Dimension |
5000× 1950× 2600 |
|
|
Net Weight |
9743kg |
|
Diesel Engine |
Diesel Engine Model |
KTA50-G3 |
|
|
Diesel Engine |
V-16 cylinder, Four stroke, Direct injection |
|
|
Air intake Way |
Turbo, Intercooler |
|
|
Continuous Power |
1097kW |
|
|
Standby Power |
1227kW |
|
|
Bore × Stroke |
159 mm X159mm |
|
|
Displacement |
50.3L |
|
|
Speed |
1500r/min |
|
|
Starting Way |
24VElectric Motor Starters |
|
|
Min fuel Consumption |
206g/kW. h |
|
|
Oil Consumption |
0.15L/h |
|
|
Cooling Way |
Closed cooling system |
|
|
Compression Rate |
13.9: 1 |
|
|
Oil Pan Capacity |
151/121L |
|
|
Max Exhaust Back Pressure |
10kpa |
|
|
Air intake Flow |
1546 |
|
|
Exhaust Flow |
4231 |
|
|
Exhaust Temperature |
583C |
|
AC Alternator |
Generator Model |
MX-1030-4 |
|
|
Excitation Way |
Permanent magnet
Brushless |
|
|
Cooling Way |
Axial, Self-ventilated |
|
|
Insulation Level |
H |
|
|
Voltage Fluctuation Ratio |
≤ ± 0.5% |
|
|
Voltage Recovery Time |
< 1S |
|
|
Frequency Fluctuation Ratio |
≤ ± 0.25% |
|
Control System |
Controller Model |
GU641CC Harsen H@ K |
|
|
Control Module Model |
|
|
|
Oil pressure under normal work |
Idle Speed |
650rpm |
|
|
|
Rated Speed |
1500rpm |
|
|
Normal Cooling Water Temperature |
86C |
|
|
Low oil pressure alarm level |
140kpa |
|
|
High Coolant temperature alarm level |
98C |
|
|
Starting way |
Self-startup/Manual/Remote Control |
|
|
Communication Interface |
|
Chongqing Longyea Power Equipment Co., Ltd. is situated at Jingkou Industrial Park in Shapingba District, Chongqing, covering an area of 20, 000 square meters. The investment having been made is over US$5, 000, 000.
The company is a hi-tech enterprise engaged in diesel power genset research & development, production & marketing, and authorized to be an OEM Factory of Generator Set by the USA Cummins (China) Investment Co., Ltd. And Chongqing Cummins Engine Co., Ltd.
The Company has advanced measuring & cheecking devices and specialized technical experts. The onshore and marine power gensets manufactured are widely uesd in Army, Ships, Telecommunications, Hotel, Building, Field Construction and Industrial Electricity etc. Power range covers from 20KW(25kVA)--2400KW(3000kVA).
Depending on the increasing technical advantages of Cummins, Chongqing Longyea Power Equipment Co., Ltd. has already been creating high values for the customers, and adhering to a business philosophy of good faith and pursuing excellent quality. Longyea associates are expanding domestic and international markets with indomitable spirit daring to achieve new forward leap in development of the company.
