North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Output:
24-300kw
Fre/Volt:
50/400
Type:
Basic Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Air Cooled
Output Type:
AC Three Phase
Product Description

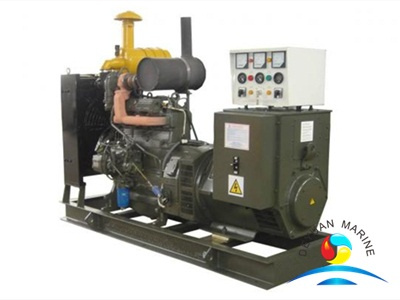

Deutz marine generator set 226B series Deutz marine generator set have a power range from 24KW-120KW. CCS, ZY, BV certificate are available. And the emission can meet the Euro II standard. Deutz generator features: Compact structure, small volume, light weight, strong power, low fuel consumption Little vibration, high reliability, easy start, modular design.
Genset Specification
Engine Specification
Alternator Specification
Unit Appearance
Model
Rated Output
Fre/Volt /
Model
Power/Speed / KW/rpm
Cyl
Fuel Consumption (l/h)
Model
Dimension L*W*H(mm)
Weight (kgs)
KW
KVA
Hz/V
Marathon
Stamford
CCFJ24JW
24
30
50/400
D226B-3CD
30/1500
3
4.8
MP-H-24-4
PM144H
1500*1200*1180
1130
CCFJ30JW
30
37.5
50/400
TD226B-3CD
40/1500
3
5.9
MP-H-30-4
PM144K
1510*1200*1180
1150
CCFJ50JW
50
62.5
50/400
WP4CD66E200
60/1500
4
9.9
MP-H-50-4
UCM224F
1695*1200*1180
1250
CCFJ75JW
75
93.8
50/400
WP4CD100E200
90/1500
4
12.8
MP-H-64-4
UCM274D
1695*1250*1210
1350
CCFJ100JW
100
125
50/400
WP6CD132E200
120/1500
6
16
MP-H-100-4
UCM274E
2125*1250*1170
1640
CCFJ120JW
120
150
50/400
WP6CD152E200
138/1500
6
18
MP-H-120-4
UCM274G
2180*1250*1170
1650
CCFJ150JW
150
187.5
50/400
WP10CD200E200
182/1500
6
19
MP-H-150-4
UCM274J
2520*1250*1530
1950
CCFJ180JW
180
225
50/400
WP10CD238E200
216/1500
6
20
MP-H-180-4
UCM274K
2520*1250*1550
1980
CCFJ200JW
200
250
50/400
WP10CD264E200
240/1500
6
20
MP-H-200-4
HCM434D
2620*1250*1620
2100
CCFJ250JW
250
312.5
50/400
WP12CD317E200
288/1500
6
21
MP-H-250-4
HCM434E
2650*1250*1660
2180
CCFJ300JW
300
375
50/400
WP13CD385E200
350/1500
6
21
MP-H-300-4
HCM534C
2300*1250*1640
2300
More Deutz Marine Genset can be offered, pls contact us for more details.
