North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling Method:
Water Cooling
Stroke:
Four Stroke
Installation Method:
Fixed
Type:
Basic Diesel Generator
Output Type:
AC Three Phase
Product Description

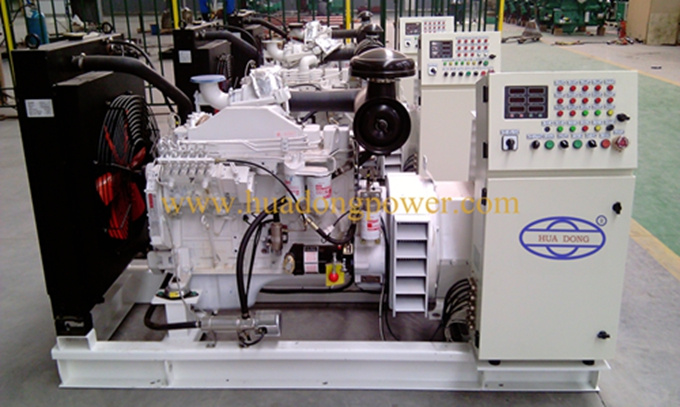

Marine generator set with CCS and BV cert.
Powered by Cummins marine engine and Stamford alternator
With Dual starter method: electric starter and Spring starter or compress air starter
With fuel leak alarm
Gen-set Model
HDC-CCFJ40J-W
HDC-CCFJ50J-W
HDC-CCFJ75J-W
HDC-CCFJ80J-W
HDC-CCFJ80J-W
HDC-CCFJ100J-W
HDC-CCFJ120J-W
Rated Capacity(KVA)
50
63
94
100
100
125
150
Rated Power(kW)
40
50
75
80
80
100
120
Alternator model
UCM224E
UCM224F
UCM274D
UCM274D
UCM274D
UCM274E
UCM274G
Diesel Engine model
4BTA3.9-GM47
6BT5.9-GM83
6BT5.9-GM83
6BTA5.9-GM100
6BTAA5.9-GM115
6CT8.3-GM115
6CTA8.3-GM155
Power of Diesel Engine(kW)
47
83
83
100
115
115
155
Diesel Engine Cooling Mode
Heat Exchanger or Radiator Cooling
Rated Voltage(V)
380 / 400 / 415
Rated Current(A)
72
90
135
144
144
180
217
Rated Frequency(Hz)
50
Power Factor(Lagging)
0.8
Phase & Connection
Three Phases & Three Wires, Y Connection
Rated Speed(r/min)
1500
Fuel Consumption(g/kW.h)
≤225
Starting Mode
Electric Starting \Air Starting or Spring Energy-Saving Device Starting
Weight of Gen-set(kg)
1150
1200
1350
1400
1400
1900
2100
Overall Dimension of Genset
Length
1665
1665
1665
1665
1665
1665
1665
Width
582
582
582
582
582
582
582
Height
908
908
908
908
908
908
908
Remark:
Cooling mode can provide heat exchanger or radiator cooling.
Gen-set can use for marine main gen-set or marine emergency gen-set.
Marine alternator can provide STAMFORD\MARATHON\SIEMENS,enclosure class can provide IP23 or IP44.
Can provide CCS\BV\ABS\GL\LR\DNV and other specific classification certificate.
