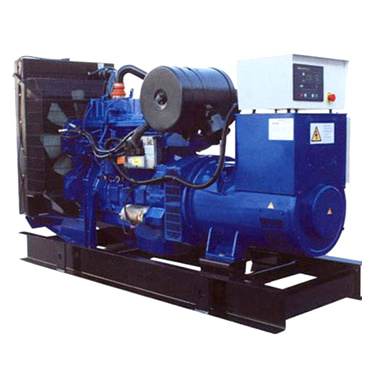

150kVA Perkins Open-Frame Generator Set (ETPG150)

Prod Model:	ETPG150
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Optional
Output Type:	AC Three Phase
Cooling Method:	Water Cooling
Stroke:	Four Stroke
Installation Method:	Fixed
Type:	Self-Starting Diesel Generator

Product Description

Diesel generator set

Generator set model: ETPG150
Prime power: 136kVA/106KW
Engine model: 1006TAG
Options for the diesel generaor set:
Soundproof canopy type, trailer type
50Hz/60Hz, 1500rpm/1800rpm
Single phase/three phase four wires

Generator set feature:
Engine Features:
* Diverse products with full specifications
* Compact structure
* Reliable and steady performance

Generator Set Electrical Features:
* Working cycle: Four-strokes
* Combustion model: Direct injection
* Starting way: DC Batteries
* Cooling way: Radiator with fan & water tank

The Electrical Performance of Diesel Generator Sets
* Power factor: 0.8(lagging)
* Connection way: Three phase four lines
* Ambient temperature: -40C~52C
* Steady voltage regulation rate: ± 1%; Transient voltage regulation rate: +20~-15%
* Steady frequency regulation rate: ± 1%; Transient frequency regulation rate: +10~--7%
* Voltage fluctuation rate: 0.5%
* Frequency fluctuation rate: 0.5%

Generator set coupled AC Alternator
* Standard brands: Etone, Leroysomer
* Optional brands: Marathon\Stamford
* Excitation method: Brushless self-excitation
* Isulation grade: H
* Protection grade: IP21-IP23
* Electromagnetic interference: THF<2%, TIF<50

Control System for generator set unit
* Standard matching brands: Harsen and Comap
* Optional brands: Smartgen, Deepsea
* LED/Graphics/meters indicate unit running parameters
* High water temperature, low oil pressure, low speed, overspeed and others alarm and protected
* Automatically start switching when the main power service fails(optional)
* Multi-gensets with automatic parallel connection control module(optional)
* Functions of remote control interface, remote control, remote test and remote signal(optional)
