| Prod Model: |
XD-PMG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
Customize |
| Bearing: |
SKF |
| Shaft: |
Customize |
| Protect: |
IP54 |
| Insult: |
H |
| Phase: |
Three Phase |
Product Description

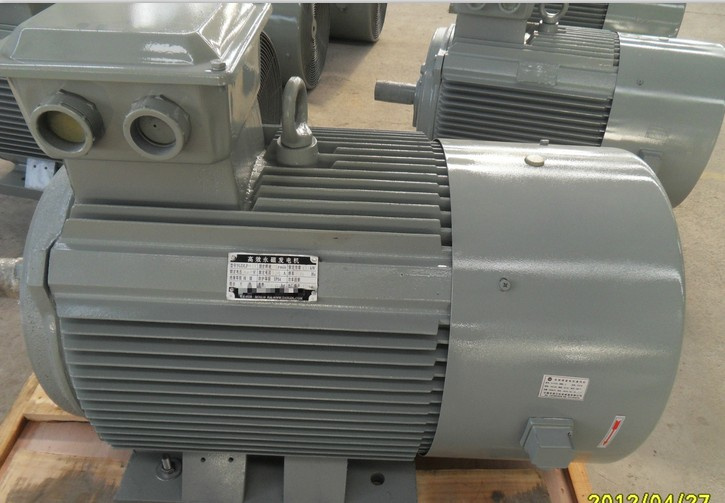

Diesel generator, gas generator, also can use for wind turbine and hydro turbine system, 1500rpm 1800rpm all available
| Power | Voltage | 50Hz Speed | Current | Power factor | Efficiency | Rated torque | Peak torque | Model | Length | Weight |
| 250 kw | 380V | 1500RPM | 395.6A | 0.98 | 93.5% | 1591Nm | 3000Nm | Y315-4M | 1310 | 1100kg |
| 280 kw | 380V | 1500RPM | 443.1A | 0.98 | 93.6% | 1782Nm | 3400Nm | Y315-4L | 1340 | 1170kg |
| 300 kw | 380V | 1500RPM | 474.8A | 0.98 | 93.6% | 1910Nm | 3600Nm | Y315-4L | 1340 | 1220kg |
Xinda Green Energy Co., Limited is specialized in handling the business of vertical and horizontal wind turbine generator, various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, both vertical and horizontal, small hydro turbine system(low head and higher head), wind solar hybrid system, high efficiency high seepd permanent magnet motor, street lamp and so on
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
