North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:
50Hz/60Hz
Cooling Method:
Water Cooling
Stroke:
Four Stroke
Installation Method:
Fixed
Type:
Self-Starting Diesel Generator
Output Type:
AC Three Phase
Product Description

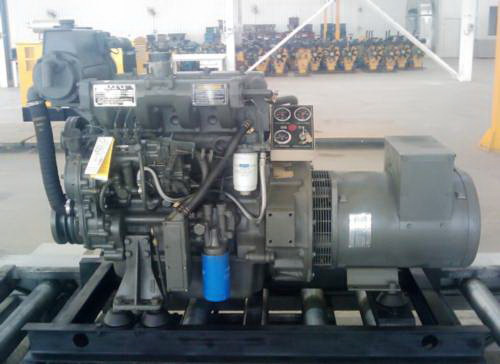

Our Marine Diesel Generator Sets have been widely used in ship navigation, passed the GB/T3020-97, CCS.
Model
Diesel model
Rated power(KW)
Overall dimensions of diesel genset LXWXH(mm)
Net weight(kg)
CCFJ12J
495D4-2
12
1212×550×1038
570
CCFJ16J
495D4-2
16
1330×606×1044
650
CCFJ20J
495D4-2
20
1635×650×1100
900
CCFJ24J
K4100D4
24
1650×650×1135
890
CCFJ30J
R4105D4-2
30
1689×650×1140
920
CCFJ40J
R4105ZD4-2
40
1961×650×1140
885
CCFJ50J
R6105ID5
50
1935×650×1140
1018
CCFJ64J
R6105ZD4
64
1989×650×100
1110
CCFJ75J
R6105ZLD4
75
2300×740×1500
1390
CCFJ90GF
6135ZCAF
90
2864×900×1453
2400
CCFJ120GF
6135AZCAF
120
2954×900×1453
2470
CCFJ150GF
12V135ACAF
150
3105×1114×1453
3700
CCFJ200GF
12V135AZCAF
200
3317×1350×1921
3800
CCFJ250GF
N12V135AZCA
250
3317×1350×1921
3900
CCFJ300GF
6190ZLC
300
4900×1243×2800
8500
CCFJ400GF
6190ZLCA
400
4900×1243×2800
8800
CCFJ120GFC
6CTA8.3G
120
2100×840×1412
1450
CCFJ200GFC
NTA855G1M
200
3000×1000×1541
3360
CCFJ260GF
NTA855G2M
250
3000×1000×1541
3650
CCFJ286GF
NTA855G4
280
3000×1000×1541
4495
CCFJ300GF
KTA19G2M
300
3500×1100×1680
5180
CCFJ400GF
KTA19G4M
400
3500×1100×1680
5180
Saffehanda Company is committed to diesel engines and power generating equipment research and development, production and sales. The leading products of our company are wind turbine(150W-1MW), gas generator set, R series and 495 series diesel engines, diesel generating sets, various complete sets of units and sparing parts etc. Which has a power scope of 2~2000KW, they are extensively used in generating equipments, agricultural machines, engineering machines, camion and boats or ships etc.
We are persisting in the principle of "benefits as the center, market as the direction, quality first and customers foremost". We will continue to innovate and reform in view of the trend of market and the requirement of clients. The company has a strict quality guarantee system and obtains ISO9001: 2000, ISO/TS16949: 2000 quality certificates, R series diesel engines are approved by Chinese CCS and ZY, EURO emission limits, Italian CE, American EPA and Indian CPCB certificates. There are 7 series products has been regarded as high-tech products in Shandong, 22 National patents have been applied, and be known as famous brand in Shandong. We have established the complete marketing network and sound service system. Our products are on sales throughout the whole country, moreover, have been exported to Asia, Africa, America, Europe etc, and have won universal praises from clients at home and abroad.
In recent years, we invested in the new 500-mu top-level casting and foundry center and assembly plant to combine the supply chain and upgrade production level from engine manufactory to the domestic leading diesel generators set supplier. The company developed steadily and was awarded as "high-tech enterprise", "Contract Abiding & Creditable Enterprise", "the 50 top industry enterprises" and the Grade A "Honest Taxpaying Company", "Shandong 100 Outstanding Machinery Industrial Enterprise", "Shandong Machinery Industry Civilization Enterprise", "Shandong 10 innovative Machinery Industrial Enterprise", "Technology-intensive and knowledge-intensive enterprises" etc.
