| Prod Model: |
GDC200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: |
Cummins Brand, Perkins, Doosan, Deutz Is Optional |
| Alternator: |
Stamford, Engga, Marathon, Leroy Somer |
| Controller: |
Dse, Smartgen Is Optional |
| Material: |
100% Famous Material |
| IP: |
23 |
| Function Option: |
ATS, AMS, Synchronization, High Voltage, etc |
| Rated Voltage: |
400/230V, Various Voltage Available |
| Generator Type: |
Open Type/Silent Type /Container Type/Trailer Typ |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Six Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
Product Description

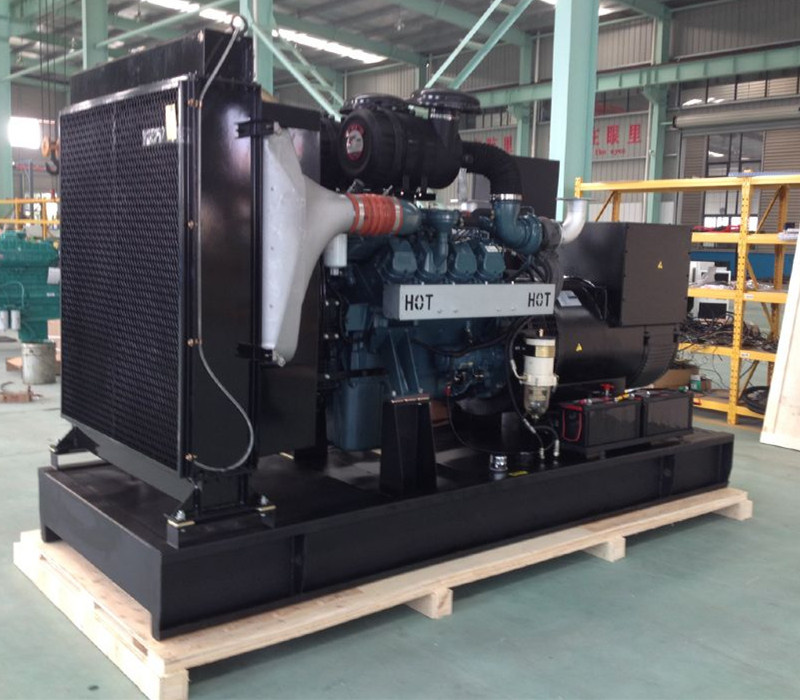

160kW/200kVA Open Frame Disel Generator with Best Price (GDC200)
Gensets model: GDD series
Prime power: 200kVA/160KW
Standby power: 16.5kVA/13KW
Rated Voltage: 400/230V
Rated Current: 360A
Rated frequency(Hz): 50
Rated Speed: 1500rpm
Engine brand: Cummins,Perkins,Doosan etc
Model: NT855-GA
Cylinder arrangement: Vertical in-line
Cycle: Four stroke
Aspiration: Turbocharged and Water/Air cooling
Speed Governor Electronic
Cooling System Forced Water Cooling Cycle
Starting Method DC24V electrical starting
Alternator brand: Stamford Copy Alternator
Model: JDG274K
Number of Phase: 3P
Connecting Type: 3 Phase and 4 Wires
Number of Bearing 1
Protection Grade IP23
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper winding wire
Insulation Class: H.
Control Panel
It includes:
1. Automatic cutter which is suitable for the generator power
2. Turn on key
3. A device to measure the generators speed
4. Counter for measuring the Operating hours
5. Device to measure the current overload with a switched current
6. A device to measure the battery voltage
7. Voltmeter with a voltage exchanger
8. A device to measure the frequency
9. Thermostat to regulate the voltage
10. A device to measure the oil pressure
11. Alerting lamps indicating low and high temperature
12. Controller of the current increase and short circuit
13. Emergency stop button
Our service quality assurance:
1)Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
4)Spare parts supply: We provide all kinds of spare parts and technical support.
5)Main overhaul or maintenance service: We provide perennial major overhaul and maintenance service.
1. Product Configuration
| Diesel Generator Specifications |
| Manufacturer: | Jiangsu Godlike Power Co.,Ltd |
| Model: | GDC200 |
| Prime Power: | 160KW / 200KVA |
| Standby Power: | 176KW / 220KVA |
| Frequency: | 50HZ |
| Voltage: | 400/230V |
| Phase: | 3 Phase |
| P.F(COS¢): | 0.8 |
| Fuel: | Diesel |
| Rated Current: | 288A |
| Start Method: | 24V DC Start Battery |
| Accessory: | Battery, wire, exhaust pipe, muffler |
| Altitude: | ≤1000m |
| Engine Specifications |
| Brand and Model: | Cummins NT855-GA |
| Aspiration: | Turbocharged |
| Cylinder Arrangement: | 6 in line |
| Displacement: | 7.01L |
| Bore and Stroke: | 105×135 mm |
| Compression Ratio: | 16.0:1 |
| Rated RPM: | 1500rpm |
| Maximum Output Power: | 192KW |
| Governor Type: | Electronic |
| 100% Load Fuel Consumption: | 205g/Kw.h |
| Total Lubrication Capacity: | 16.5L |
| Total Coolant Capacity: | 21.0L |
| Cooling System: | Forced water cooling cycle |
| Alternator Specifications |
| Manufacturer: | Copy Stamford |
| Model: | JDF274K |
| Rated Capacity: | 200KVA |
| Winding: | 100% Copper Wire |
| Frequency: | 50HZ |
| Speed: | 1500 RPM |
| Connecting Type: | 3 Phase and 4 Wires, "Y" type connecting |
| Power Factor: | 0.8 |
| Protection Grade: | IP23 |
| Alternator Warranty: | 2 Year No Time Limited |
| Exciter Type: | Brushless, self-exciting, with AVR |
| Insulation Class, Temperature Rise: | H/H |
| Voltage Regulation: | ≥±5% |
| Control System Specifications |
| Manufacturer: | DEEP SEA ELECTRONICS PLC (UK) |
| Model: | DSE6020 |
| Type: | AMF Automatic Operation |
| Operation: | Automatic Start and Auto Mains (Utility) Failure Control |
| Alarm Protect: | Engine pre-heat, Current monitoring, Comprehensive
Shutdown, Charge Failure |
| Size and Weight |
| Open Type Overall Size: | 2850mm*850mm*1350mm |
| Weight: | 1400 KG |
| Soundproof Type Overall Size: | 3400mm*1130mm*1950mm |
| Weight: | 2360 KG |
