South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Dimension:
4000*1500*1920mm
Alternator:
Leateck/Stamford
Controller:
Smartgen
Insulation Grade:
H
Protection Grade:
IP21-23
Start System:
Electric Start
Type:

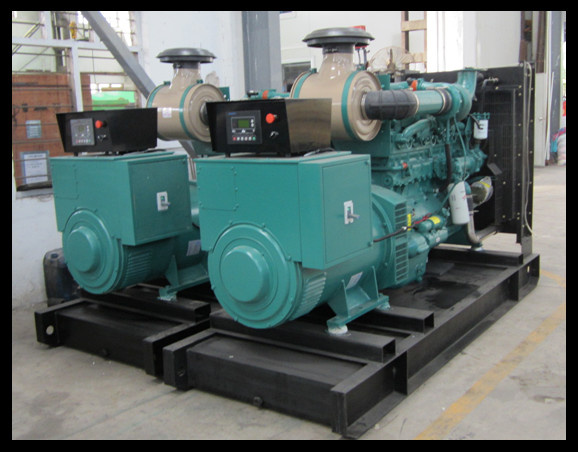

Micro-Computer Control Automatic Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Product Description
Product Description
1.International Warranty Service 2. Short delivery time 3. With ISO9001 SGS & CE Certification 4. Spare parts are easy to get from worldwide market with much cheaper price 5. Coupled with Stamford alternator or Chinese alternator 6. Perfect after-service network 7. Both 50Hz and 60Hz
Model No.
STANDBY POWER
PRIME POWER
ENGINE
ALTERNATOR
CONTROLLER
KVA
KW
KVA
KW
OCL-250
250
200
225
180
6LTAA8.9-G2
LTG274K1
6110
230/400VAC,50Hz,0.8PF (lag),Three phase four wires
Generator set specifications
Governor Class
ISO8528 G3
Potential Drop
1%
Steady Voltage Regulation
1%
Frequency Drop
Synchronous(0%)
Steady-state Frequency
0.25%
R.R.I.Suppression
BS EN 61000-6-4 / BS EN 61000-6-2
Fuel Consumption Rate ,g/kw.h(L/hr)
210(48.84)
Starting Battery Capacity ,A/hrhhr
150*2
Total Coolant Capacity ,L
41
Fuel Capacity (base tank),L
N/A
Engine Data
Model
6LTAA8.9-G2
Type
In-line 6 Cylinder,4 Cycle
Displacement ,L
8.9
Compression Ration
16.0:1
Aspiration
Turbo, Air / Air Cooling
Fuel System
P7100 type Fuel Pump,EFC Electronic Governor
Bore*Stroke(mm)
114*145
Rated Speed ,rpm
1500
Governor Type
Electronic
Starting Voltage
24V ,Negative ground
Battery Charging System
24V 35A
Lubricant Capacity ,L
27.6
Coolant Capacity, L
41
Alternator Data
Protection Class
IP21
Insulation Class
Class H
Temperature Rise in Standard
125 ºC(When Ambient Temp.is 40 ºC)
Excitation Type
Brushless & Self-excited
Waveform Distortion
No load<1.5% Non-Distorting balanced linear load<5%
Telephone Interference(TIF)
<50
Telephone Interference(THF)
<2%
cant System
FAQ(Frequently Asked Question): 1. What is your warranty period? Our payment terms is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period. 2. Does your generator have global warranty? Yes, most of our products like Cummins diesel generator enjoy the global warranty service. And the alternator we use like Leateck also enjoy the global warranty service, so you do not need to worry about the aftersales service. 3. Can you accept OEM? Yes, we can accept OEM. 4. What is your payment terms? We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. 5. What is your delivery time? Our normal delivery time is 20 to 25 days. But if your order is some special engine and alternator, then the delivery time is longer.
Oripo Established in 1998, Oripo Power Engineering Co., Ltd is professional leading manufacturer, suppliers, exporter and authorized dealers of diesel gensets. With over 20, 000 square meters and a staff nearly 200, the headqauter is loacted in Foshan city, adjacent to Guangzhou which is the trade center of Guandong province. We offering power genset, industrial genset, silent genset, weather proof genset, Cummins genset, Perkins genset, Yuchai genset, Shanghai Dongfeng genset, Deutz genset, Weichai electric genset, China domestic genset, silent diesel generator, portable power generator, trailer diesel generator and electric power generator.
Currently, Oripo cooperated with multinational companies formed a strategic partnership. Import CUMMINS, PERKINS series generator sets, and purchase engine from with Cummins, SDEC, Yuchai, LOVOL, Deutz, alternater with STAMFORD, MARATHON, LEADTECH and other international or domestic famous brand. Establish a long-term friendly cooperation relations with the branded engine and alternator company, authorized to be the OEM partner, In 2009, Oripoe authorized by Cummins, Shanghai Dongfeng and Yuchai to provide OEM service. As professional qualified manufacturer provide OEM genset, spare parts, after sale service, in order to better serve customers and laid a solid foundation.
During the last ten odd years, Oripo has been dedicated to pursuing professional production, thus prevailing in the market with its superior quality, cutting-edge technology and tailor-made services. Moreover, with an endeavor to expand our business operations, we adhere to ethical business practices, transparent business dealings and work to attain the confidence and trust of our clients.
