| Prod Model: |
HT2500L~~HT3500L |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Brush |
| Rated Voltage: |
220/110 V |
| Frequency: |
50/60 Hz |
| Rated Power: |
Depend on The Machine Model Choose |
| Fuel Tank Capacity: |
15 L |
| Peak Power: |
Depend on The Machine Model Choose |
| Continuous Running Time: |
10 H |
| Engine Model: |
Depend on The Machine Model Choose |
| Engine Type: |
Single Cylinder, 4-Stroke, Air-Cooled, Ohv |
| Machine Color: |
Yellow or Design as Customer's Requirement |
| Output Type: |
AC and DC(8.3A/12V), AC Single Phase |
Product Description

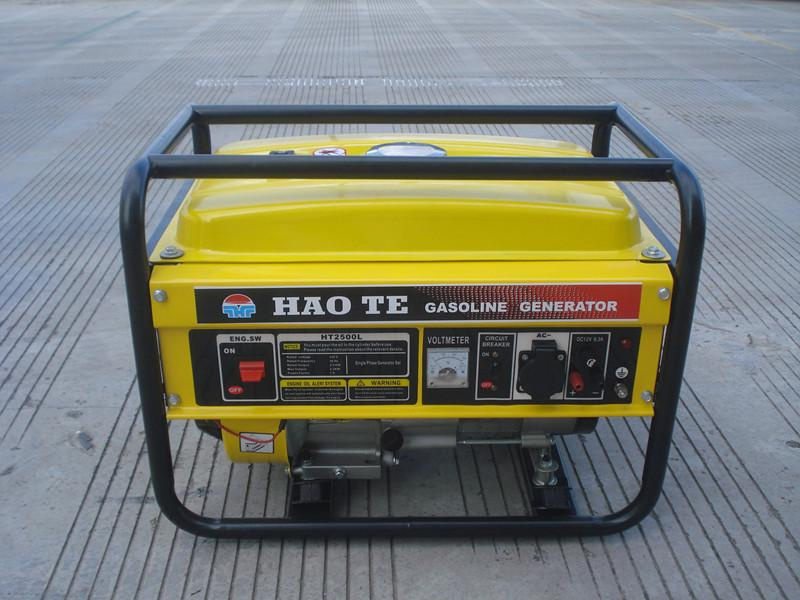

Brush gasoline generator:
Model: HT2500L_HT3500L(general type)
(1)Feature:
*100% copper wire
*Low noise, great power
*Fast starting, low fuel consumption
*high sensitivity of overload protection
*Control Panel protects your control panel from rain, dirt, dust and debris
*Output voltage stability
(2)Usage: Suitable for camp, yacht, home use.
(3)Quality guarantee period: 1 year.
|
Brush Gasoline Generator |
|
MODEL: |
HT2500L |
HT3000L |
HT3500L |
|
Type |
Brush |
|
Voltage Regulator |
AVR |
|
Rated Voltage(V) |
220 |
110 |
220 |
110 |
220 |
110 |
|
Frequency((Hz) |
50 |
60 |
50 |
60 |
50 |
60 |
|
Rated Power(KVA) |
2.0 |
2.2 |
2.5 |
2.8 |
2.7 |
3.0 |
|
Peak Power(KVA) |
2.2 |
2.5 |
2.8 |
3.0 |
3.0 |
3.5 |
|
Power Factor(cosθ) |
1.0 |
|
Fuel Tank Capacity(L) |
15 |
|
Continuous Running Time(h) |
12 |
10 |
10 |
|
Noise Level dB(A)/7m |
68 |
69 |
68 |
69 |
68 |
69 |
|
Engine Model |
HT168FDE |
HT168FDE-2 |
HT170FDE |
|
Engine Type |
Single Cylinder,4-stroke,Air-cooled,OHV |
|
Displacement(cc) |
163 |
196 |
207 |
|
Starting System |
Recoil Starter/Electric Starter |
|
Packing Size(L x W x H) (mm) |
610x 460x 460 |
|
N.W./G.W.(KG) |
41/43 |
44/46 |
45/46 |
|
20Feet Container |
230 |
Zhejiang High-tech Enterprise Co., Ltd, Established in 1986, start to produce the item of gasoline generator, gasoline engine and gasoline water pump in 2003.
In 2009, we built a new factory that set up a strong team with more than 150 staff, covering 4, 000sqm workshop, with the annual output reaching up to 180000PCS, exported to more than 50 countries and regions. The new factory are an integrated enterprise combining research and develop, with production, sales and services.
At the same, sincerely looking forward to cooperating with clients both at home and abroad.
