| Prod Model: |
CDC200KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Electric Generator Automatic: |
200kVA Silent Cummins Diesel Generator |
| Electric Generator Color Optional: |
Any Color Available |
| Electric Generator Engine: |
Cummins Dcec USA Brand |
| Electric Generator Alternator: |
Stamford;Marathon;Leroy Somer |
| Electric Generator Controller: |
Smartgen;Deepsea |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
Product Description

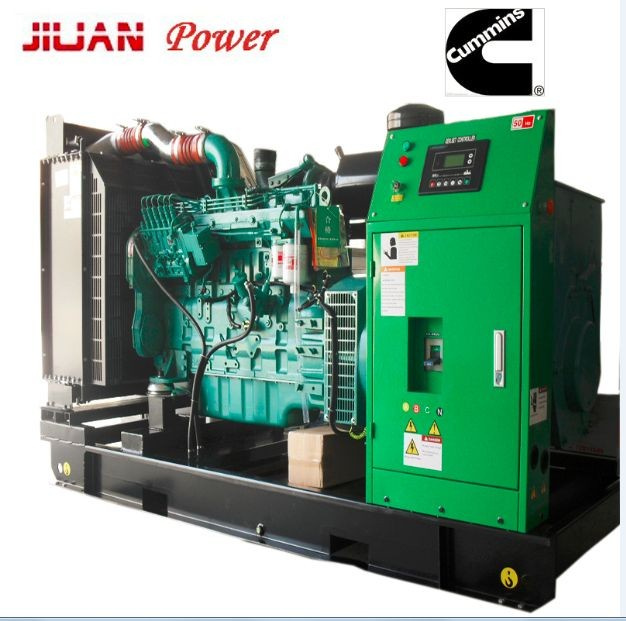

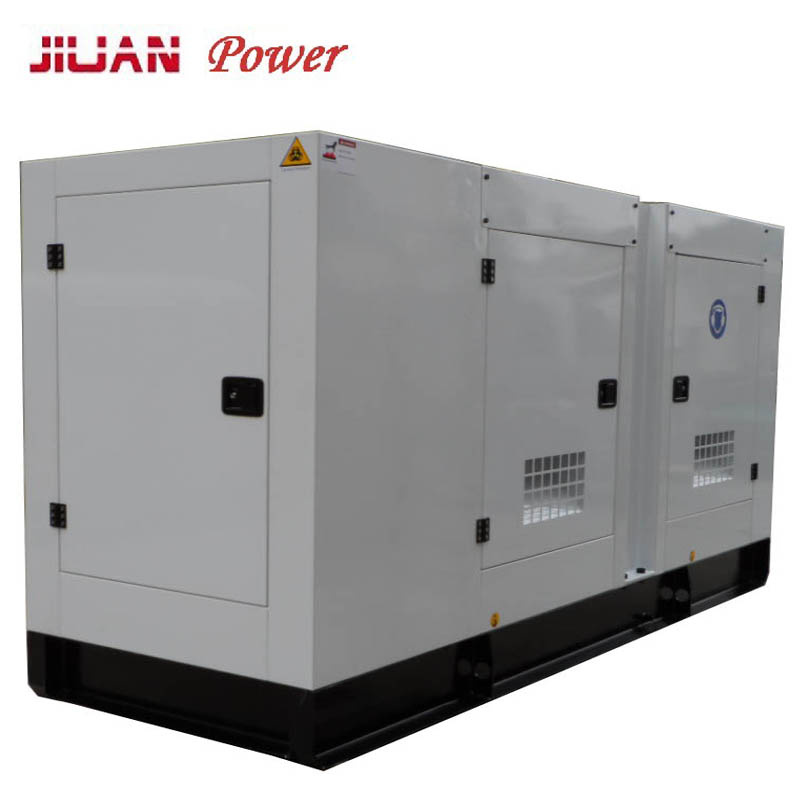

200KVA Silent Cummins Diesel Electric Generator
Generator low noise 65 dB(A) at 1 meters for super silent type
Professional Generator OEM Factory Guangzhou
Engine Perkins Cummins for option
Aternator Stamford brushless with AVR
Generator with Big fuel tank for 8 hours running
JIUAN CERTIFICATE
CUMMINS Authorized OEM Certificate
| 200KVA Silent Cummins Diesel Generator MODEL | CDC200KVA/160KW |
| Powered by Cummins Engine |
| Prime Power (50HZ) | 150KW/187.5KVA |
| Standby Power (50HZ) | 160kw/200KVA |
| Power Factor | 0.8 (Lagging) |
| Phase Wires | 3-phases 4-Wires |
| Start Model | Electric |
| Protection | Low oil-pressure, High water temperature,
Over-speed, Over-current |
| Engine Model | 6CTA8.3-G2 |
| Cylinders | 6 |
| Cylinder Arrangement | L |
| Bore x Stroke(mm) | 114X 135 |
| Compression Ratio | 16.5:1 |
| Speed | 1500rpm |
| Cooling Method | Water – cooled |
| Starting Method | 24V DC electrical start |
| Full Load Diesel Consumption (L/H) | 38 |
| Engine Displacement (L) | 8.3 |
| Inspiration (L) | Turbocharged Intercooler |
| Lube Volume (L) | 24.3 |
| Coolant Volume (L) | 28 |
| Noise (Db) | ≤ 95 |
| Alternator Model | 274G |
| Alternator Power | 160KW/200KVA |
| Voltage | 380v/220v |
| Protection | IP23 |
| Voltage Regulation | ±4% |
| Insulation Class | H |
| Voltage Control | AVR |
| Net Weigh (KGS) | 2150 |
| Dimensions (L x W x H) mm | 2800*1200*1800 (S) |
| 40FT Container | 4 units (S) |
| Optional | ATS (auto transfer switch) |
| | Battery Charger |
| | Base Fuel Tank (for open type) |
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
