| Prod Model: |
SM-300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Sm-600 |
| Type: |
Wind Power Generator |
| Matched Inverter Type: |
Sine Wave |
| Blade Quantity: |
3 |
| Blade Material: |
Carbon Fiber |
| Rated Rotating Rate: |
45 |
| Yaw Mode: |
Mechanical |
| Rated Power(W): |
300/400/600/1000 |
| Rated Voltage (VDC): |
240 |
| Start-up Wind Speed(M/S): |
2.5 |
| Rotating Shaft: |
Horizontal |
| Number Of Blade: |
Three Blade |
| Stress Way Of Blade: |
Lift Force |
Product Description
1. Fan-driven generator
2.15-20 work life
3. Start wind: 1m/s. NO noise
4. Easy installment
5. CE&RoHS

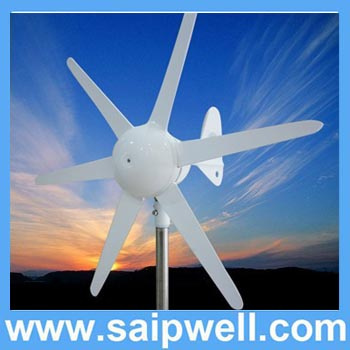

2013 new renewable energy wind turbine 300W 400W 600W 1000W
Specification:
1. Low start-up wind speed.
2. High efficiency, long life,
3. Easy to install
4. CE
Notice:
1. All specifications are subject to change without further notice.
2. Installation of wind power generator system must comply with the laws and regulations in your area, or the consent of the local government.
3. Installation, maintenance and demolition of wind power generation system must under the no wind weather.
4. Wins power generation system including machinery and electronic equipment, make sure the professional construction workers and be safe.
5. Picture color or shape may have physical discrepancy.
6. Don't make wind generator operation in No-loading (no connection battery and load) state.
7. This manual involved in safety mark as follows.
8. Danger: Improper operation will likely cause serious personal injury
9. Caution: Improper operation will likely lead to product damage or personal injury.
Product introduction:
EW series wind generator is small full time operation wind power generator, with small size, easy to installation and use, low cost and higher efficiency and performance etc. Therefore, it's suitable for different kinds of regional and various climate environments.
Performance characteristics:
1. Wind generator controller with intelligent and modular design, simple structure and powerful, reliable and stable performance
2. The Perfect Protection Function
3. Wind blades is made from glass reinforced polypropylene material
4. Wind generator adopt aluminum alloy material, and the weight of the generator is about 16KG
5. Wind generator adopt unique shock profe design, smooth operation
6. Wind generator connect the tower with flange, simple and reliable, or steel lattice.
|
Model |
SM-300 |
SEW-400 |
SEW-600 |
SEW-1000 |
|
Rated power(W) |
300 |
400 |
600 |
1000 |
|
Rated voltage (DCV) |
12 or 24 |
24 or 48 |
24 or 48 |
24 or 48 |
|
Rated current(A) |
25 or 12.5 |
16 or 8 |
25 or 12.5 |
41/20 |
|
Rotor diameter(M) |
0.99 |
1.5 |
1.6 |
1.8 |
|
Start-up wind speed(m/s) |
1 |
2.5 |
2.5 |
2.5 |
|
Rated wind speed(m/s) |
/ |
9.6 |
10.5 |
13 |
|
Security wind speed(m/s) |
45 |
45 |
45 |
45 |
|
wind turbine type |
permanent magnetism 2 phases DC generator |
permanent magnet synchronous generator |
permanent magnet synchronous generator |
permanent magnet synchronous generator |
|
Yaw mode |
mechanical |
mechanical |
mechanical |
mechanical |
|
wind turbine work life(year) |
15-20 |
15-20 |
15-20 |
15-20 |
|
Blade material |
fiber glass |
carbon fiber |
carbon fiber |
carbon fiber |
|
Blade quantity |
6 |
3 or 5 |
3 or 5 |
3 |
|
Guy cable tower height |
6 |
6 |
6 |
6 |
|
Matched inverter type |
sine wave |
sine wave |
sine wave |
sine wave |
|
sine wave inverter price(USD) |
176 |
176 |
204.6 |
204.6 |
|
wind turbine price (USD) |
178.8 |
325 |
436 |
504.5 |
|
blade |
25 |
58 |
74.5 |
91 |
|
wind& solar hybrid controller |
/ |
110 |
124 |
184 |
