Type:
Self-Starting Diesel Generator
Installation Method:
Portable
Stroke:
Four Stroke
Cooling Method:
Air Cooled
Output Type:
AC Single Phase
Product Description
1. Low oil consumption and low price 2. Competitive price and excellent performance 3. 5kVA, silent, single-cylinder, 4 stroke
Characteristics: 1) Powered by air-cooled 4-stroke direct injection diesel engine 2) Its advanced direct fuel injection adopting minimized pump and nozzle insures long life and provides for low fuel consumption, easy starting, quiet running. 3) Dynamic balancer reduces the vibration to a minimum and mades its running more stable and smoothly 4) No fuse circuit breakers for overload protection and convenience 5) Large silent muffler and balancer shaft inside and high efficient noise-proof materials, vibrations, reducing structure combine to form a silent machine 6) Large fuel tank ensures hours of continuous running
WUXI KAIAO POWER MACHINERY CO., LTD

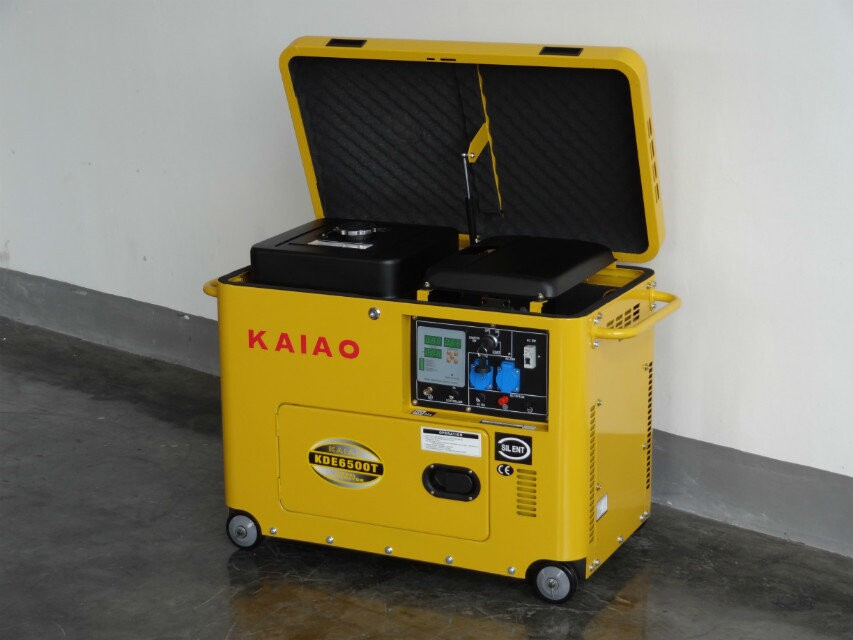

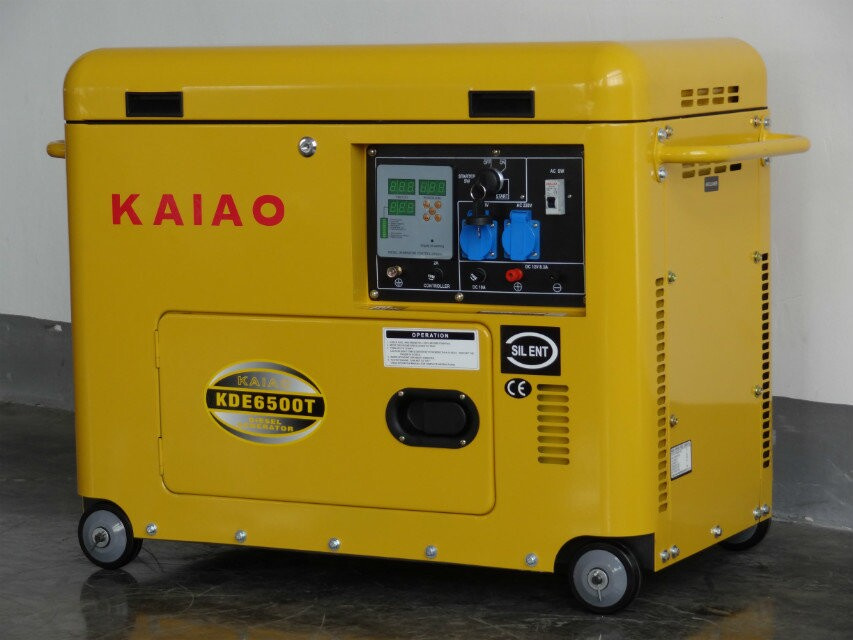

Diesel generator set KDE6500T
Model
KDE6500T
Frequency (Hz)
50
60
Output power (KVA)
4.5
5
Max. Power(KVA)
5
5.5
Voltage (V)
115/230
120/240
Current (A)
39.1/19.6
41.7/20.8
Engine speed (r/min)
3000
3600
Phase
Single
Power factor(cosφ )
1
Excitation system
Self-excited constant voltage
Noise level (7m)
DB (A): 72
Fuel tank capacity (L)
12.5
Structure
Silent
Panel
Ordinary
Outputsocket
Two
DC12V output
Terminal post
Engine Model
KA186FA
Bore*stroke (mm)
86 *72
Displacement (L)
0.418
Power (KW)
5.7/3000
6.3/3600
Fuel consumption rate (g. KW/h)
275.1
281.5
Compression ratio
19
Lubrication system
Spring
Engine starting system
Electric starter
Diesel oil model
Summer: 0#, winter: -10#
Lube oil model
SAE10W-30 (above CD grade)
Lube oil capacity (L)
1.65
Battery capacity(V-AH)
12V-36Ah
Net weight (KG)
170
Dimension(L*W*H)
912× 532× 740
