| Prod Model: |
WPL-6/10/20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Current: |
10A |
| Protection Class: |
IP44 |
| Tech: |
Lighting and Time Control |
| Voltage: |
12V/24V |
| Application: |
Lighting Controller |
| Certificate: |
CE,RoHS |
| Warranty: |
3 Years |
| System: |
Utility Grid Connect system |
Product Description

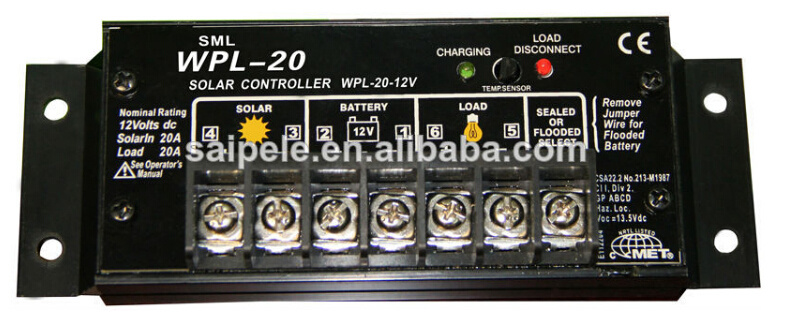

2014 New Waterproof Solar Charge Controller
Specifications
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
1. Eight versions available
2.100% solid state
3. Series design (not shunt)
4. True 0 to 100% PWM duty cycle
5. Setpoint accuracy to 35mV
6. Rated for 25% overloads
7. Fully encapsulated in epoxy potting
8. Marine rated terminals / anodized case
9. Temperature compensation
10. Sealed / Flooded battery select
11. No need to derate
12. Parallel for 40 amps or more
13. Green charging / Red LVD indicators
14. Certifications: CE, ROHS
15. Three Year Warranty
Features
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Electronic protection:
1. Short circuit protection
2. Reverse polarity protection
3. Reverse current protection at night
4. Over charging or discharging protection
5. Over load protection
Display: LCD display: All systems parameters in digital value, system status as symbols
|
Model |
WPL-6 |
WPL-10 |
WPL-20 |
|
Rated Charge Current |
6.5A |
10A |
20A |
|
Rated Load Current |
6.0A |
10A |
20A |
|
System Voltage |
12V |
12V/24V |
12V/24V |
|
Options: |
|
|
Low Voltage Disconnect |
Yes |
Yes |
Yes |
