| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Stroke: |
Four Stroke |
| Type: |
Self-Starting Diesel Generator |
| Cooling Method: |
Water Cooling |
| Installation Method: |
Fixed |

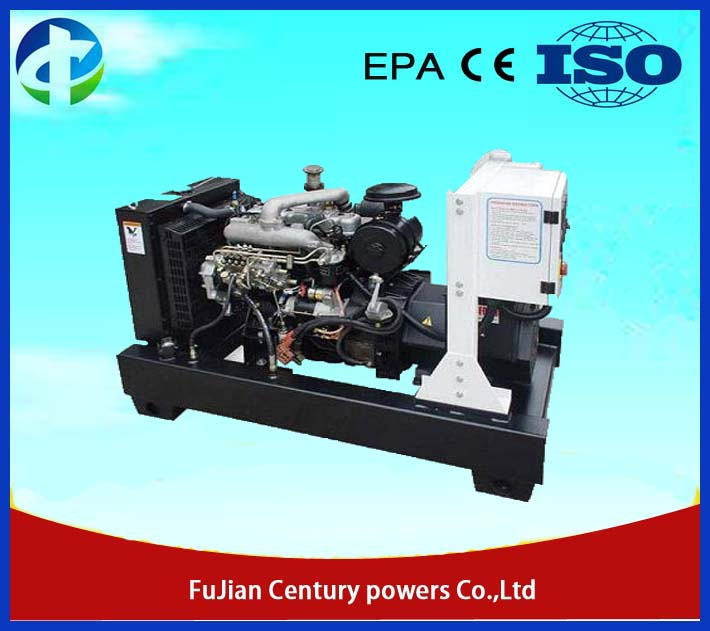

Product Description
Engine:
1. Cummins engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
Alternator:
1. Genuine Stamford, Leroy Somer, Marathon, Engga alternator
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
Control Panel:
1. Automatic control panel (AMF), LCD display
2. Four protection systems
3. Emergency stop
Generator protection
1.Low oil pressure
2.Over temp
3.Over/low speed
4.Charger failure
5.Over crank Stop failure
6.Low/high charger
7. voltage Emergency
8.Common alarm Generating failure
Standard supply scope
Engine |
Alternator |
Cooling radiator |
Controller panel |
Starting battery |
Battery charger |
Main circuit breaker |
Exhaust silencer pipes |
AVR, Base frame |
Base fuel tank |
Manual book |
Wire diagram |
Optional supply scope
Water preheater |
PMG ,ATS |
External daily fuel tank |
Silent canopy |
Lube oil preheater |
Spare parts |
Parallel droop |
Anti-condensation heater |
ABB breaker |
Automatic fuel pump |
Oil drain pump |
Mobile trailer |
Weatherproof canopy |
Synchronization panel |
|
|
Quality assurance
Factory Inspection, the test items before delivery are mainly as follows:
1. Each genset shall be put into commission more than 4 hours totally.
They are tested on idle load, fully load and 10% overload
2. The noise level is tested
3. All of the meters on the control panel shall be tested
4. The appearance of the genset and all of the label and nameplate shall be checked
Warranty Policy
Guarantee for one year or 1200 hours whichever reach first from ex-factory date. During the guarantee period, century powers will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, Century powers provides cost spare parts maintenance of alternator.
Manufacturing standard
GB755, Third part of BS 5000,VDE 0530, NEMA MG1-22,IEC34,CSA C22.2-100 and ASB59
FAQ:
1.Q: What is your MOQ of this item?
A: 1-10PCS
2.Q: What is the lead time?
A: 25-30 days after receiving your L/C or TT deposit.
3.Q: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A: Fuzhou, China Port.
5.Q: What are your payment terms?
A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight.
6.Q: What is your company's available production capacity?
A: 3000-5000 pieces against your orders.
Fujian Century powers Co., Ltd is located in Fuzhou, the core area of Chinese economy. Century powers company is mainly engaged in producing and researching diesel generator, natural gas generator and power plant, besides provide power solution including ATS, paralleling system, noise reduction for customer all over the world. Century powers company is established accordance with ISO9001 international standard quality management system.
With more than 5000 square meters manufacturing and assembling workshop in Minhou industry zone, Century powers owns more tha 50 professional staffs in researching, producing diesel generator. This team has many years experience in researching, producing and servicing disel generator. Century powers company supplys costomers with all kinds of generator including standard generator, silent generator, and trialler generator scope from 5-3300kVA. Multi-paralleling generator can reach 33 sets. Century powers provides intergal power solution on request of different application field such as land application, marine application, minerals field, oil field. As basic power source and movable power source, the products are widely used in power demanding field such as oil filed, high buliding construction, hotel, transporation system, medical system, bank, telecommunication and so on. And these products are mainly sold to countries in south-east Asia, Middle East, Africa, south-America.
Century powers makes a long-term commitment to power solution field, adhering the development concept of "supply outstanding quality, provide excellent service, basing on sincerity, create the brilliancy together".
The main brand of engine includes cummins, Deutz, FPT, Doosan, Google and son on.
