North America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Model No.:
Lnlpg500
Alternator:
Siemens: Brushless, Self-Excited, with AVR, Insula
Controller:
Comap, Deepsea
Ignition System:
Altronic
Lube Oil:
Total Gas Engine Oil 15W-40
Intake Mode:
Turbocharger
Cooling Mode:
Closed or Open Type Water Cooling
Lubrication Mode:
Pressure and Splash
Color:
Yellow or Custom Colors
Get Power:
500kw
Gas Source:
LPG
Power:
500kw
Product Description

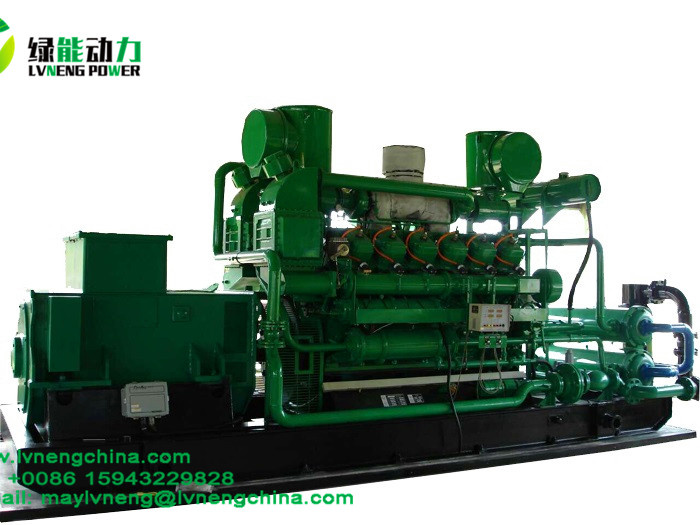

2015 Power Plant LPG Power Generator from China
Product Description
Welcome to the showroom of Jinan Lvneng Power Machinery Equipment Co., Ltd! We are professional and dedicated system supplier of energy production by diesel and gas powered generator set, we are basically a manufacturer of generator set for various kinds of fuel such as diesel, natural gas, biogas, biomass gas, coal gas, coal bed gas(CBM), associated gas and syngas.
Worksite requirements
The worksite needs to meet following basic requirements: a) Ambient temperature between -40ºC~40ºC; b) Relative humidity less than 95%(35ºC); c) Site elevation not higher than 2500m; d) For outdoor installation, simple rain shelter is required.
Gas requirements:
The coal gas must be purified before burning in engine: 1. Gas temperature≤ Local temperature + 15º C(≤ 40º C is better)
2. Gas Pressure can be adjusted from 5-20 kPa, the changing pressure rate ≤ 1kPa/min.
3. Use low-sulfur coal, one set sulfur scrubber is necessary (H2S≤ 200mg/Nm3)
4. If the CH4 covers less than 30%, the total content of CH4 and O2 should not less than 28%, the content of O2 should not less than 16%.
5. Tar and Particulate matter≤ 50mg/Nm3.
6. Diameter of Particulate matter≤ 5μ M, particulate content≤ 30mg/Nm3.
7. Moisture content≤ 40g/Nm3
8. Heat Value of coal gas: ≥ 4.2Mj/ Nm3 Service committee 1. Pre-sale service: 1) We will send our engineer to prospect the site of power station free of charge. 2) According to the situation of site, we will provide design drawings, such as power plant floor drawing, cooling system drawing, genset foundation, control room design, etc. 2. Sale service: 1) Operator training would be conducted by Lvneng technicians during the process of commissioning or Factory training course in China, 2) Installation and commission of the genset would be instructed assisted by Lvneng technicians at site. 3. After-sale service: 1) We have strong after-sale team, we will response within 24 hours and provide technical supports by phone or site guiding, help our clients to gain the biggeset profit. 2) For the quality problem, we will service for you free of charge during the guarantee period. 3) We provide one year guarantee period and lifetime service.
Plentiful spare part supply 1. We have spart parts department, plentiful spare part supply for all genset model will guarantee genset lifetime running. 2.All parts were from original factories or professional factories,complete in specification,keep good quality.
Main spare parts:
Ignition system: American ALTRONIC, including:magneto, high-tension coil,
Starting system: DC24V electric motor.
Mixer: IMPCO
Sparking plug: STITT
scope of application: Biomass gas produced by biomass gasifier, the raw material could be wood, rice husk, straw, nut shell and so on.
Worksite requirements
The worksite needs to meet following basic requirements: a) Ambient temperature between -40ºC~40ºC; b) Relative humidity less than 95%(35ºC); c) Site elevation not higher than 2500m; d) For outdoor installation, simple rain shelter is required.
Parameter of 2015 Power Plant LPG Power Generator from China
Model Number (Engine Type)
LNLPG500
Brand Name
LVNENG
Prime Power/Standby Power
400KW/500KW
Rated Speed
1000/1200RPM
Rated Frequency
50/60Hz
Rated Voltage
400V/230V
Phase
AC 3-Phase, 4 wire
Voltage Stability
≤±2%
Voltage transient
≤±10%
Voltage Stable time
≤1s
Heat consumption
≤9.8mj/kw.h
Lubricant Consumption
≤1.0g/kw.h
Engine Capacity
71.4L
Cylinder Number
12-V
Cylinder Bore
190mm
Stroke
210mm
Starting System
DC 24V electric motor
Cooling method
water cooler
Lubricant method
Passive and flying lubricant
Isolation class
H
Protection
IP23
Alternator
Siemens
Power Factor
0.8 lagging
Exciting method
brushless
Colour
your choice
Certificates
ISO 9001:2008
Warranty
1 year or 1000 running hours which arrives first
Type
Open
Control system
Automatic alarm system
Size
6200x2100x2800mm
Weight
12500kg
Detail Description
Package & Payment & Delivery Date & Warranty
Package: Plastic Package.
Payment: by 30% T/T as deposit, 70% balance should be paid 10 days before shipment. Or 100% L/C at sight.
Delivery: 25 days after we get the down payment.
Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of 12 months from date of despatch or 1000 running hours from date of commissioning whichever date occurs the sooner.

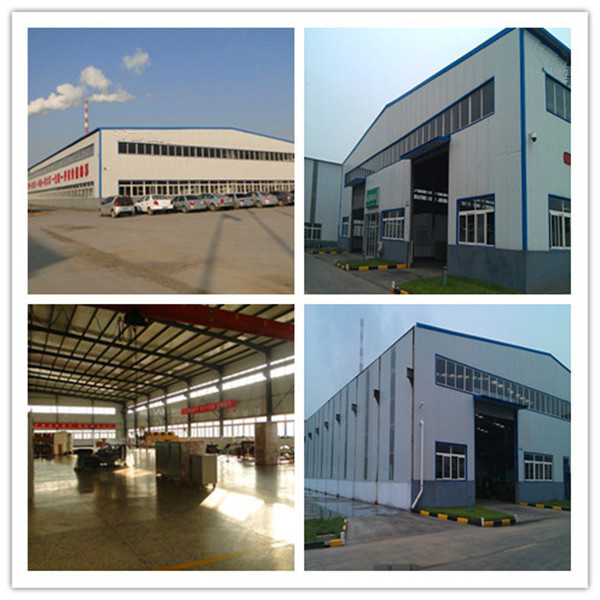

JiNan LVNENG POWER MACHINERY EQUIPMENT Co., Ltd was founded in July, 2009. It's located in high-tech development zone in the east of Jinan city with advantageous geographical position and good transport facilities The Company owns two factory regions research and production, with more than 150 staffs in company. And twenty of them are high-level technical talented person We own developed production line, impeccable quality test system and professional sale and service-after-sell team, and our company is committed to research production marketing and after-sale service of synthesis firm. With our excellent quality product and perfect after-sale service, we won praises and approbation from our customers.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. And our main products are kinds of diesel engines, diesel generator and fuel gas generator, including natural gas generator methane gas generator straw gas generator biomass gas generator sets coal gas generator, coke oven gas generator sets, Mobile power station(Mobile trailer series), Static-speaker unit, Diesel engine and diesel generator sets etc.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
All large, medium and small power products can be produced and the power performance, economical efficiency and reliability are all in the advanced level of this field, with the improvement of R & D department, Our Company install the valve seal and exhaust temperature meter for the products which are out form company, really save fuel consumption/automatic temperature control. For the vast number of users to save a lot of cost, has been widely praised by users
JiNan LVNENG POWER MACHINERY EQUIPMENT CO, . Ltd persist in scientific and technological innovation manage Innovation development direction Always insist on customer-first Business ideas of Mutual benefit, insist on Energy saving and environmental protection Safe and reliable quality policy Insist on fast\Exquisite Standard Service tenet. Inherit" Quality is the first, credit as prerequisite" as Core concept, constantly creating greater value for customers, Promoting sustained and healthy development of the company
"LVNENG, Dedication power \Pursuit excellence" A broad application market, quality products, quality and service will be our cooperation to build a good platform. Join hands with LVNENG success-together. Looking forward to Look forward to working with you.
