Fuel:
Diesel
Rated Output:
200kw
Voltage:
400V/230
Engine Speed:
1000rmp-400rmp
Alternator Excitation Method:
Brushless AVR
Starting:
Air Motor or Electric Motor
Cycle:
Four Stroke
Exciter Type:
Brushless ,Self-Exciting, AVR Automatic Voltage Re
Rated Frequency(Hz):
50/60
Cooling Method:
Water Cooling
Stroke:
Four Stroke
Installation Method:
Fixed
Type:
Basic Diesel Generator
Output Type:
AC Three Phase
Product Description

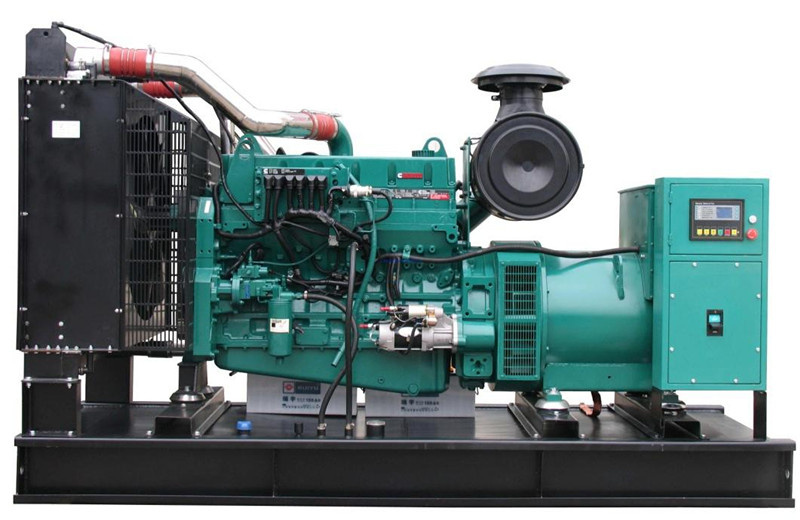

20kw-2000kw four stroke diesel generator set
Characteristics:
1.Meet with: ISO8528, IEC60034, ISO3046; 2.Marine medium speed engine driven, modular construction, Diesel/HFO burning; 3. Brushless self excited alternator with AVR; 4. Application: Marine AUX, Land (EPS) power, Containerized power. 5. Low noise, long TBO, low operating cost.
All engine rating data based on ISO 3046/1; Reference conditions: Ambient 25 centigrade, Total Barometric Pressure: 100kPa, Relative humidity 30%, Intercooler coolant in: 25 centigrade; Fuel characteristics: Related density: 0.84+-0.005, Lower heat value: 42700kj/kg, Consumption tolerance: +5%; Power: An overload of 10% is permitted for one hour in every twelve hours of operation.
You must also like these diesel generator sets:
Delivery Time: 25 working days Period of Validity: In 30days Packing: Wooden packaging or foam packing Terms of Payment: 30% of the total amount prepaid as front money after the contract, 70% of the total amount paid before delivery. Warranty: 12 months or 1000 running hours since discharge of the goods at buyer's place.
Generator Type
Spare
KW
C ommon
KVA
Engine model /Power (KW)
Lube Capacity (L)
Fuel Consumption
(G/kW.H)
Weight (kg)
Demensions(mm)
LxWxH
AV -D20GF
20
25
D226B-3D/30
35
215
800
1800x740x1000
AV -D24GF
24
30
D226B-3D/30
35
215
800
1800x740x1000
AV -D33GF
30
37.5
TD226B-3D/45
35
208
850
1880x740x1000
AV -D50GF
50
62.5
TD226B-4D/60
35
205
1200
2000x800x1100
AV -D64GF
64
80
TD226B-6D/90
35
198
1350
2200x900x1200
AV -D75GF
75
94
TD226B-6D/90
35
198
1350
2200x900x1200
AV -D90GF
90
112
TBD226B-6D/120
35
198
1600
2300x900x1200
AV -D100GF
100
125
TBD226B-6D/120
35
198
1600
2300x900x1200
AV -D120GF
120
150
TBD226B-6D5/132
35
198
1600
2300x900x1200
AV -D150GF
150
200
WD615.68D-15/170
30
208
2100
2600x1100x1400
AV -D200GF
200
250
BF6M1015-GA/231
36
203
1900
2500x1000x2240
AV -D220GF
220
275
BF6M1015C-G1A/250
36
203
1900
2800x1200x2240
AV -D250GF
250
313
BF6M1015C-G2A/285
36
203
2000
2800x1200x1780
AV -D280GF
280
350
BF6M11015C-G3A/314
36
203
2000
2800x1200x2240
AV -D300GF
300
375
BF6M1015C-G4/345
36
203
2100
3000x1200x2240
AV -D320GF
320
400
BF6M1015CP-G/365
36
203
2100
3000x1200x2240
AV -D3 8 0GF
380
475
BF8M1015C-G1A/418
47
208
3700
3300x1440x2240
AV -D400GF
400
500
BF8M1015C-G2/440
47
208
3800
3300x1440x2240
AV -D4 20 GF
420
525
BF8M1015CP-G1A/459
47
208
3800
3300x1440x2240
AV -D4 50 GF
450
563
BF8M1015CP-G2/490
47
208
3800
3300x1440x2240
AV -D4 60 GF
460
575
BF8M1015CP-G3/509
47
208
3800
3300x1440x2240
AV -D4 80 GF
480
590
BF8M1015CP-LAG4/530
47
208
3900
3500x1440x2240
AV -D 5 00GF
500
600
BF8M1015CP-LAG5/560
47
208
3980
3550x1440x2240
Beijing Avespeed Commercial & Trading Co., Limited is the leading manufacturer and supplier of diesel engines for marine propulsion, marine Gen-sets, stationery Gen-sets and power plant applications in China. AVESPEED manufactures diesel engines with unit output from 150KW to 4500KW, which can be used as propulsion of merchant vessels and special vessels from 1000 to 30000 tons DWT. AVESPEED manufactures marine auxiliary diesel generators with unit output from 150KW to 4500KW and stationery HFO generators with unit output from 500KW to 8000KW.
AVESPEED designs and builds turn-key power plant with an output up to 100MW as base load power plant, peaking power plant or industrial self-captive power plant in cement, textile, mining or oil and gas industries etc. The power fuel can be diesel oil, bio-diesel, heavy fuel oil (HFO) or bi-fuel. AVESPEED has been set up more than 200 heavy fuel oil (HFO) power plant projects in the world in recent years, especially in Nigeria, we have set up more than 60 HFO power plant projects there.
All of our marine diesel engines have achieved type approvals and work test approvals of, CCS, China Ships Inspection Bureau, and China Fishing Ships Inspection Bureau. Many products are rated as "National Grade New Products" and "Industry Brand Products" and awarded with "National Prize for Progress in Science and Technology", Now AVESPEED diesel engines are widely used for deep sea fishery, inshore fishing ships, ocean shipping, inland water navigation, passenger cargo ship transport, harbor tug, engineering ships, enforcement ships, naval auxiliaries etc.
New energy products developed in recent years including natural gas generator sets, biomass generator sets, tyre oil/vegetable generator sets and dual-fuel generator sets with unit output from 50KW to 1000KW.
AVESPEED also involves in the development and manufacture of the crystal silicon (mono and poly) solar panel/module, photovoltaic system, and other photovoltaic products. We supply solar panels ranging from 45W to 290W. AVESPEED's on-grid and off-grid inverters are the sole in China certified by TUV. The PV inverters range from 1KW to 1000KW.
Our products and manufacturing processes fully comply with product safety requirements, including TUV/IEC61215 & 61730, CSA/UL1703, MCS, CE and UKAS. Additionally, we have implemented best practices to protect the environment and conserve energy.
So far, our customers spread dozens of countries and regions in Europe, Middle East, Africa, South America, Southeast Asia and West Asia. AVESPEED is willing to cooperate with relevant famous enterprises and far-sighted, strong-willed and talented people at home and abroad by supplying our high-quality products and excellent service.
