| Prod Model: |
CW-20GFT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Chargewe |
| Engine Brand: |
Weichai |
| Engine Model: |
Cw4105 |
| Phase: |
3p4w |
| Rated Frequency: |
50Hz |
| Cylinder No.: |
4 |
| Cylinder Diameter: |
105mm |
| Stroke: |
125mm |
| Rated Speed: |
1500r/Min |
| Rated Current: |
36A |
| Gas Source: |
Natural Gas |
Product Description

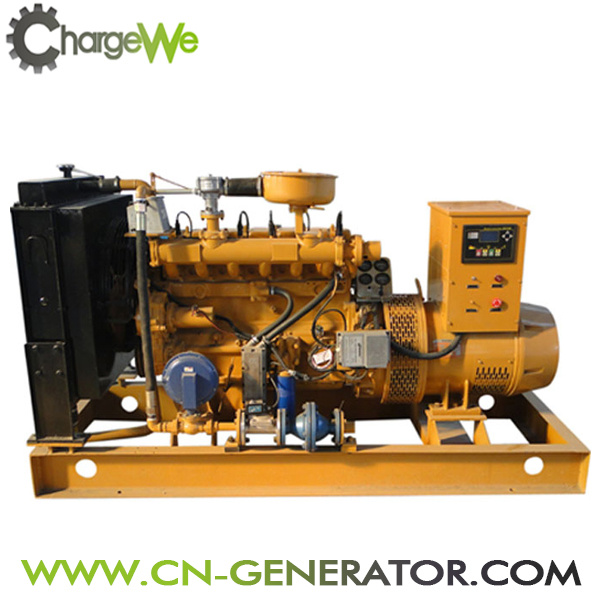

20kw Biogas Biomass Gas Nature Gas Generator Set (20kw-100kw):
I.Products introduction:
190 Series Methane Biogas Power Generators are made by JICHAI (Jinan Engine Factory) by cooperating with AVL from Germany and Austria.
JICHAI is the first and the largest engine manufactures in China since 1953.
Jichai engines factory is affiliated to CNPC (China National Petroleum & Oil Corporation), those diesel and gas engines work extensively in 95% of China oil fields and coal mines, and enjoy hot markets in more than 70 countries all over the world.
The quality is good while price is competitive.
II.Our products:
Applicable fuel for 190 Series Methane Biogas Power Generator has a wide range of methane based gases (natural /PNG/LNG/CNG, oil field gas, biogas, landfill gas, Methane Gss, marsh gas, coal mine methane gas and shale gas etc.).
III.Our advantages:
1.High quality
2.Stable stock
3.Competitive price
4.Technologist
Technical Parameters:
| Model | CW-20GFT |
| Engine No. | CW4105 |
| Gas max type | Outside |
| Rated power | 20kw |
| Rated voltage | 400V/230V |
| Phase | 3p4w |
| Rated frequency | 50Hz |
| Rated speed | 1500r/min |
| Rated power factor | 0.8 |
| Rate current | 36A |
| Heat consumption | ≤11.5mj/kw.h |
| Press | 3-20kpa |
| Cylinder No. | 4 |
| Cylinder diameter | 105mm |
| Stroke | 125mm |
| Compression ratio | 11:01 |
| Intake mode | Nature intake |
| Sparking mode | Sparking plug |
| Voltage regulation mode | Automatic |
| Speed regulate mode | Electronic speed regulate |
| Lubricating mode | Press and plash |
| Cooling mode | Circulating water cooled |
| Starting mode | 24V electric motor |
| Overhaul time | ≥2500 |
| Noise | ≤105 |
| Exhaust temperature | ≤650ºC |
| Displacement | 2.8L |
| Size | 2200×850×1300 |
| Weight | 900kg |
Shandong Chaiwei Power Equipment Co., Ltd is a comprehensive high-tech enterprises in China with more than 15 years experiences, focusing on new type of environmental protection generators' development production and sale. We have our own brand "CHARGEWE" generator set, including diesel generator set, biogas generator set, nature gas generator set, biomass generator set, coal gas generator set etc. From 20kw to 1000kw with CE & ISO9001: 2008 certificate, Besides we also offer the diesel engine and spare parts for gas/diesel generator set. Our products have been exported to Middle East, South America, Southeast Asia, Russia, Eastern Europe and have got a high reputation on the domestic and overseas market.
About the products, we have self-developed team to design and improve the generator sets to meet different customers` need. So the OEM and ODM are available. We have completed quality inspection system to make sure each product that customer get is perfect, and the professional after-sale team to guarantee your generator set be correctly installed and running normally. CHARGEWE will bring best products and service with most reasonable price for you. From the foundation of our company, we committed to leading as pioneer of the generator industry and contributing ourselves for China's electricity industry. We believe CHARGEWE will be your best partner in generator area.
