Prod Model: |
20kw |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Warranty Period: |
1500 Hours or One Year Which Comes Fir |
Gas Source: |
Natural Gas |
Product Description

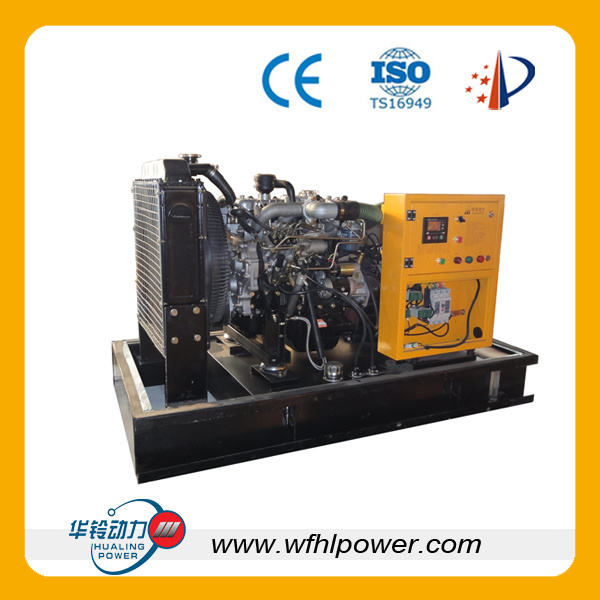

20kw gas generator set
1. Specifications
Adopt ISUZU gas engine and Marathon alternator
Automatic malfunction monitor, automatic shutdown protection.
Type of fuel: Natural Gas, LPG, Bio Gas,
12 years' experiences
2. Advantages:
1) Adopting advanced Hall ignition sensor and Highly capable ignition system, the engine ignition will be more reliable, and easier to start.
2) Main control parts are all the most advanced imported ones, to make more stable and reliable running.
3) Several gensets can be parallel connection or parallel net, which can increase the total power range. In addition, the gensets can take maintenance in different times, which will make little influence to the normal performance of gensets.
4) Low gas pressure is acceptable, no need to set up specified gas storage tank, which will save the investment and enhance the efficient output power.
5) Self-contained parts of gensets needs few accessories
6) Economical and low-cost running.
7) The fuel of gas reduces the accumulated carbon, which lessen the damage to between cylinder and valve, therefore, it will largely prolong lifetime.
8) The installation of high-quality control cabinet set enable mutiple protection, which enhance the safety for the running of gensets.
Generator set parameter: |
Rate output |
20KW (37.5KVA) |
Basic electric parameter |
50Hz, 1500rpm, 3Phase 4 wire, 400V |
Engine Protection System |
Stop engine automatically when it is in high water temperature, low oil pressure and over-speed |
Noise Level in 7M (DB) |
≤90 |
Fuel |
CNG,LNG,LPG,Pipeline gas |
Fuel Consumption |
6.0 m3/h |
Shell |
Weather protective and soundproof shell |
Gross Weight (KG) |
1450 |
Dimension (MM) |
2050*1000*1500mm |
Engine parameter: |
Engine |
Four stroke, inline four-cylinder, Water cooling, the spark Plug ignition, electronically controlled multi point sequential injection, dry-type thin-wall cylinder liner |
Make/Model |
HL.493CNG (Engine base:ISUZU) |
Rate power |
68KW/1500Rpm |
Bore and Stroke |
93 X 102mm |
Compression ratio |
12:01 |
Rated speed |
3600r/min |
Idling speed |
800±50 r/min |
Displacement |
2771 cc |
Ignition model |
EUC electronically controlled ignition |
Alternator parameter: |
Make/Model |
MARATHON |
Output |
20KW/25KVA |
Voltage |
400V |
Type of bearing/Brush |
Single/Brushless Self excitation |
Weifang Hualing POWER CO. Ltd. It is located in the Power city, WEIFANG. With the integration of R&D, Design, Producing, Marketing and whole project construction, specializes in Energy, Electricity power, energy-saving, Environmental protection project.
The company has been identified OEM certificates by 8 World famous Engine group, ISO9001 quality management system certification, China energy-saving product certification. The company invested 2.6 billion RMB in the product line, and now is the first and top diesel engine and gas engine product line.
We produced a series multi-point injection electronic control engine and report to the National Development and reform commission, series of engines on the HL. CNG special report on current trends.
Since 2008, the product of HUALING Power Co., Ltd. Enter to the oil industry, develop and produce wellhead gas generating set, now has been widely used in the CBM oil brand and running in the subsidiaries.
