Cummins Engine:
Silent Diesel Generator
Type:
Basic Diesel Generator
Installation Method:
Portable
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Product Description

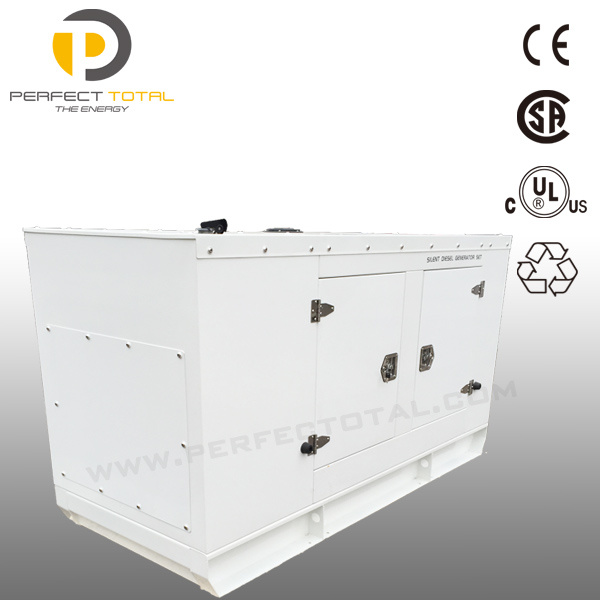

25.6KW standby silent genset with PERKINS engine
Quick Details
Place of Origin:Zhejiang, China (Mainland)
Brand Name:PERFECT TOTAL
Model Number:24EPTP
Output Type:AC Three Phase
Speed:1800rpm
Frequency:60hz
Rated Power:25.6kw
Rated Voltage:220/380v
Rated Current:63A
Product Name::25.6KW standby silent genset with PERKINS engine
Engine brand::PERKINS BRAND 404D-22TG
Alternator Brand::Stamford/ Leory Somer/ MECC
Noisy Level::65dba
Fuel tank Capacity::93liters
Bottom Forklift::Yes
ATS::OPTION
Frequency::50 hz or 60 hz
Steel::Cold Rolled plate
Controller::COMAP/DEEPSEA
genset Model Soundproof diesel generator set
24EPTP
SET
Rated power(Kw/kva) Prime power
25.6KW
Frequency(Hz)
60
Phase
3
Voltage(V)
220/380
Current(A)
63
Fuel capacity(L)
93
Fuel consumption(L/Hour)
100% Prime power
8.3
Dimension (mm)
L
2200
W
950
H
1380
Weight(kg)
900
Noice level for silent type (Db/7m)
65
ENGINE
Model
404D-22TG , PERKINS BRAND
Prime power(kw/kva)
25.6kw
Cylinders
4
Bore×stroke(mm)
84×100
Intake Method
Natural intake
Displacement(L)
2.216
Speed governing
Mechanical governor
Cooling starting method
Water cooling
ALTERNATOR
Model
PI144E
Rated power(kw/kva)
25.6/32.1
Insulation class
H
Alternator enclosure
IP23
THIS SET COULD BE OPERATED ON 100% OF THE POWER CAPACITY AT ALTITUTE OF 1500M, AMBIENT TEMPERATUR OF 50°C. WE RESERVE THE RIGHT TO EXPLAIN THE TERMS OF THIS SPECIFICATION.
