| Prod Model: |
LF3800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Optional |
| Rated Power: |
2kw |
| Max Power: |
2.2kw |
| Dimension: |
600*440*445mm |
| Output Type: |
AC Single Phase |
Product Description

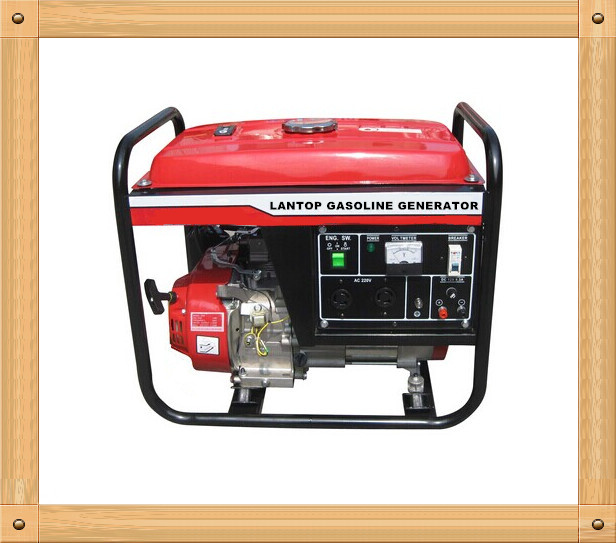

Our Gasoline generator set:
With strong commercial engine. Generator set with AVR, Voltage adjust. Low Oil sensor protection. Cradle, Overall protection, easy move and storage. Widely option for control panel, EU, AU receptacle for choice. Self-start and remoter start as an optional. Frequency, 50/60 Hz. Voltage, including, 110/150/120/220/230/240V to be optional. Wheels and handle optional
Start, Recoil or E-start. Single Phase or Three Phase, (380/400V)optional.
Engine Features
Overhead valve (OHV) design, lower operation temperature, powerful drive and reliability and durability, and it save more oil. Cast iron casing does not only effectively improve lubrication, but also makes engine more wear-resistant and prolongs engine life. Automatic alarm and stop at low oil level, which prevents the engine to work at low oil level and gives more protection to engine. Metal cam and forged crankshaft makes engine more reliable and durable.
Alternator Features
Alternator full power design
Alternator brushless type design, free maintenance cost
Alternator IP23 protect
Alternator F class insulation
Alternator single bearing design
Alternator with aluminums cooled fan
Multiform voltage choose including, 110/220/230/240/380V
|
GASOLINE GENERATOR |
|
MODEL |
LF1500 |
LF2500 |
LF3000 |
LF3800 |
LF6500 |
LF7500 |
LF8500 |
|
RATED POWER(W) |
1000 |
2000 |
2500 |
2800 |
5000 |
6000 |
7000 |
|
MAX POWER (W) |
1200 |
2200 |
2700 |
3000 |
5500 |
6500 |
7500 |
|
VOLTAGE(V) |
220/110 |
220/110 |
220/110/380V |
220/110/380V |
220/110/380V |
220/110/380V |
220/110/380V |
|
CURRENT(A) |
5.4 |
9.1 |
11.4 |
13 |
23 |
25 |
27 |
|
FREQUENCY(Hz) |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
|
ENGINE |
|
|
MODEL |
LF154F |
LF168F |
LF168F-II |
LF170F |
LF188F |
LF190F |
LF192F |
|
TYPE |
SINGLE-CYLINDER, 4STORKE |
SINGLE-CYLINDER, 4STORKE |
SINGLE-CYLINDER, 4STORKE |
SINGLE-CYLINDER, 4STORKE |
SINGLE-CYLINDER, 4STORKE |
SINGLE-CYLINDER, 4STORKE |
SINGLE-CYLINDER, 4STORKE |
|
DISPLACEMENT |
80cc |
163cc |
196cc |
212cc |
389cc |
420cc |
432cc |
|
HORSE POWER |
3.0HP |
5.5HP |
6.5HP |
7.5HP |
13HP |
15HP |
17HP |
|
FUEL |
GASOLINE |
GASOLINE |
GASOLINE |
GASOLINE |
GASOLINE |
GASOLINE |
GASOLINE |
|
FUEL TANK CAPACITY |
5.0L |
15L |
15L |
15L |
25L |
25L |
25L |
|
STARTING SYSTEM |
RECOIL START |
RECOIL START/KEY START |
RECOIL START/KEY START |
RECOIL START/KEY START |
RECOIL START/KEY START |
RECOIL START/KEY START |
RECOIL START/KEY START |
|
NOISE LEVEL(AT 7M) |
62DB |
65DB |
65DB |
65DB |
74DB |
74DB |
74DB |
|
DIMENSION(L*W*H) |
460*375*375MM |
600*440*445MM |
600*440*445MM |
600*440*445MM |
700*530*540MM |
700*530*540MM |
700*530*540MM |
|
N.W(KG) |
23 |
40 |
40 |
40 |
80 |
83 |
85 |
Taizhou Green Sail Mechanical & Electrical Co., Ltd. Specializes in the developing, producing and selling of gasoline and diesel generators, engines and water pumps.
Our company locates in luqiao, taizhou. It covers an area of 1, 0000 square meters and has more than 100 staff. Our production capacity of gasoline Engine, generator and water pump is one million unit per year. It has a group of well-trained skilled technician and has owned advanced production line equipment.
It has been awarded several times by relevant authorities such as the "Science And Technology Advancement Award"and"High Grade Products Awards". We have obtained IS09001: 2008 international quality certification in addition o GS, TUV, CE, CCC certifications. Also set up a complete range of production techniques and quality inspection system, which has export authority. Our products have high reputation not only in China market, but also in world-wide market, especially in Southeast Asia, Europe, Africa and Middle East etc.
Lufan take" epay nation"and"ervice commonalty"as our responsibility. We continually try to develop, strengthen and innovate by dealing idea, scientific management, outstanding person, advanced technology, high_quality products and excellent service.
We sincerely welcome all businessmen from all over the wold to our company for cooperation and joint development. Also wishjto March toward bright future hand in hand with everybody.
