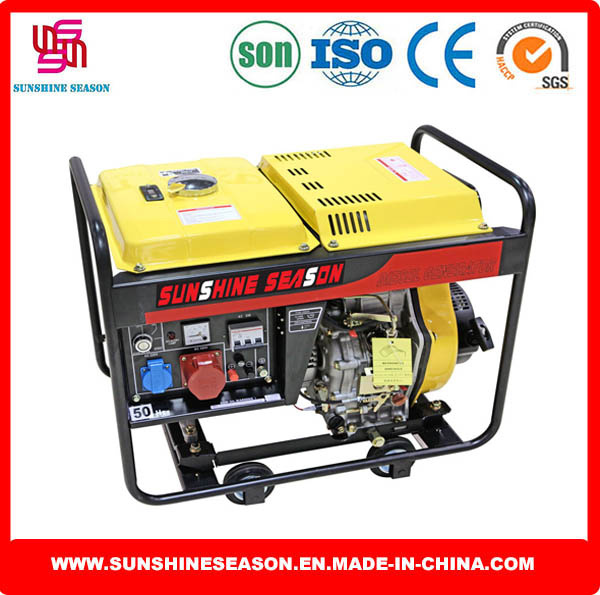

| Prod Model: |
SD2500X |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Sunshine Season |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Air Cooled |
| Output Type: |
AC Three Phase |
Product Description
1. Product describution:
1>.Lower consumption, lower noise, lower pollution, high efficiency and environmental frienly
2>.Strict testing system, stable voltage and frequency
3>.Secured ground terminal
4>.Stranger automatic start up system, starting with 1-5s
5>.Smart in size, delicate in style, longer service life
6>.Very diversified and customized choices
| Genset set | Model No. | SD2500X open | SD2500E open |
| Rated frequency (Hz) | 50/60 | 50/60 |
| Rated voltage (v) | 230 120/240 | 230 120/240 |
| Rated current(A) | 12.2 25/12.5 | 12.2 25/12.5 |
| Rated output power(kW) | 1.8 2.0 | 1.8 2.0 |
| Rated rotation speed(rpm) | 3000/3600 | 3000/3600 |
| DC Output | 12v 8.3A | 12v 8.3A |
| Power factor | 1 | 1 |
| Phase number | Single phase | Single phase |
| Noise level dB@7m | 78 | 78 |
| Overall dimension (L*W*H)MM | 675x470x550 | 675x470x550 |
| Net weight | 65 | 70 |
|
|
|
|
| Engine | Engine type | ID170F | ID170FE |
| Structure type | Single cylinder , in lined 4 stroke, air cooled direct injection | Single cylinder , in lined 4 stroke, air cooled direct injection |
| Bore * stroke mm | 70x55 | 70x55 |
| Displacement ml | 211 | 211 |
| Compression ratio | 20:01 | 20:01 |
| Rated output(kw/rpm) | 2.5/3000 2.8/3600 | 2.5/3000 2.8/3600 |
| Lubrication system | pressure splashed | pressure splashed |
| Lue oil brand | Above CD SAE 10W 30 15W 40 | Above CD SAE 10W 30 15W 40 |
| Staring system | Recoil starter | 12V Electric starter |
| Starting motor capacity | N/M | 12V 0.8kw |
| Charging generator capacity | N/M | 12V 3A |
| Battery capacity | N/M | 12V 0.8kw |
| Fuel consumption rate(g/kw.h) | 3000rpm 280,3600rpm 288 | 3000rpm 280,3600rpm 288 |
| Fuel type | Diesel 0# or 10# 35# | Diesel 0# or 10# 35# |
| Fuel tank capacity (L) | 15 | 15 |
| Continuous Running time(H) | 14 | 14 |
2. Our Company Description:
SUNSHINE SEASON INDUSTRY (CHINA) CO., LTD., a company with its own power products factory, our power products are based on the earliest factory in China, is an export-oriented joint-stock enterprise, it integrates engine and generator R&D, production and sale of one. And we also offer many famous brands generators, water pumps & engines, such as Original ELEPAQ, PM&T, TIGER, TIGMAX, SZTIGER, ERMA, SUNSHINE SEASON, etc. Brands, we can assure you the best prices and quality to support you open more market in your country!
We warmly welcome your inquiry!
3. Corporate Philosophy:
Credibility: This is an EQ time, and business needs and relies on credibility.
Service: The right things should be done well and the good things right.
Tenet: Quality is vitality! Sunshine Season works for your trust!
4. FAQ
1). Q: What is the material of your products?
A: Iron, Steel, plastic, etc.
2). Q: How about quality control in your factory?
A: "Quality is first, Customers are friends".
SUNSHINE SEASON are always paying great attentions to quality controlling from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
We keep goods to meet the standard of CE, CCC, ISO9001: 2000.
3). Q: How about guarantee?
A: It's within six months after goods is discharged in the destination.
SUNSHINE SEASON INDUSTRY (China) Co., Ltd., a company with its own power products factory and aluminium boat factory in China, our power products are based on the earliest factory in China, is an export-oriented joint-stock enterprise, it integrates engine and generator R&D, production and sale of one. And we also offer many famous brands generators, water pumps & engines, such as Original ELEPAQ, PM&T, TIGER, TIGMAX, SZTIGER, ERMA, SUNSHINE SEASON, etc. Brands, we can assure you the best prices and quality to support you open more market in your country!
Most of SUNSHINE SEASON power products have been approved by CE, EPA, CARB, Canada CSA standard, EII emission standard, GS standard, and ISO 9001: 2000. Products served to EU, North America, Middle East, Afica, Australia, Russia and so on, over 70 countries and regions, especially providing service for global well-known brand.
Meanwhile, we started our marine section from year 2009, we invested and set up our factory in Zhejiang province, mainly produce aluminium boats, also we handle related marine products: Kayaks, fishing tackles, life jackets, outdoors etc., pls kindly check our web to have more infos, now we mainly export to Austrilia, Europe, South America, Russia, Japan and other countries.
Warmly welcome to inquire! We are sure we will have a prosperous cooperation for long run!
