| Prod Model: |
WKV-2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Wkv-2000 |
| Number Of Blade: |
Multiple-Blade |
| Rotating Shaft: |
Vertical |
| Stress Way Of Blade: |
Resistance |
| Power: |
2kw |
| Phase: |
Three Phase |
Product Description

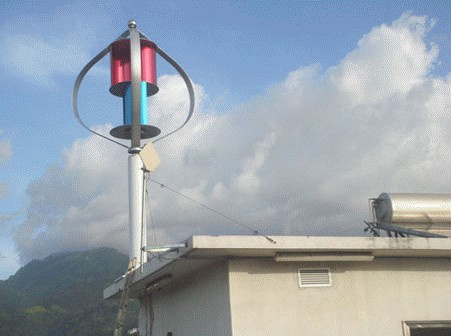

Vertical axis wind turbine
Lowest cut-in wind speed
1 m/s for power production
No noise, no vibrations (sound level
< 25 dB at 7 m/s from 10 m distance)
Adaptable for hybrid solutions
With solar and other sources of energy
Permanent power supply from wind/solar
And continuous battery charging
Technically advanced Maglev generator
No mechanical friction
Best price-performance ratio All weather resistant
(rain, ice, heat, salt, sand)
Independent of wind direction
Suitable for roof fixation
Maintenance-free
Safety for people and nature
| PARAMETER | VERTICAL WIND TURBINE MODEL NUMBER |
| WKV-2000 |
| Rated Power | 2KW |
| Size(Height / Diameter) | 2.5/2.4(M) |
| Blades Material | aluminum alloy |
| Start-up Wind Speed | 1m/s |
| Minimum Power Generation Wind Speed | 2m/s |
| Cut-in wind speed | 3m/s |
| Rated Wind Speed | 13m/s |
| Cut out Wind Speed | 15m/s |
| Survival Wind Speed | 60m/s |
| Generator Type | AC, 3 phases |
| Controller Output Voltage | 48V |
| Controller Braking System | 3-Phase short circuit by NFB brake |
| Ambient Temperature | .-30~50 °C |
Hefei Wind Wing Energy Technology Co., Ltd. is the earliest one of the R & D wind energy generation equipment in China. Our company develops under the support of Chinese Wind Power Association, depends on Chinese Academy of Sciences Institute of Automation the long-term technical guidance and the close cooperation. We take the "the national initiative energy crisis subject" as our development goal. Now we have a strong R&D group, and researched and developed a profession leading WIND AND SOLAR SUPPLEMENT new energy generating system.
People are paying attention to our products, for the features: Green energy, environmental protection, regenerative and natural energy, etc. Our systems have widely applied in so many fields: City view, communication station, military army, science & education, weather department, fishing vessel, irrigation, oil well, seawater desalination, open country inspection, and so on.
As the first domestic enterprise developing the WIND AND SOLAR SUPPLEMENT new energy, we have passed ISO9001: 2000 quality and management system certification and EU CE certification. Our WIND AND SOLAR SUPPLEMENT new energy range systems are faithful and popular in the domestic and foreign clients, becoming the profession leading enterprise.
We always persist in the enterprise culture of "being a creditable person, live a worth while life", we insist on providing vast customers with the first-class goods, the top-notch technology heart and soul. We heartedly wish to intensively co-operate with old and new customers for greeting together with the challenge WIND AND SOLAR SUPPLEMENT new energy spring arrival!
