| Prod Model: |
FY-2KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Number Of Blade: |
Three Blade |
| Stress Way Of Blade: |
Resistance |
| Rotating Shaft: |
Horizontal |
Product Description

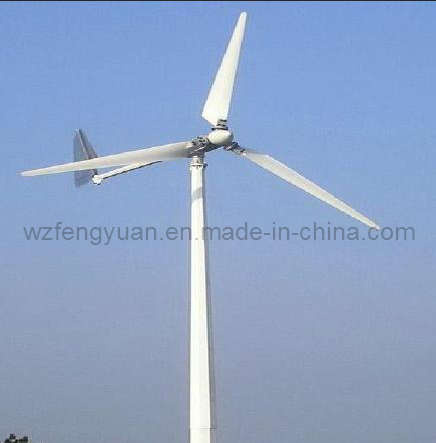

1. Features & Main specification (FY-2000W Wind Turbine)
Start with low wind speed, because we have a breeze to start patented technology, a little fan on the rotating wind power generation by natural factors
High wind energy utilization coefficient, normal wind turbine is 0.25, our wind turbine can reach to 0.4
Gearless, direct drive, low RPM generator.
High standard, quality components for use in harsh and extreme environments for wind turbines.
High efficiency and Low mechanical resistance energy loss.
Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure.
High strength from the specially desy selecign structure and fully heat treatment Spray Aluminum
Generator is designed using speciallted material and treated to resist corrosion and oxidation.
Designed for reliable and long operational lifetime under long-term full output.
|
FY-2000W Technical parameters |
|
|
|
Rated Power (W) |
2000W |
|
|
|
Wind rotor diameter (m) |
3.2 |
|
|
|
Blade material and quantity |
Fiber glass reinforced * 3 |
|
|
|
Rated power / max power (w) |
2000/2500 |
|
|
|
Rated wind speed (m/s) |
9 |
|
|
|
Rated rotate speed (rpm) |
450 |
|
|
|
Working wind speed (m/s) |
3-20 |
|
|
|
Start up wind speed (m/s) |
3 |
|
|
|
Survived wind speed (m/s) |
35 |
|
|
|
Start torque(n/m) |
2.0 |
|
|
|
Max. Power(W) |
3000W |
|
|
|
Working voltage (v) |
DC48V AC220V |
|
|
|
Battery voltage / capcity (v, ah) |
12*4=48 / 200 |
|
|
|
Speed regulation method |
yawing and electromagnetic |
|
|
|
Stop method |
Manual brake and electromagnetic |
|
|
|
Generator style |
Three phase, permanent magnet |
|
|
|
Wind turbine weight (kg) |
90 |
|
|
|
Guyed Cable Tower height / weight (m/kg) |
6/77 |
|
|
|
Free Standing Tower height / weight (m/kg) |
8/358 |
|
|
|
Controller Model |
48V 100AH |
|
|
|
Life |
15-20 years |
|
|
FY-2000w Wind turbine output power curve |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
wind speed m/s |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
|
|
|
|
output power P(w) |
36 |
96 |
204 |
384 |
648 |
972 |
1380 |
1884 |
2220 |
2388 |
2412 |
2358 |
2280 |
2184 |
2070 |
1962 |
1848 |
1704 |
1542 |
1374 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Technologies FY-PMG-2000WA
Electrical Specification
|
Rated output power(KW) |
2000W |
|
Rated Rotation Speed(RPM) |
420 |
|
Recified DC current at Rated Output(A): |
5.5 |
|
Requied Torque at rated power(N/M) |
48.5 |
|
Phase Resistance (Ohm): |
5.0 |
|
Output Wire Square Section(mm2) |
4 |
|
Output Wire Length(mm) |
600 |
|
Insultation: |
H Class |
|
Generator configuration |
3 phase star connected AC output |
|
Design Lifetime |
> 20 years |
Mechanical Specification
|
Weight (KG) |
85 |
|
Starting Torque(NM): |
< 0.9 |
|
Rotor Inertia(Kg. m): |
0.045 |
|
Bearing Type: |
High standard Sweden SKF (Front) Sweden SKF (Rear) |
Specification
|
Shaft |
High standard stainless steel |
|
Shaft Bearing |
High standard SKF or NSK bearing |
|
Outer Frame Material |
Cast iron, and appearance of High standard Aluminium alloy with TF/T6 heat treatment |
|
(TF/T6 full heat treatment for increasing the performance of aluminium alloy as follows. Heat 4-12 hours at 525-545 degrees Celsius, quench with hot water, and precipitation heat treatment for 8-12 hours at 155-175 degrees Celsius. ) |
|
Fasteners(nuts and bolts) |
High standard stainless steel |
|
Windings Temperature Rating |
180 degrees Celsius |
|
Magnet Material |
NdFeB (Neodymium Iron Boron) |
|
Magnets Temperature Rating |
150 degrees Ceisius |
|
Lamination Stack |
High specification cold-rolled steel |
