| Prod Model: |
wkh-3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
3kw |
| Export Markets: |
Global |
| Rotor Blade Diameter: |
5.6m |
| Weight: |
312kg |
| Generator Type: |
AC, 3 Phases |
| Optional Output Voltage: |
DC:48-350V |
| Controller Braking System: |
3-Phase Short Circuit by NFB Brake |
| Operating Temperature: |
-40°c~-60°c |
| Working Wind Speed: |
3-25m/S |
| Blades Material: |
GRP |
| Number Of Blade: |
Multiple-Blade |
| Rotating Shaft: |
Horizontal |
| Stress Way Of Blade: |
Resistance |
| Phase: |
3 |
Product Description

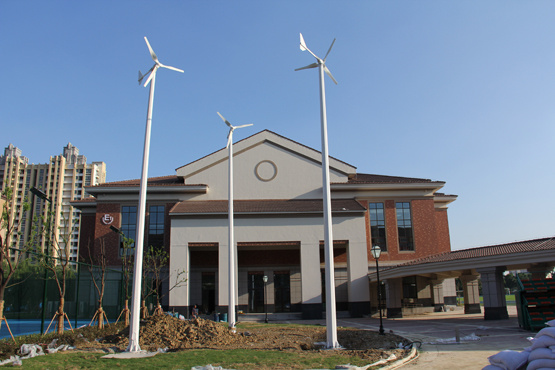

We can supply horizontal axis wind turbine from 100W-20KW. The main feature is as following:
1. CE certificated 2 years warranty 3. Low start wind speed
ParametersModel
WKH-3000
Rated power3KW
Rotor blade diameter4/4.3 (M)
Weight330kg
Blade materialGRP
Start wind speed3m/s
Working wind speed4-25m/s
Rated wind speed10m/s
Security wind speed50m/s
Generator typeAC, 3 phases
Optional output voltageDC:48-350V
Controller Braking System3-Phase short circuit by NFB brake
Maximum power3000W
Operating temperature50°C~-40°C
| Model | WKH-3000 |
| Rated Power | 3KW |
| Max Power | 4000W |
| Start-up Wind Speed | 3m/s |
| Rated Wind Speed | 10m/s |
| Survival Wind Speed | 45m/s |
| Output Voltage | DC:48-350V |
| Working Wind Speed | 3-25m/s |
| Rotor Diameter | 5.6 (M) |
| Material of Blades | GRP |
| Quantity of Blades | 3pcs |
| Generator type | AC, 3 phases |
| Controller Braking System | 3-Phase short circuit by NFB brake |
| Range of Working Temperature | -40ºC-60ºC |
Thanks for your visiting
Hefei Wind Wing Energy Technology Co., Ltd. is the earliest one of the R & D wind energy generation equipment in China. Our company develops under the support of Chinese Wind Power Association, depends on Chinese Academy of Sciences Institute of Automation the long-term technical guidance and the close cooperation. We take the "the national initiative energy crisis subject" as our development goal. Now we have a strong R&D group, and researched and developed a profession leading WIND AND SOLAR SUPPLEMENT new energy generating system.
People are paying attention to our products, for the features: Green energy, environmental protection, regenerative and natural energy, etc. Our systems have widely applied in so many fields: City view, communication station, military army, science & education, weather department, fishing vessel, irrigation, oil well, seawater desalination, open country inspection, and so on.
As the first domestic enterprise developing the WIND AND SOLAR SUPPLEMENT new energy, we have passed ISO9001: 2000 quality and management system certification and EU CE certification. Our WIND AND SOLAR SUPPLEMENT new energy range systems are faithful and popular in the domestic and foreign clients, becoming the profession leading enterprise.
We always persist in the enterprise culture of "being a creditable person, live a worth while life", we insist on providing vast customers with the first-class goods, the top-notch technology heart and soul. We heartedly wish to intensively co-operate with old and new customers for greeting together with the challenge WIND AND SOLAR SUPPLEMENT new energy spring arrival!
