| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
Customize |
| Bearing: |
SKF |
| Shaft: |
Customize |
| Phase: |
Three Phase |
Product Description

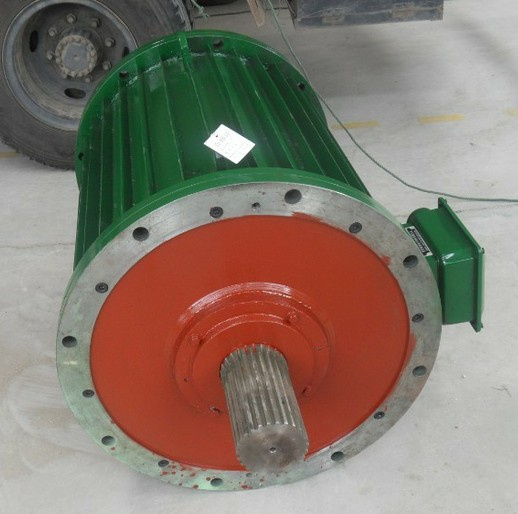

We offer various kinds of permanent magnetic generator from 0.1KW-1500KW(vertical and horizontal), please contact us for more detail informations.
Features of permanent magnet generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme
Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetime
| Description | Power | Speed | Voltage | Rated torque | Insult | Curent | Weight |
| Low speed direct drive permanent magnet generator | 220kw | 100rpm | 690V | 21010Nm | H | 184A | 3600kg |
| 300 | 100rpm | 690V | 28650Nm | H | 251A | 3900kg |
| 500 | 200rpm | 690V | 23880Nm | H | 418A | 3700kg |
| 500 | 350rpm | 690V | 13650Nm | H | 418A | 3500kg |
Xinda Green Energy Co., Limited is specialized in handling the business of vertical and horizontal wind turbine generator, various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, both vertical and horizontal, small hydro turbine system(low head and higher head), wind solar hybrid system, high efficiency high seepd permanent magnet motor, street lamp and so on
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
