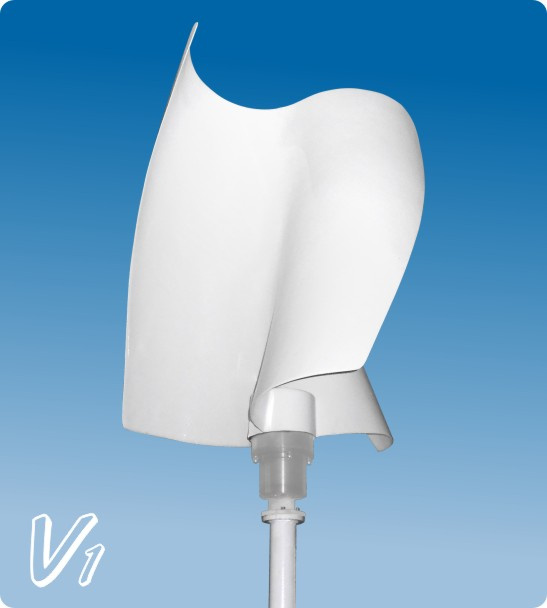

| Prod Model: |
V1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Star-up Wind Speed: |
1.5m/S |
| Rated Rotational Speed: |
250rpm |
| Voltage: |
12V/24V |
| Rotating Shaft: |
Vertical |
| Stress Way Of Blade: |
Resistance |
| Number Of Blade: |
Single Blade |
Product Description
Product advantages:
1.Disk generator, without iron core, low starting torque
2.S type design ,attractive design
3.High strength, corrosion resisting aluminum alloy
4.Low noise
5.High-performance neodymium iron boron permanent magnetic material
6.High moisture , salt fog, dust and sand resistance
7.Superior SKF bearing
Product performance :
1.Low star-up wind speed ONLY 1.5 m/s
2.No restriction to the wind direction
3.Wide range of wind speed usability (1.5m/s-25m/s)
4.Cp value up to 0.4
5.All-over automatic control system
Quality guarantee:
1.Two-year limited guarantee
2.ISO9001 quality management system
3.Operation temperature: -30ºC-65ºC
4.High standard test of corrosion and sand resistance
Easy transportation and installation:
1.Light and compact size
2.Intuitive online installation guides
3.Wide installation and Product performance :
1.Low star-up wind speed ONLY 1.5 m/s
2.No restriction to the wind direction
3.Wide range of wind speed usability (1.5m/s-25m/s)
4.Cp value up to 0.4
5.All-over automatic control system
Quality guarantee:
1.Two-year limited guarantee
2.ISO9001 quality management system
3.Operation temperature: -30ºC-65ºC
4.High standard test of corrosion and sand resistance
Easy transportation and installation:
1.Light and compact size
2.Intuitive online installation guides
3.Wide installation and maintenance network worldwide
4.Perfect after-sales service system maintenance network worldwide
4.Perfect after-sales service system
Technical Specifications:
| Model | V1.8 |
| Rated output power | 300w |
| Max. output power | 350w |
| Rated Voltage | 14.5Vac |
| Rated wind speed | 12m/s |
| Survival wind speed | 65 m/s |
| Start-up wind speed | 1.5m/s |
| Cut-in wind speed | 4 m/s |
| Rated rotational speed | 250rpm |
| Max. rotational speed | 300 rpm |
| No. of blades | 1 |
| Rotor diameter | 0.9 m |
| Blade length | 1m |
| Blade material | FRP |
| Generator | Disk generator |
| Total weight | 25kg |
| Warranty | Whole system-2 years |
| Tower | 8 m (optional) |
Our company--Hopeful Wind Energy founded in 2003, with CE and ISO9001 certification, is a professional design and manufacturer of small wind turbines, have 600W, 1KW, 5KW, 10KW, 20KW, 30KW, 50KW, etc., has our own production workshop and professional engineer. At present, our products are mainly exported to countries in Asia, Europe, and other country. 1KW and 5KW wind turbines is our new model and very hot sell products which have perfect design. We also have 1KW, 5KW(or more)wind/solar hybrid system, according to your specific needs, we'll give you suggestion of suitable wind/solar hybrid system.
