| Prod Model: |
GF24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power (Kw): |
24kw |
| Standby Power Of Output(kVA): |
32.5kVA |
| Rated Current(a): |
43A |
| Weight Of Set(Kg): |
600kg |
| Type Of Engine: |
495d |
| Dimensions Of Set(Mm): |
1650*720*1070mm |
| Electric: |
24V Electric Start |
| Displacement (L): |
3.26L |
| Output Type: |
AC Three Phase |
| Cooling Method: |
Water Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |
Basic or Ast or Ats |
Product Description
Our products have got CE, ISO, CQC. Hengtong has professional sales and after-sales service team for domestic and overseas markets.
The components of the genset:
(1) Weichai Diesel Engine; (2)Hengjiu Stamford Alternator; (3) Control Panel
Technical parameters of diesel generator sets:
Generator Set:

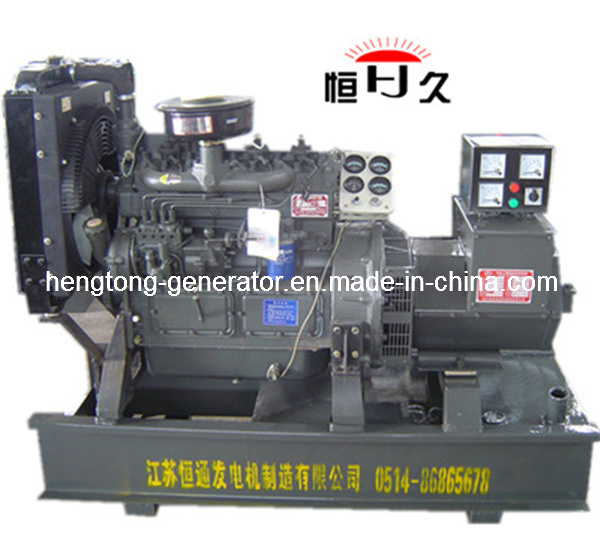

Generator Model: GF24
Prime Power(KW): 24KW
Rated Voltage(V): 400/220V
Frequency(Hz): 50Hz
Power Factor: 0.8(lagging)
Rated Current (A): 43A
Dimension (L× W× H) (mm): 1650*720*1070mm
Genset weight (KG): 600KG
Diesel Engine:
Brand: Weichai
Type: 495D
Power(KW): 26KW
Number of Cylinders: 4
Rotating Speed: 1500RPM
Aspiration: Turbocharged after water-cooled
Bore× Stroke(mm): 95*115mm
Displacement(L): 3.26L
Compression Ratio: 19: 1
Speed Governor: Electrical
Cooling System: Water-cooled
Fuel Consumption at 100% Load: ≤ 258g/kwh
Starting Method: 24V Electrical starting
Alternator:
Brand: Hengjiu Stamford Brushless
Model: HJI20
Rated Voltage(V): 120V-600V
Rated Volumn(kVA): 25kVA
Rated Power(KW): 20KW
Connecting Type: 3hase and 4 Wires
Frequency: 50/ 60Hz 3000RPM/3600RPM
Number of Bearing: Single/Double
Protection Grade: IP23/IP44
Altitude: Within the limits of 1000m, temperature of 40ºC or OEM
Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating
Insulation Class: H/F
Telephone Influence Factor (TIF): 50
THF: <2%
Voltage Regulation, Steady State: ≤ ± 0.5%
Transient State Voltage: ≤ -15%~+20%
NOTES. Powerful Robust and Universal Brushless Alternator, technology authorized by Shanghai Stamford with 100% Copper Wires and 100% Rated Power Guarantee.
The parameters listed above are for reference only and should not be taken as the basis for orders.
Test before shippment
1, Each Generator Set shall be put into commission more than 4 hours totally, tested on idleload, fully load and 10% overload.
2, Noise level shall be tested.
3, All of the meters on the control panel shall be tested.
4, The appearance of the Set and the label, nameplate shall be tested. "
Voltage available: 50Hz: 380-400-415V/ 220-230-240V; 60Hz: 220-380-416-440-480V/ 110-208-220-240V. Any special voltage is also available as cilent's request.
Packing & Warranty
Packing: Wooden, Plywood or Metal Case.
Delivery Time: Less than 25 working days after receiving prepayment.
Warranty: One year or 1, 000 hours from the date of shippment
(15 Months or 1, 200 hours for Alternator Part).
Our warranty standard is higher than most manufacturers for about 25%, because we are confident in our strict test and quality management during each step of manufacture.
Control System:
Basic control system, the basic type control system is provided with a current meter, a volmeter, a frequency meter, an oil pressure guage, a water thermometer and indicator lights on the control cabinet and 4 additional protection fuctions are to be provided as required by customers.
Optional AST & ATS Control System:
AST (Automatic Start Type Control System), Optional Automatic Start Type System is provided with a 101A control module or a DACT704 module with LCD display. When there is an interruption in the commercial power supply (or there is a start signal in other generator sets), this generator set will, subject to time delay acknowledgement (0-30 S adjustable), be automatically started (1-8 times adjustable). In addition, it is provided with a basic protection function and digital or meter indication of voltage, current, frequency and rotation speed parameters.
ATS (Automatic Transfer System), The optional system is provided with a fully automatic transfer switch, a control electric apparatus and an indicator light on the control panel and is coordinated with an automatic type contral cabinet, thus serving the fuction of automatic changeover between the power supplied by the grid and the power generated by the genset.
|
Parameters of Hengjiu Weichai Diesel Generator Set |
|
Type of set |
Parameters of set(400V-3-phase4-line 50Hz COSΦ0.8) |
|
Power of output(KW/KVA) |
Rated current(A) |
Weight of set(Kg) |
Dimensions of set(mm) |
|
Main |
Standby |
Length |
Width |
Height |
|
GF24 |
24/30 |
26/32.5 |
43 |
600 |
1650 |
720 |
1070 |
|
GF30 |
/ |
30/37.5 |
54 |
650 |
1680 |
720 |
1070 |
|
GF30 |
30/37.5 |
33/41.2 |
54 |
690 |
1680 |
720 |
1070 |
|
GF40 |
/ |
40/50 |
72 |
800 |
2000 |
780 |
1270 |
|
GF40 |
/ |
40/50 |
72 |
800 |
2000 |
780 |
1270 |
|
GF50 |
50/62.5 |
55/68.8 |
90 |
850 |
2000 |
780 |
1300 |
|
GF50 |
50/62.5 |
55/68.8 |
90 |
850 |
2000 |
780 |
1300 |
|
GF60 |
60/75 |
66/82.5 |
108 |
950 |
2000 |
800 |
1550 |
|
GF75 |
75/93.8 |
84/105 |
135 |
1100 |
2200 |
780 |
1460 |
|
GF100 |
100/125 |
110/137.5 |
181 |
1200 |
2350 |
800 |
1500 |
|
GF120 |
120/150 |
132/165 |
217 |
1300 |
2400 |
800 |
1500 |
|
GF150 |
/ |
150/187.5 |
270 |
1700 |
2800 |
1000 |
1500 |
|
Parameters of engine(1500RPM 24V Electric start) |
|
Type of set |
Type |
Power(KW) |
Cylinders |
Bore × stroke (mm) |
Compression ratio |
Displacement(L) |
Consumption of fuel(100% load g/kwh) |
|
GF24 |
495D |
26 |
4 |
95*115 |
19.0:1 |
3.26 |
≤258 |
|
GF30 |
K4100D |
30 |
4 |
100*115 |
19.0:1 |
3.61 |
≤258 |
|
GF30 |
K4102D |
33 |
4 |
102*115 |
19.0:1 |
3.76 |
≤258 |
|
GF40 |
R4105D |
42 |
4 |
105*125 |
17.0:1 |
4.23 |
≤231 |
|
GF40 |
4100ZD |
42 |
4 |
100*115 |
17.0:1 |
3.62 |
≤258 |
|
GF50 |
R4105ZD |
56 |
4 |
105*125 |
16.0:1 |
4.33 |
≤231 |
|
GF50 |
R4110D |
53 |
4 |
110*135 |
17.0:1 |
5.13 |
≤231 |
|
GF60 |
R4110IZLD |
66 |
4 |
110*135 |
17.0:1 |
5.13 |
≤231 |
|
GF75 |
R6105ZD |
84 |
6 |
105*125 |
16.0:1 |
6.49 |
≤224 |
|
GF100 |
6105AZLD |
110 |
6 |
105*130 |
16.0:1 |
6.75 |
≤218 |
|
GF120 |
6105IZLD |
132 |
6 |
105*135 |
16.0:1 |
7.01 |
≤218 |
|
GF150 |
6113ZLD |
155 |
6 |
113*125 |
17.0:1 |
7.518 |
≤218 |
|
The parameters listed above are for reference only and should not be taken as the basis for orders. |
Jiangsu Hengtong Generator Manufacture Co., Ltd.Is located in Yangzhou city, (3 hours distance by car from Shanghai) which is established in 1986.As a manufacturer, we offer quality Brushless Alternator and Generator Set for Domestic and Overseas Market for more than 20 years.Up to now the total area of factories and offices is almost to 80, 000 M2 and 180 staffs work in our company.
Hengtong started the research and manufacture of 6.5-1760KW brushless AC Synchronous Alternator at 2004 and we've already developed the annual production to 10, 000 sets.Hengtong also produces quality Generator Sets with world class diesel engine such as Cummins, Volvo, Perkins, Daewoo, Styer, Deutz, Shangchai, Wudong, Paou, Jichai, Weichai and so on.Because of stronger research and engineers' hard working, Our Generator sets are applicable as normal and backup power source to communication project, oil industry, airport, air defense, highway and real estate industry.
Our brand "Hengjiu" has been awarded as a Yangzhou famous brand at 2006 which encourages all Hengtong people to offer a better service for our worldwide customers.
For advantaged equipment, standard workshop and high skilled workers, our company has got CE, ISO, CQC, CCS Certificates and other honors.Furthermore, Hengtong has professional sales and after-sales service team for Domestic and Overseas Markets.Under the guidance of the core philosophy "Customer and Service First", Hengtong Generator does provide top quality products and perfect service for all customers.
