| Prod Model: |
GDC38*S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Specialize: |
100% Famous Material |
| Engine: |
Cummins Brand, Perkins, Deutz Is Optional |
| Alternator: |
Stamford, Ennga, Marathon, Copy Stamford |
| Stroke: |
Four Stroke |
| Type: |
Basic Diesel Generator |
| Cooling Method: |
Water Cooling |
| Installation Method: |
Fixed |
| Output Type: |
AC Three Phase |
Product Description

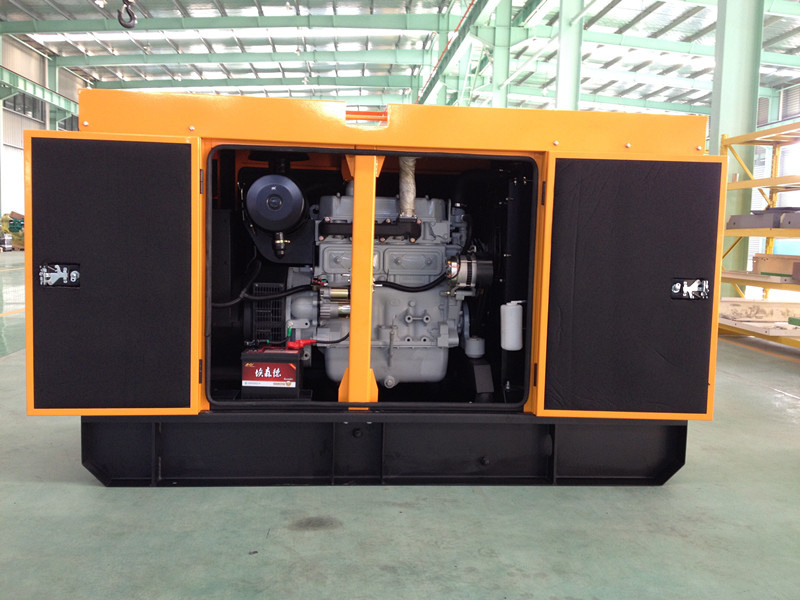

30kw 38kva Cummins Super Silent Diesel Generator (4BT3.9-G2)
Prime Power: 30kw38kva
Standby Power: 33kw/41.5kva
Engine Brand: Cummins
Engine Model: 4BT3.9-G2
Alternator Brand: Copy stamford or Stamford
Alternator Model:JDG184H / PI144J
Frequency: 50Hz
Rated Voltage: 380V/220V (adjustable)
| Power generator/diesel generator /electric generator |
| Technical Data |
| Genset model | GDC38*S |
| Genset output power | 30KW |
| Rated voltage | 400/230V (Adjustable) |
| Frequency | 50 |
| Power Factor | 0.8Lagging |
| Dimension(L*W*H)mm | 1800*740*1200 |
| Net weight(kg) | 860 |
| Diesel Engine |
| Brand | Cummins |
| Model | 4BT3.9-G2 |
| Engine structrue | In line 4 stroke Turbocharged |
| Rotating Speed | 1500rpm |
| Engine cooling Method | water cooled |
| Governor System | Electrical |
| Starting Method | by battery |
| Engine Filter System | Dry type air filter,fuel filter, oil filter |
| Displacement(L) | 3.9 |
| Bore*Stroke(mm) | 102*120 |
| 100%Load full consuption(g/kw.h) | 209 |
| Lube capacity(L) | 11 |
| Alternator |
| Brand | Godlike |
| Model | JDG184H |
| Excite Type | brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady Frequency Change | 0.50% |
| No Load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | H class |
| Protection class | IP22 |
| The components of the genset |
| (1) Diesel engine;(2) Generator;(3) Control panel. |
Contact: Ms Vicki Yuan
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
