| Prod Model: |
350GFW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gen-Set Model: |
350gfw |
| Rated Power (Kw): |
350 |
| Rated Voltage (V): |
400 |
| Rated Current (a): |
631 |
| Rated Frequency (Hz): |
50/60 |
| Bore X Stroke (Mm): |
300 X 380 |
| Cylinder No.: |
6 |
| Set Size(Mm) (Lxwxh): |
5800 X 2058 X 2900 |
| Set Net Weight (Kg): |
18000 |
| Gas Source: |
Coal Gas |
Product Description

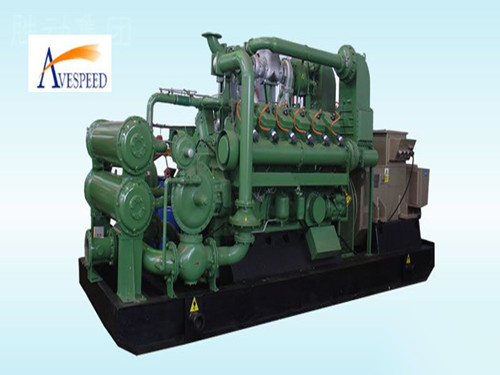

350KW reliable operation coal gas engine(350GFW)
The coal gas engine brief:
300 series coal gas engines are driven by coal gas, firewood gas, blast furnace gas and coke-oven gas and so on. Nowadays in the use of one-off energy sources in the world, one obvious trend is developed that more combustible gas used than coal and oil gradually. That's because the pollution of coal and oil is seriously, and also the transport quantity is larger. For instance, the 80% of CO2 of cities come from the combustion of petrol products, and the main causation of greenhouse effect is the increase of CO2. Our country possesses abundant coal gas resources, and all the gas resources can be used by 300 series coal gas engines after it disposal. 300 series coal gas engines hold most widely development space.
According to especial working condition, many modifications have been introduced to improve the performance of the coal gas engine. There are characteristics in advanced performance, such as compact structure, reliable operation, pretty lay out, easy operation and maintenance.
Different types of stationary engine sets are available mainly, with frequency of 50Hz and 60Hz, can satisfy the customer 6.3kv/10.5kv exportation, for them, single power set running and multi-power sets parallel running are both ok.
|
Item |
Technical specification |
|
Gen-set model |
400GFW |
550GFW |
500GFW |
300GFW |
350GFW |
|
Rated power (kw) |
400 |
550 |
500 |
300 |
350 |
|
Rated voltage (v) |
400 |
400 |
400 |
400 |
400 |
|
Rated current (A) |
722 |
992 |
902 |
541 |
631 |
|
Rated frequency (Hz) |
50/60 |
|
Power COS |
0.8 (Lagging) |
|
Mode of excitation |
Brushless |
|
Phase & Connection |
3 phases 4 wires |
|
Type of the engine |
8300D/W |
8300D/W-1 |
8300D/W-2 |
6300D/W |
6300D/W-1 |
|
Model |
4 cycle,Line type,Spark Plug lgnition |
|
Cylinder No. |
8 |
6 |
|
Bore x Stroke (mm) |
300 x 380 |
|
Displacement (L) |
215 |
161 |
|
Rated speed (rpm) |
500 |
600 |
500 |
500 |
600 |
|
Rated power (kw) |
440 |
600 |
550 |
330 |
385 |
|
Mean piston speed (m/s) |
6.33 |
7.6 |
6.33 |
6.33 |
7.6 |
|
Gas consumption in full load (heat equivalent 4000-6000kJ/m 3 ) |
406-754 |
555-1028 |
507-942 |
304-565 |
355-660
|
|
Mean effective pressure (MPa) |
0.491 |
0.558 |
0.614 |
0.491 |
0.478 |
|
Compression ratio |
9:1 |
|
Rotating direction (seen from flywheel end) |
Clockwise |
|
Firing order |
1-5-7-3-8-4-2-6 |
1-5-3-6-2-4 |
|
Starting system |
Starting by compressed air |
|
Top explosive pressure (MPa) |
≤5.5 |
|
Exhaust temperature of cylinder (degree) |
≤600 |
|
Temperature of gas (degree) |
≤40 |
|
Gas pressure (kPa) |
2.5 |
|
Lubricating oil consumption rated (g/kW.h) |
<1 |
|
Set size(mm) (LxWxH) |
6394 x 2058 x 2900 |
5800 x 2058 x 2900 |
|
Set net weight (kg) |
22000 |
18000 |
Beijing Avespeed Commercial & Trading Co., Limited is the leading manufacturer and supplier of diesel engines for marine propulsion, marine Gen-sets, stationery Gen-sets and power plant applications in China. AVESPEED manufactures diesel engines with unit output from 150KW to 4500KW, which can be used as propulsion of merchant vessels and special vessels from 1000 to 30000 tons DWT. AVESPEED manufactures marine auxiliary diesel generators with unit output from 150KW to 4500KW and stationery HFO generators with unit output from 500KW to 8000KW.
AVESPEED designs and builds turn-key power plant with an output up to 100MW as base load power plant, peaking power plant or industrial self-captive power plant in cement, textile, mining or oil and gas industries etc. The power fuel can be diesel oil, bio-diesel, heavy fuel oil (HFO) or bi-fuel. AVESPEED has been set up more than 200 heavy fuel oil (HFO) power plant projects in the world in recent years, especially in Nigeria, we have set up more than 60 HFO power plant projects there.
All of our marine diesel engines have achieved type approvals and work test approvals of, CCS, China Ships Inspection Bureau, and China Fishing Ships Inspection Bureau. Many products are rated as "National Grade New Products" and "Industry Brand Products" and awarded with "National Prize for Progress in Science and Technology", Now AVESPEED diesel engines are widely used for deep sea fishery, inshore fishing ships, ocean shipping, inland water navigation, passenger cargo ship transport, harbor tug, engineering ships, enforcement ships, naval auxiliaries etc.
New energy products developed in recent years including natural gas generator sets, biomass generator sets, tyre oil/vegetable generator sets and dual-fuel generator sets with unit output from 50KW to 1000KW.
AVESPEED also involves in the development and manufacture of the crystal silicon (mono and poly) solar panel/module, photovoltaic system, and other photovoltaic products. We supply solar panels ranging from 45W to 290W. AVESPEED's on-grid and off-grid inverters are the sole in China certified by TUV. The PV inverters range from 1KW to 1000KW.
Our products and manufacturing processes fully comply with product safety requirements, including TUV/IEC61215 & 61730, CSA/UL1703, MCS, CE and UKAS. Additionally, we have implemented best practices to protect the environment and conserve energy.
So far, our customers spread dozens of countries and regions in Europe, Middle East, Africa, South America, Southeast Asia and West Asia. AVESPEED is willing to cooperate with relevant famous enterprises and far-sighted, strong-willed and talented people at home and abroad by supplying our high-quality products and excellent service.
