| Prod Model: |
GHBH 004 34 1R7 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Silvery/Golden |
| Insulation Class: |
F |
| Protection Level: |
IP54 |
| Noise: |
72 dB |
| Gross Weight: |
29 Kg |
| Application: |
Dental Vacuum Systems |
| Frequency: |
50/60Hz |
| Voltage: |
220V/380V |
| Material: |
Aluminum |
| Usage: |
Dental Equipment |
| Pressure: |
High Pressure |
| Certification: |
CCC |
| Flow Direction: |
Side Channel Pump |
Product Description

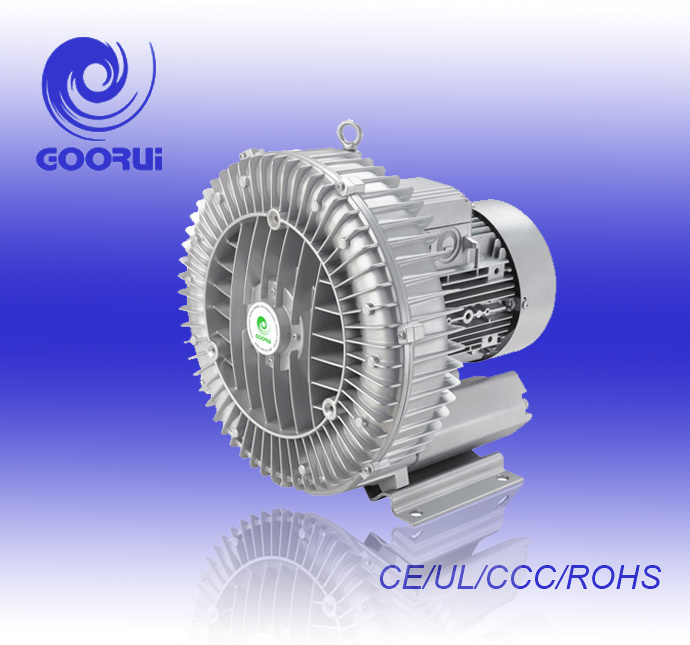

Goorui Blowing and Suction High Pressure Side
Product Details:
GHBH 003 34 1R7
Brand Name: Goorui
Power Source: Electric Blower
Pressure: High Pressure
Frequency: 50/60 Hz
Rated Power: 2.2Kw
Rated Voltage: 200-240V/345-415V
Weight: 29 Kg
Sound: 69dB
Max Airflow: 318m3/h
Rated Vacuum: -210mbar
Rated Pressure: 200mbar
Stage: Single
Phase: 3
Color: Golden/Silvery
Delivery: 5-15 days after order confirmed
Specifications
1. Dual-usage: Compressor and Vacuum (suction and blow).
2. Precision machined
3. Consistent dimensional accuracy
4. High quality manufacturing procedures
5. Compact installation
6. Low noise and vibration.
7. NSK/SKF bearing
8.100% Oil-free and Maintenance-free
9. Corrosion-proof
10. IP54
11. ADC 12
12. CE/SGS/RoHS/ISO9001: 2008
Applications:
Dental vacuum
Drying out buildings
Fishpond ventilation
Food & Beverage
Gas analysis
Industrial vacuum cleaners/ central extraction systems
Laser printers
Letter sorting/ enveloping
Packaging
Printing & Paper
Pneumatic conveying
Soil treatment
Swimming pool technology/ jacuzzis
Textile
Thermoforming
Ventilation of sewage treatment plants
Awards:
In 2007 Chinese Trademark Certificate & Dongguan Energy-saving Association's Standing Council Member
In 2008 German Trademark Certificate & Guangdong Province High-technology Private Company
In 2011 Dongguan City Patent Foster Company
| Model | Phase | Stage | Frequency | Power | Voltage | Current |
Rated
Air Flow | Rated Static Pressure | Rated Static Pressure | Noise | Weight |
| Hz | KW | V | A | m3/h | Vacuum | Compressor | dB | Kg |
| GHBH 003 34 1R7 | 3 | 1 | 50 | 2.2 | 220-240V/Y345-415V | 10.0/Y5.6 | 318 | -210mbar | 200mbar | 69 | 29 |
| 60 | 2.55 | 220-275V/Y380-480V | 10.30/Y6.50 | 376 | -210mbar | 200mbar | 72 | 29 |
Dongguan Foersheng Mechanical &Electrical Technology Company Limited (FLS) is one of the world's leading side channel blower manufacturer with over 10 years experience in blower and motors R&D, producing, marketing and after sales service.
FLS has own a manufactory center in Dongguan City and sales subsidiaries in 4 cities, Dongguan, Shanghai, Chengdu and Qingdao. Its sales network covers over 20 countries worldwide, including Asia, Europe, Africa and American, etc.
Our service includes
1. Supply & manufacture of side channel blower (ring blower/regenerative blower), air flow capabilities range from 60 to 2550 m3/h, vacuum capabilities 60 to 1000mbar. Supply & manufacture of explosion proof blowers and bare shaft (belt drive style ) blower.
2. On site performance testing of side channel blowers.
3. Also supply accessories (silencer, pressure relief valve, filter, filter barrels), frequency inventor, liquid ring vacuum pump. etc.
Our Blower features are:
1.100% oil free air delivery
2. No routine maintenance
3. Quiet operation, low noise
4. Versatile /ATEX /IE motor options
5. CE, UL, CCC, RoHS, ISO9001
6. Insulation class: F, Protection class: IP54
Industries application:
1. Agriculture(Fish pond and aeration tanks)
2. Food and vegetable processing
3. Dental cart and dental vacuum
4. Air knives blown-off / Labeling/Drying
5. Air knives blown-off/ Bottle blow mould / Extruder Degassing/Pneumatic conveying/ Thermoforming)
6. Printing/CNC table material holding
7. Paper and pulp/ paper converting
8. Textile industry
9. Pneumatic conveying/ Biogas conveying /material handling
10. Water treatment/Sewage treatment
11. Woodworking(CNC Routing/bulk handling)
