| Prod Model: |
NL-3KL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
3kw |
| Start Wind: |
3.5m/S |
| Rated Wind: |
10m/S |
| Safety Wind: |
35m/S |
| Rated Rotating Speed: |
300rpm |
| Leaf Material: |
Nylon Fiber or FRP Strengthening |
| Resistance Torque: |
Low |
| Vibration: |
Low |
| Output: |
High |
| Surface: |
Corrosion Protection |
| Rotating Shaft: |
Horizontal |
| Number Of Blade: |
Three Blade |
| Stress Way Of Blade: |
Resistance |
Product Description

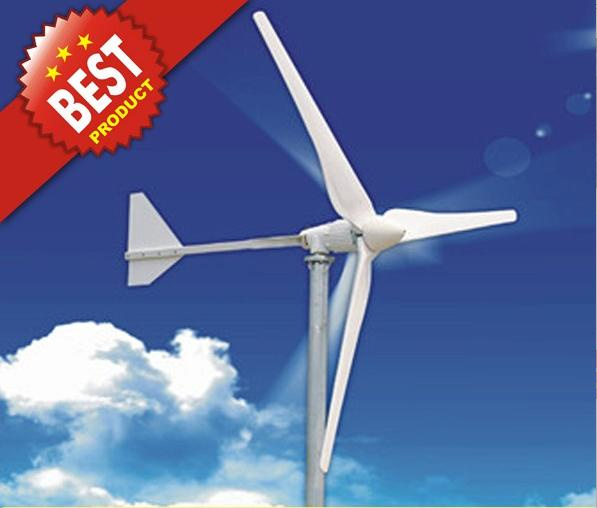

Wind Power Generator
1. Start in breeze 3m/s
2. High efficient output
3. CE ISO
Products Range: 100W~2mW
(1). Dual, automatic emergency braking system
(2). Sealed Sweden SKF bearing
(3). Waterproofing
(4). Unique Anti-Vibration design
(5). Efficient Aero-dynamic design
(6). High strength, corrosion resisting aluminium alloy
(7). Unique neodymium iron boron permanent magnetic material
(8). Low noise level
Products Range: 100W~2mW
(1). Dual, automatic emergency braking system
(2). Sealed Sweden SKF bearing
(3). Waterproofing
(4). Unique Anti-Vibration design
(5). Efficient Aero-dynamic design
(6). High strength, corrosion resisting aluminium alloy
(7). Unique neodymium iron boron permanent magnetic material
(8). Low noise level
Technical parameters Wind Power Generation
|
Model |
NL-1KL |
NL-3KL |
NL-5KL |
NL-10KL |
|
Rated power |
1000W |
3000W |
5000W |
10kW |
|
Maximum power |
1500W |
4800W |
7000W |
12kW |
|
Rated power |
48V |
120V |
220V |
240V |
|
Started wind |
3.5 m/s |
3.5 m/s |
3.5 m/s |
3.5m/s |
|
Rated wind |
10 m/s |
11 m/s |
11 m/s |
11m/s |
|
Rated revolution |
400 r/m |
300 r/m |
200 r/m |
180r/m |
|
Safety wind |
35 m/s |
35 m/s |
45 m/s |
45m/s |
|
Host net weight |
16 kg |
35 kg |
80kg |
115kg |
|
Size (stator H x stator φx Shaft L) mm |
185*190*139 |
220*320*180 |
285*340*233 |
320*360*283 |
|
Tower height |
6 m |
9 m |
12 m |
12m |
|
Blade number |
3 pcs |
|
Blade material |
Nylon fiber /FRP strengthening |
|
Generator |
Three-phase ac permanent magnet synchronous generator |
|
Speed adjustment |
Automatically adjust the windward Angle |
|
Control System |
Electromagnetic / wind round lateralization |
|
Temperature |
-40°C-80°C |
|
Lubrication |
Lubricating |
Shanghai Noulei Automation Equipment Company Limited mainly produces wind turbines, with engraving machine and injection machine as extension product.
Our company owns professional engineers, advanced equipment and testing facilities and after service systems.
Our products occupy the domestic market and are exported to the United States, France, Canada, Norway, Australia and so on, which are well received and popular among these countries.
The wind turbine R&D has a complete independent power supply system in any weather conditions with protective system, simple operation and easy maintenance.
