| Prod Model: |
SR178F/E, SR186FS/E, SR170FE, SR186FA/FS, SR188FA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sr170: |
4HP |
| Sr178fs/Fe: |
6HP |
| Sr186fs/Fe: |
9HP |
| Sr188fa/Fs: |
10HP |
| Fuel: |
Diesel Engine |
| Intake Pressure Impulse: |
Direct Inject |
Product Description
Low speed 1500rpm/1800rpm diesel engine
The engine assembled with different shaft. Good lubricate. It's a usage for farming. It can be assembled with water pump, glass cutter, sprayer and other farm combination machine. Stabel and permanent operation with lower fuel comsumption and lower displacement. It becomes a environment protection commodity for customers around the whole world and it receives a good reputation in machining market.
| SR178FS/E |
| Model no | SR178FS/E |
| Engine type | Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine |
| Bore x stroke [mm] | 78x62 |
|
| Displacement [ml] | 296 |
|
| Engine speed [rpm] | 1500/1800 |
|
| Compression ratio | 20: 01 |
|
| Rated output power [KW (Hp)] | 3.7 (5.03)/3000 |
|
| Rated output power [KW (Hp)] | 4.0 (5.44)/3600 |
|
| Fuel | 0# or - 10# light diesel oil |
|
| Fuel tank volume [L (gal. )] | 3.5 (0.77) |
|
| Fuel consumption rate [g(ml)/KW. h] | 83 (337) |
|
| Lubrication oil volume [L (gal. )] | 1.1 (0.24) |
|
| Power-Take-Off | Crankshaft |
|
| Starting system | Recoil or electric |
|
| Overall dimension (LxWxH) [mm] | 480x460x520 |
|
| Dry weight [kg (lbs. )] | 33 (72.6) recoil 38 (83.6) electric |
|

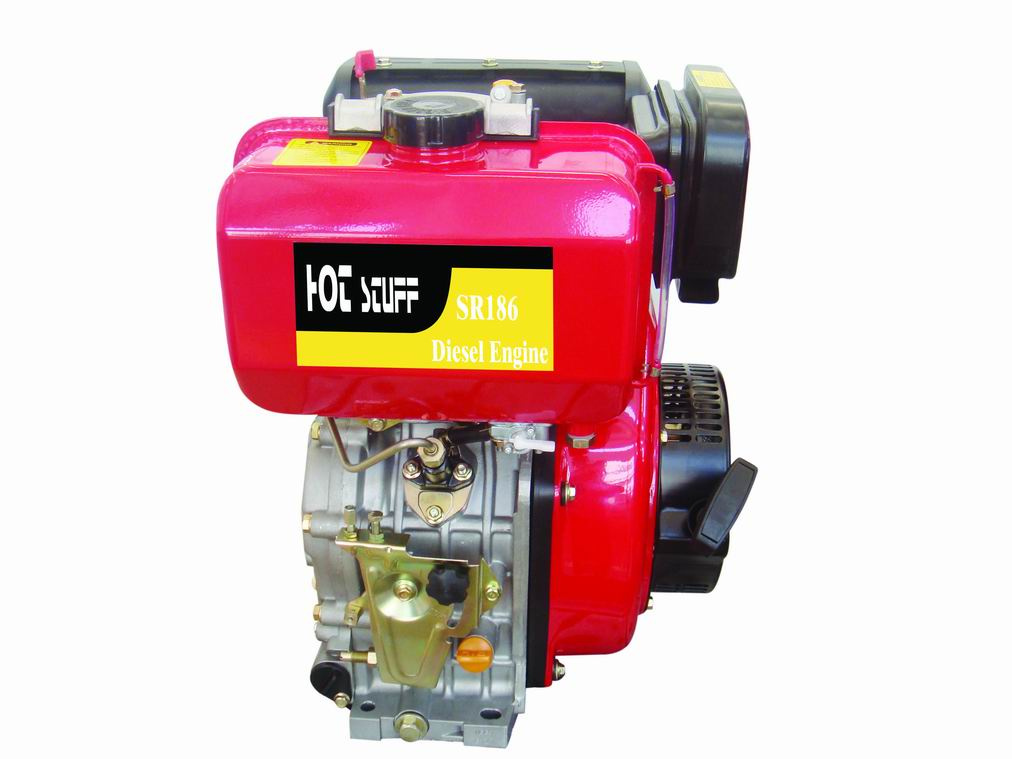

| SR186FS/E |
| Model no: | SR186FS/E |
| Engine type | Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine |
| Bore x stroke [mm] | 86x70 |
|
| Displacement [ml] | 406 |
|
| Engine speed [rpm] | 1500/1800 |
|
| Compression ratio | 19: 01 |
|
| Rated output power [KW (Hp)] | 5.7 (7.75)/3000 |
|
|
| Rated output power [KW (Hp)] | 6.3 (8.57)/3600 |
|
|
| Fuel | 0# or - 10# light diesel oil |
|
| Fuel tank volume [L (gal. )] | 5.5 (1.21) |
|
| Fuel consumption rate [g(ml)/KW. h] | 80 (333) |
|
| Lubrication oil volume [L (gal. )] | 1.65 (0.36) |
|
| Power-Take-Off | Crankshaft |
|
| Starting system | Recoil or electric |
|
| Overall dimension (LxWxH) [mm] | 500x475x555 |
|
| Dry weight [kg (lbs. )] | 48 (105.6) recoil 53 (116.6) electric |
|
| SR186FA | SR188FA | SR188FB | SR178FS | SR186FS | SR188FAS |
|
|
|
|
|
|
|
|
|
|
|
|
| 86 X 72 | 88 X 75 | 90 X75 | 78 X 62 | 86 X 70 | 88 X75 |
| 418 | 456 | 477 | 296 | 411 | 438 |
| 3000/3600 | 3000/3600 | 3000/3600 | 1500/1800 | 1500/1800 | 1500/1800 |
| 6.3/3600 | 7.0/3600 | 7.5/3600 | 3.8/1800 | 6/1800 | 7.0/1800 |
| 5.8/3000 | 6.5/3000 | 6.8/3000 | 3.5/1500 | 5.5/1500 | 6.5 / 1500 |
|
|
|
|
|
|
| 19:01 | 19:01 | 19:01 | 20:01 | 19:01 | 19:01 |
| 5.5 | 5.5 | 5.5 | 3.5 | 5.5 | 5.5 |
| 1.65 | 1.65 | 1.65 | 1.1 | 1.65 | 1.65 |
| 276-286 | 276-286 | 276-286 | 276-286 | 276-286 | 276-286 |
| CRANKSHAFT | CRANKSHAFT | CRANKSHAFT | CAMSHAFT | CAMSHAFT | CAMSHAFT |
| RECOIL or ELECTRIC | RECOIL or ELECTRIC | RECOIL or ELECTRIC | RECOIL or ELECTRIC | RECOIL or ELECTRIC | RECOIL or ELECTRIC |
|
|
|
|
|
|
| 500X460X555 | 500X460X555 | 500X460X555 | 383 X 412 X 450 | 417 X 470 X 494 | 417X441X494 |
| 48 | 50 | 50 | 35 | 48 | 50 |
As a manufacturer, we specialize in producing big water cooled diesel generator from 8KW to 500kw above. Air cooled gasoline/ diesel engine, small air cooled gasoline/diesel generator set, gasoline/diesel water pump sets, concrete cutter, plate compactor, light tower, high pressure washer and so on products. Have about 10 year experience. Punctual delivery, good quality, competitive price.
If you are interested in any our products, pls let me know. We promise to supply you good quality and service you at first time!
Welcome your any enquiry! Hopefully, we can develop best with your cooperation!
