| Prod Model: |
4000W48V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
0.56cbm |
| Phase: |
Single |
| Power Source: |
Electric Power |
| Type: |
Solar Power System |
| Output Power: |
> 4000W |
| Certification: |
SGS |
| Brand: |
Gaia |
Product Description
Features and function:
Pure sine wave output
CPU control technology; SCM control
Strong ability of impact resistance
Have UPS function and AC charger
Wide input voltage range: 145-275V; three step AVR (two step -up, one step -down)
Protection against overload, short-circuit, overvoltage, under-voltage and over-temperature, etc.
Anti reverse connection protection and high-low voltage protection(option)
Special overload protection: when it is overload, it will lock the unit automatically,when it restores,it will restart the unit automatically again.
Strong inverter ability. It can change frequency immediately and it is able to drive the inductive load such as air conditioner, refrigerator, motor, etc.
LCD display
Meet the need of different power supply
Use MOSFET and IGBT
Can choose working mode by yourself
Working Mode Option:
1. The city power priority: when city power is available ,the inverter will work AC output , city power will supply to load ; when have both city power and sun power , inverter will charges 2 kinds power to battery . when city power failed, sun power charges the battery and use battery power(solar power) talk the load .
2. Solar power priority :when it have sun power , sun power charges the battery and take the load , when it does not have sun power , inverter will use battery power take the load , when battery power is lower ,inverter will automatically use ups function to supply power to load and charge the battery
.
The scope of application of solar energy system:

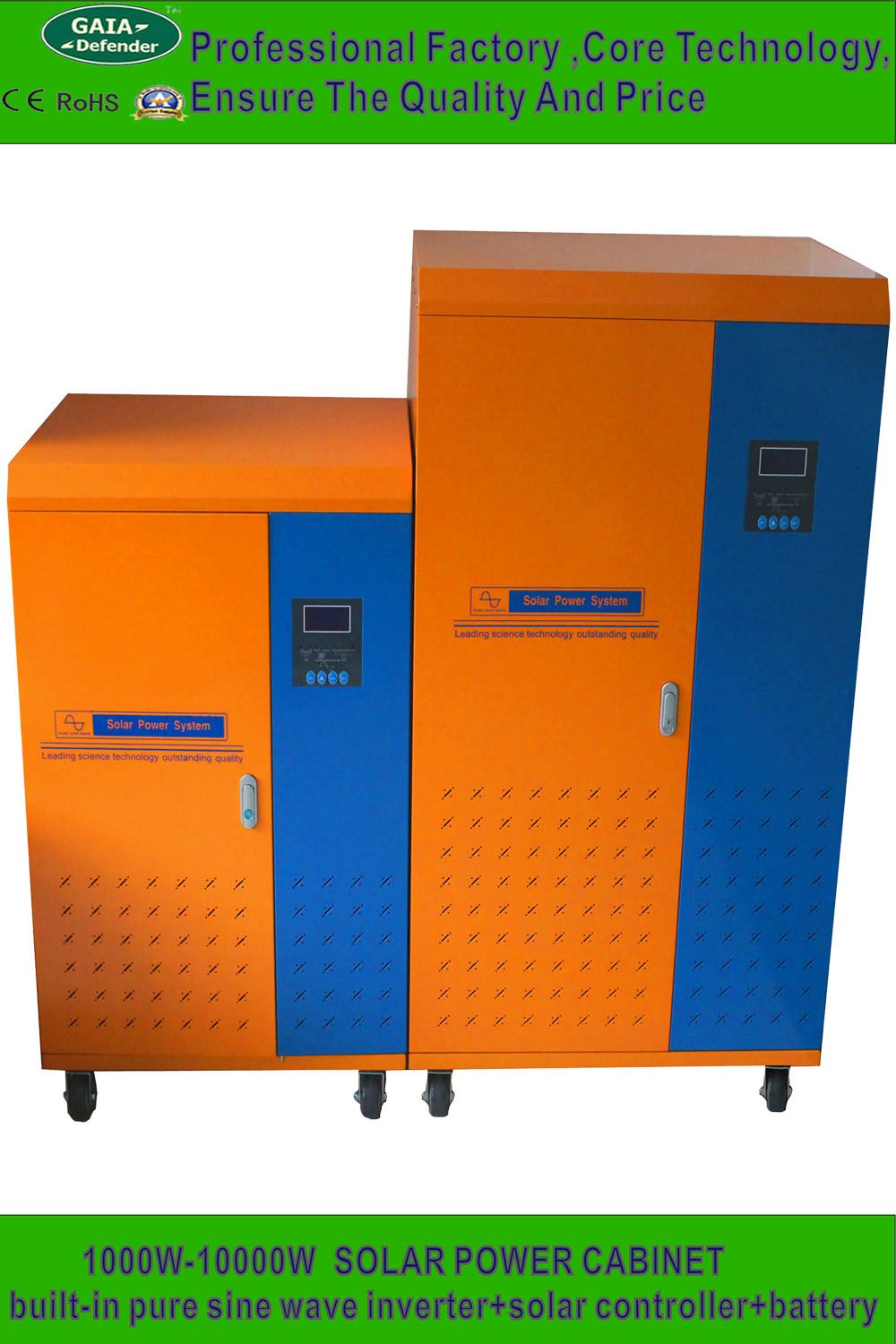

This is a new type of PV system, designed to resolve the problem of power shortage for the families, companies and other places. It is mainly contain case, inverter, solar controller, breaker, fuse, input/output terminal. It can use for light, radio, DVD, TV set, fans, freezer, computers, small hand-drill, and communication equipment. The AC system is widely used in the field of family houses, schools, hospitals, offices, etc.
If you can cooperate with us(Professional manufacturer), you can have:
1.product : two years Warranty
2. Good quality,good service
3.Your client will be satisfied on the right schedule and quality
4. Your can get more orders from your market
5.we will online service 24 hours.
Technical Specifications:
| Model | S4000 |
| Size (L*W*H) | 600*650*1100mm |
| Packing Size (L*W*H) | 630*680*1300mm |
| PWM Controller/MPPT Controller (Optional) |
| Rated DC Voltage | 24V/48V | 48V |
| Rated Current (A) | 30A/50A | 50A/60A |
| Solar Input | Maximum Power(WP) | 720/1200 | 2400/2880 |
| 1440/2400 |
| Nominal Operating Voltage(V) | 36.5/73 | 73 |
| Inverter |
| Rated Capacity | 4000W |
| Input | Commercial Power range(VAC) | 100/110/120/220/230/240(+25%,-35%) |
| Output | AVR voltage range(VAC) | 100/110/120/220/230/240±10% |
| (Auto-sensing) |
| Transfer time | Typical:5ms(Including detection time) |
| Wave from | Pure sine wave |
| Frequency(Hz) | Commercial power supply: shared frequency with the commercial |
| inversion state:60/50±0.5 |
| Voltage(VAC) AC | 100/110/120/220/230/240±2% |
| Over Load Protection | 10 seconds delay shutdown for 120% exceeded |
| Battery | Capacity | 4PCS*200AH |
| DC Voltage | 48VDC |
|
| TYPE | Sealed, maintenance-free lead acid |
| City Power Recharge current | 15A(Maximum) |
| Battery protection | Automatic self-test, discharge protection, over-charge protection, smart management system. |
Ningbo Gaia New Energy Technology Co., Ltd. is a new and high-tech enterprise specialized in power products researching, manufacturing and marketing. We provide products including solar charge controller, grid tie/off- grid inverter, home UPS, solar power box etc., as well as design and supply relevant solar systems. Our products have passed CE RoHS certification as well as other domestic and international authoritative certification. OEM products have passed ETL, VDE, SAA, TUV and SGS certification.
We have sophisticated R&D, manufacturing, commissioning and testing equipment, and implement strict product development, production and marketing quality management systems. With over 10 years of application and design experience in the industry, our professional team of senior experts develop and design superior and high-quality products by integrating their rich and practical experience with advanced technologies. In collaboration with our customers and partners, our products are widely used in China and more than 80 foreign countries and regions, and have been extensively applied and highly appraised in a number of major projects at home and abroad.
