| Prod Model: |
NB |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East,Western Europe |
| Output Type: |
AC Single Phase |
Product Description

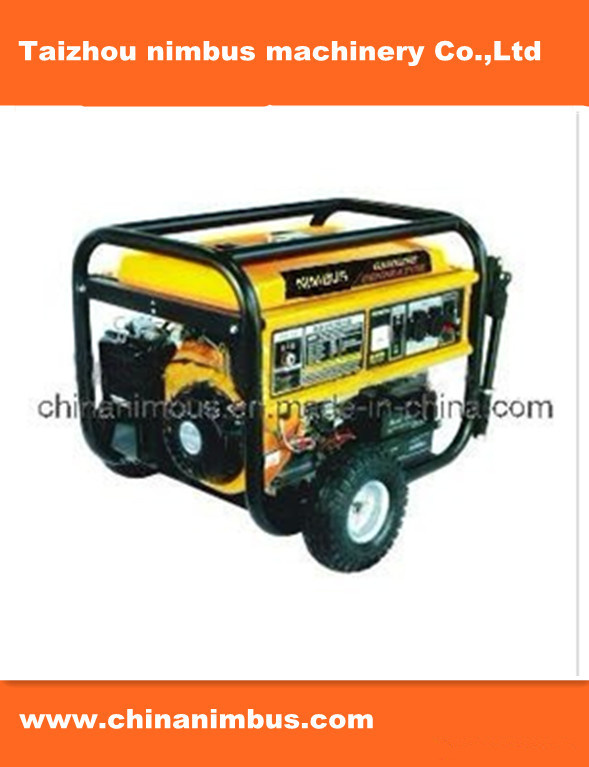

2.0/2.5/3.0/5.0/5.5KW Gasoline Generator
4stroke OHV engine generator
Oil alert system
Stable voltage generator
Recoil/electrict start gasoline generator
2.0/2.5/3.0/5.0/5.5KW Gasoline Generator
- 4 stroke OHV engine with large fuel tank for long hours' running and low fuel comsuption
- Low noise and pollution. Stable voltage and frequency
- Automatic mechanical decompression and transistorized pointless ignition make recoil start easier. Convinient electric starting is also availbale for selected models.
- Oil alert system with automatic engine shut-off.
- Large-capacity mufflers minimize engine noise to make these generator ideal for use anywhere
- Easy-to-use circuit breakers cut the power in event of electrical overload while leaving the main power switch on
| Generator | Rating frequency(Hz) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
| Rating Voltage(V) | 110/120/220/230/240 |
| Rating power(KVA) | 2 | 2.5 | 2.5 | 2.7 | 2.8 | 3.6 | 4 | 4.5 | 5 | 5.5 |
| The Max. power(KVA) | 2.2 | 2.7 | 2.7 | 3 | 3 | 4.2 | 4.8 | 5 | 5.5 | 6 |
| Power factor(cos) | 1 |
| Engine | Type | 168F | 168F-1 | 177F | 182F | 188F |
| Category | Single crock, Force air-cooled four-stroke, top-intalled gasoline engine |
|
|
| Exclusion of cylinder(cm3) | 163 | 196 | 270 | 337 | 389 |
| The Max. output power(KW/rpm) | 4.8/3600 | 5.7/3600 | 7.0/3600 | 8.0/3600 | 9.5/3600 |
| Ignition system | Transistorized magneto |
| Start system | Recoil/E-start |
| Capacity of fuel tank(L) | 15 | 15 | 25 | 25 | 25 |
| Consumption of fuel(L/h) | 1.13 | 1.32 | 1.9 | 2.45 | 2.7 |
| Consecutive Working(h) | 13 | 11 | 13 | 10 | 9 |
| Noise(at7m)(dB) | 65 | 65 | 69 | 72 | 74 |
| Capacity of engine oil | 0.6 | 1.1 |
| Dimension | Set dimension(mm3) | 615× 435× 455 | 615× 435× 455 | 620× 470× 480 | 635× 510× 485 | 670× 510× 510 |
| Net weight(kg) | 39 | 40 | 62 | 78 | 80 |
| Standard Equipment | Large capacity fuel tank, large capacity muffler, fuel gauge, voltmeter, AVR, oil alert, Ac circuit breaker |
|
| Purchasing | Four-wheel dolly kit | Yes |
Taizhou NIMBUS Machinery Co., Ltd. Established in 2005, Which is specialized in gasoline generators, diesel generators, gasoline engine, water pump, chain saw,
Brush cutter, etc.
We have many years experiences in this area. Our company has passed the ISO9001/2000 Quality management Certificate and CE Certificate, Owing the capacity of producing 30, 000 sets per month of several kinds of universal machines. The products are mainly export Germany, Poland, England, France, Bulgaria, Egypt, Nigeria, Angola, Uganda, Kenya, Ethiopia, South Africa, Venezuela, Guatemala, Dominican, India, Nepal, Pakistan, UAE, Malaysia, Iraq, Indonesia, Yemen, Vietnam, Bangladesh, Afghanistan countries etc.
We are looking forward to cooperation with friends from all over the world, And give you best price, best services, best quality. Welcome to visit us and develop long time reationship with our company. We will never let you down.
BRING THE BEST TO THE WORLD
